32 channel Smart Home Automation relay module Controller Domotica Network Remote IP Relay Control Power Distribution box

32 channel Smart Home Automation relay module Controller Domotica Network Remote IP Relay Control Power Distribution box

FOB Reference Price: Get Latest Price

≥1 Sets

US $1280

≥10 Sets

US $1270

≥50 Sets

US $1260

Free Inquiry

Customized Request

Product Details

{{item.text}}

Quick Details

Product Name:: 8 channel relay module

Input channel:: 6

Output channel:: 32

Relay Load (Everyone):: AC250V 25A (Can Be Changed)

Supporting Programmable Control Mode:: CS & BS

Technical Support Mode:: Email, Whatsapp,Teamview

External power supply interface:: DC9V & DC12V

Communication Port:: Ethernet + RS232

Network Control Mode:: TCP (Local) + UDP (Remote)

Provide Control Sample Source Code:: C++, VB, Delphi, Python, iOS, Andorid

Quick Details

Place of Origin:: Zhejiang, China

Brand Name:: KinCony

Model Number:: KC868-I-32

Product Name:: 8 channel relay module

Input channel:: 6

Output channel:: 32

Relay Load (Everyone):: AC250V 25A (Can Be Changed)

Supporting Programmable Control Mode:: CS & BS

Technical Support Mode:: Email, Whatsapp,Teamview

External power supply interface:: DC9V & DC12V

Communication Port:: Ethernet + RS232

Network Control Mode:: TCP (Local) + UDP (Remote)

Provide Control Sample Source Code:: C++, VB, Delphi, Python, iOS, Andorid

32 channel relay module

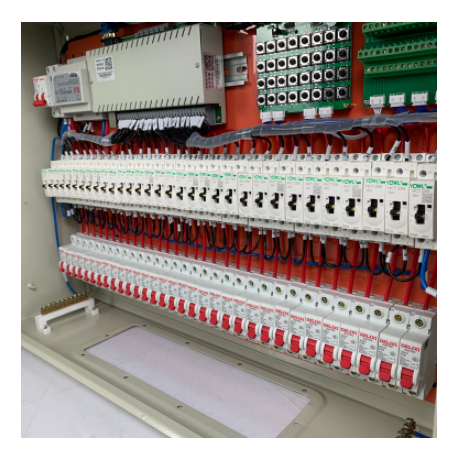

This is main board link for KinCony Smart Power Box .

Because of the large volume, heavy weight and high freight, if you are interested in DIY assembly, we can provide you with electronic components board, you can install them yourself.

Diagram of House Smart Home System Using a Power Distribution Box

Every KC868-Hx's input can remote control every KC868-Hx's output

We can provide customized products according to customers'needs.

You need to tell us the following information:

1. The number of load

2. How many power of each load

3. What box size can be installed.

Then, our technicians will confirm with you and start customizing.

Because of the large volume, heavy weight and high freight, if you are interested in DIY assembly, we can provide you with electronic components, you can install them yourself.

You need to tell us the following information:

1. The number of load

2. How many power of each load

Then, our technicians will confirm with you and calculate product price and freight.

Power Distribution Box DIY Guide: https://www.kincony.com/diy-intelligent-remote-power-switch.html

Power Distribution Box DIY YouTube video on this page: https://youtu.be/nV82j-AleMk

The following are customization cases:

Following KC868-Hx Controller can install for power box:

Function/Model	KC868-H32	KC868-H32W	KC868-H8	KC868-H8W	KC868-H4	KC868-H4W	KC868-H2	KC868-H2W
Output Channel	32	32	8	8	4	4	2	2
Max Load/Channel	AC250V/5A	AC250V/5A	AC250V/10A	AC250V/10A	AC250V/10A	AC250V/10A	AC250V/10A	AC250V/10A
Output Port Type	COM,NO	COM,NO	COM,NO	COM,NO	COM,NO,NC	COM,NO,NC	COM,NO,NC	COM,NO,NC
Input Channel	6	6	8	8	4	4	-	-
Input Signal Type	Dry Contact	Dry Contact	Dry Contact	Dry Contact	Dry Contact	Dry Contact	-	-
Network Interface	Ethernet	WiFi	Ethernet	WiFi	Ethernet	WiFi	Ethernet	WiFi
RS232	●	●	●	●	●	●	●	●
Power Output Port	-	-	DC12V/9V	DC12V/9V	-	-	-	-
Software	PC,APP	PC,APP	PC,APP	PC,APP	PC,APP	PC,APP	PC,APP	PC,APP
Work Mode	WAN/LAN	WAN/LAN	WAN/LAN	WAN/LAN	WAN/LAN	WAN/LAN	WAN/LAN	WAN/LAN
Voice Control (Connect voice module)	Google/Alexa	Google/Alexa	Google/Alexa	Google/Alexa	Google/Alexa	Google/Alexa	Google/Alexa	Google/Alexa
Manual Control (Connect manual keyboard)	Self-Reset Switch	Self-Reset Switch	Self-Reset Switch	Self-Reset Switch	Self-Reset Switch	Self-Reset Switch	Self-Reset Switch	Self-Reset Switch
Open Protocol	●	●	●	●	●	●	●	●
Sample Code For Developing	●	●	●	●	●	●	●	●
Technical Support	●	●	●	●	●	●	●	●
OEM/ODM	●	●	●	●	●	●	●	●
