Quick Details
-
Resolution:
-
5000* 2048 pixels,
-
Material:
-
SS304
-
Waterproof:
-
IP68
-
Load bearing weight:
-
50T
-
Scanner resolution:
-
12000 *6144
-
accessories:
-
PC include
-
Application:
-
outdoor
-
Function:
-
security check
-
Package:
-
wooden box
Quick Details
-
Place of Origin:
-
Guangdong, China
-
Brand Name:
-
Karsun
-
ANPR camera:
-
2.0m pixel
-
Resolution:
-
5000* 2048 pixels,
-
Material:
-
SS304
-
Waterproof:
-
IP68
-
Load bearing weight:
-
50T
-
Scanner resolution:
-
12000 *6144
-
accessories:
-
PC include
-
Application:
-
outdoor
-
Function:
-
security check
-
Package:
-
wooden box

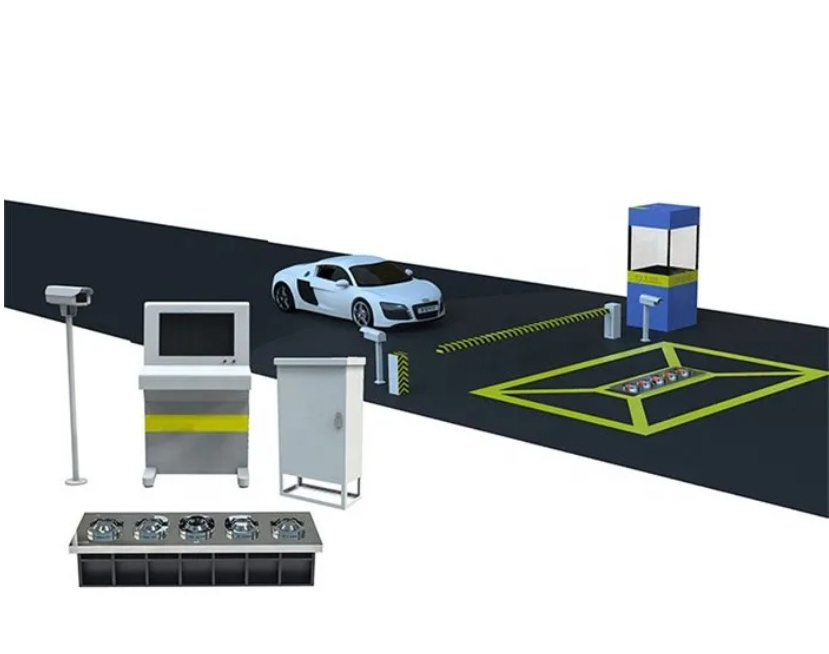

Embedded Under Vehicle Surveillance System
Under Vehicle Surveillance System is the fixed solution for the fully identification
of threats or modifications to a vehicle’s undercarriage. It can quickly and accurately identify threats ,
contraband objects and stowaway who are hidden at the bottom. Vehicles drive over the embedded scanning
units while KARSUN’s systems compile high-resolution images of a vehicle’s undercarriage to create the
vehicle’s “fingerprint." It’s easy to see any threatening objects that may be hidden on top of an axel or
crossbeam. An overview/driver camera captures the normal view of car/driver and displays this on the
high-resolution monitor .
KARSUN adopts embedded installation way. Under Vehicle Surveillance System is
strictly designated on the conception of maintenance free and application in all weather with IP68
water-proof grade. These make sure the system can work steadily in any climate.
adopts advanced digital liner scanning imaging technology, with high image definition and
resolution to ensure the complete image without omission
of threats or modifications to a vehicle’s undercarriage. It can quickly and accurately identify threats ,
contraband objects and stowaway who are hidden at the bottom. Vehicles drive over the embedded scanning
units while KARSUN’s systems compile high-resolution images of a vehicle’s undercarriage to create the
vehicle’s “fingerprint." It’s easy to see any threatening objects that may be hidden on top of an axel or
crossbeam. An overview/driver camera captures the normal view of car/driver and displays this on the
high-resolution monitor .
KARSUN adopts embedded installation way. Under Vehicle Surveillance System is
strictly designated on the conception of maintenance free and application in all weather with IP68
water-proof grade. These make sure the system can work steadily in any climate.
adopts advanced digital liner scanning imaging technology, with high image definition and
resolution to ensure the complete image without omission
Features:
Auto digital line scan, high-resolution undercarriage imaging.
* Decision Response Time: 2-3 seconds (the length of time from when the vehicle clears the scanning3
UNDER VEHICLE SURVEILLANCE SYSTEM
platform until the system automatically identifies the vehicle, automatically searches the under carriage
and displays the decision results on the operator terminal)
* Applicable to variety of vehicles, wide vision :
Max Vehicle Length: 25 meters standard – longer vehicles can be scanned requires setup.
Vehicle Width: 2.75 meters standard – wider vehicles w/optional settings.
Test will be completed during the vehicle maneuvers without stopping, adapted to different speed.
Undercarriage image can be stored, retrieved, searched or compared with other images.
Whole image display ion monitor, can zoom, playback, sign in the images, stretching and cutting, etc
Multi entrance management model, and statistics of entering and exiting vehicles.
Flexible detection process can be made on site to satisfy the needs of various work conditions.
Image monitoring, video recording for different scenario
Auto digital line scan, high-resolution undercarriage imaging.
* Decision Response Time: 2-3 seconds (the length of time from when the vehicle clears the scanning3
UNDER VEHICLE SURVEILLANCE SYSTEM
platform until the system automatically identifies the vehicle, automatically searches the under carriage
and displays the decision results on the operator terminal)
* Applicable to variety of vehicles, wide vision :
Max Vehicle Length: 25 meters standard – longer vehicles can be scanned requires setup.
Vehicle Width: 2.75 meters standard – wider vehicles w/optional settings.
Test will be completed during the vehicle maneuvers without stopping, adapted to different speed.
Undercarriage image can be stored, retrieved, searched or compared with other images.
Whole image display ion monitor, can zoom, playback, sign in the images, stretching and cutting, etc
Multi entrance management model, and statistics of entering and exiting vehicles.
Flexible detection process can be made on site to satisfy the needs of various work conditions.
Image monitoring, video recording for different scenario
Advantage of UVSS:
No need to park vehicle, can bear speed below 30km/h
Time of image display after scan <1s
Image automatic save and automatic delete when hard disk is full
Time of image saving or loading:<1s4
UNDER VEHICLE SURVEILLANCE SYSTEM
2022
Technical Specification :
Embedded Frame :
1) Material : stainless steel
2) Dimension: 1200mm x 350mm
3) Water-proof grade: IP68
4) Load bearing Weight: 50T
5) Image resolution : 12000 *6144
CCD Line Scan Camera :
1). Type: B/W image
2) Resolution: 5000* 2048 pixels,
3) Camera view: > 170° & Pixels size: 14μm*14μm
4) Line rate(max)19kHz & linear array: 28mm
5) ADC Resolution: 12 bit & Responsivity : 41V/uJ/cm2
6) Image : Black/white (color optional)
7) Power Supply: 24VDC, 3A
8) Transfer interface/distance : Gigabit Ethernet/100m
9) Sealed unit to protect against heat, dust, water and vibration
10) Operating Temperature Range: -25 ℃ to +60 ℃
11) Lens: 3.5mm
LED Illumination: LED light for clear image in day and night
1) Power Supply: 24VDC, 320W
2) LED light service life: 50,000 hours
3) Operating Temperature Range: -25 ℃ to +60 ℃
Vehicle Plate Number Capture Camera : Strong Light Inhibition+ Nigh vision, IP67 water proof and antifog
Specification:
1. The imaging element,1/2.8″SONY Exmor , 2.1 Megapixel
2. Resolution: Full HD/1080P(1920x1080) + Full D1
3. Minimum illumination: color：0.05Lux at F1.2 / special light condition：0.001Lux at F1.2
4. Super-WDR: support
5. Compress standard: H.264 Main Profile @ Level 4.1 / Motion JPEG
6. Frame rate: 25 fps
7. Multibit Rate:FHD/1080P + Full D1 + CVBS
8. video flowing: multi H.264 and M-JPEG
9. Support 16:9 display format
10. 3 D Noise Reduction: Reduce every frame image noise so that the image appears more clearly
11. Horizontal resolution : >1000TVL(1920x1080 pixels)
12. 1-30M adjustable IR distance
13. Save: support PC, NVR, TF card
Time of image display after scan <1s
Image automatic save and automatic delete when hard disk is full
Time of image saving or loading:<1s4
UNDER VEHICLE SURVEILLANCE SYSTEM
2022
Technical Specification :
Embedded Frame :
1) Material : stainless steel
2) Dimension: 1200mm x 350mm
3) Water-proof grade: IP68
4) Load bearing Weight: 50T
5) Image resolution : 12000 *6144
CCD Line Scan Camera :
1). Type: B/W image
2) Resolution: 5000* 2048 pixels,
3) Camera view: > 170° & Pixels size: 14μm*14μm
4) Line rate(max)19kHz & linear array: 28mm
5) ADC Resolution: 12 bit & Responsivity : 41V/uJ/cm2
6) Image : Black/white (color optional)
7) Power Supply: 24VDC, 3A
8) Transfer interface/distance : Gigabit Ethernet/100m
9) Sealed unit to protect against heat, dust, water and vibration
10) Operating Temperature Range: -25 ℃ to +60 ℃
11) Lens: 3.5mm
LED Illumination: LED light for clear image in day and night
1) Power Supply: 24VDC, 320W
2) LED light service life: 50,000 hours
3) Operating Temperature Range: -25 ℃ to +60 ℃
Vehicle Plate Number Capture Camera : Strong Light Inhibition+ Nigh vision, IP67 water proof and antifog
Specification:
1. The imaging element,1/2.8″SONY Exmor , 2.1 Megapixel
2. Resolution: Full HD/1080P(1920x1080) + Full D1
3. Minimum illumination: color：0.05Lux at F1.2 / special light condition：0.001Lux at F1.2
4. Super-WDR: support
5. Compress standard: H.264 Main Profile @ Level 4.1 / Motion JPEG
6. Frame rate: 25 fps
7. Multibit Rate:FHD/1080P + Full D1 + CVBS
8. video flowing: multi H.264 and M-JPEG
9. Support 16:9 display format
10. 3 D Noise Reduction: Reduce every frame image noise so that the image appears more clearly
11. Horizontal resolution : >1000TVL(1920x1080 pixels)
12. 1-30M adjustable IR distance
13. Save: support PC, NVR, TF card
