Quick Details
-
Drivers:
-
1x 10 inch woofer / 2 x 1.75" HF
-
Frequency range:
-
60 - 16000 Hz
-
VR10 Power capacity program:
-
350W LF + 250W HF
-
Impedance:
-
16 Ohms
-
Coverage range (h x v):
-
80° oder 120 ° x 10°
-
SPL max / 1 m / peak:
-
133 dB
-
Enclosure Material:
-
birch plywood
-
Driver material:
-
Neodymium driver
-
Finish:
-
Black polyurethane coating
-
Feature:
-
10 inch woofer line array speaker
-
Power:
-
500W
-
Frequency Range (Hz):
-
60 - 16000 Hz
-
Dimension (L x W x H):
-
275X500X355 mm
Quick Details
-
Place of Origin:
-
Guangdong, China
-
Brand Name:
-
Sanway
-
Model Number:
-
VR10
-
Drivers:
-
1x 10 inch woofer / 2 x 1.75" HF
-
Frequency range:
-
60 - 16000 Hz
-
VR10 Power capacity program:
-
350W LF + 250W HF
-
Impedance:
-
16 Ohms
-
Coverage range (h x v):
-
80° oder 120 ° x 10°
-
SPL max / 1 m / peak:
-
133 dB
-
Enclosure Material:
-
birch plywood
-
Driver material:
-
Neodymium driver
-
Finish:
-
Black polyurethane coating
-
Feature:
-
10 inch woofer line array speaker
-
Power:
-
500W
-
Frequency Range (Hz):
-
60 - 16000 Hz
-
Dimension (L x W x H):
-
275X500X355 mm

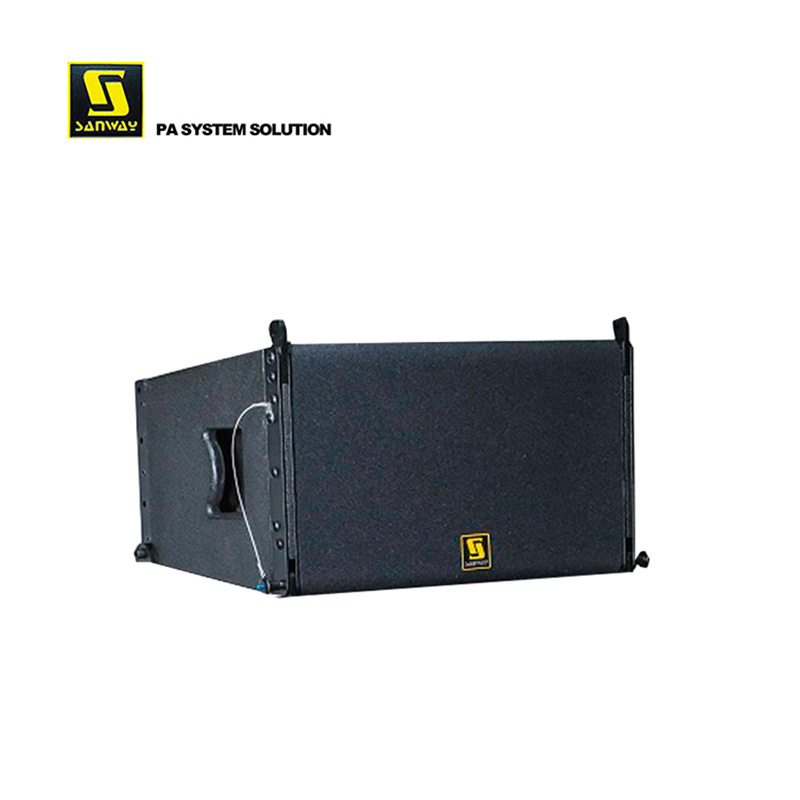

VR10 PA 10 inch Woofer Line Array Speaker Box
Description
The VR10 10 inch woofer line array speaker is equipped with one 10 inch woofer and two 1" high frequency drivers. The horizontal dispersion can be set to 80 or 120 degrees by exchanging the mid-high horn. In the same series, we usually choose VERA S15 or VERA S30 to go with it. With only two tops flown or stacked, it is the ideal starting system for high-quality, small-scale sound solutions.
We also sell this 10 inch woofer for empty speaker box.
Features:
1. Easy to handle, built-in amplifier, no need separate amplifier
2. The mid-high horn with 80° horizontally coverage, developed using WaveFormer, is easy to exchange for a 120° element.
3. Coming with neodymium drivers inside with light weight
4. The power amplifier inside is D3 active module
5. Birch plywood cabinet
6. Superior sound quality
Application
1. Applied to the outdoor show the high quality of amplifiercation.
2. Can also be used to theater, stadium(hall), conference center.
3. Multi-function room or the concert hall, performing arts venues such as fixed installation sound reinforcement applications.
VR10 10 inch woofer speaker specification
|
Model |
VR10 |
|
Drivers |
1 x 10" LF / 2 x 1.75" HF |
|
Frequency range |
60 - 16000 Hz |
|
Power capacity program / peak: |
500 / 1000 W bi-amped LF
|
|
Impedance |
16 Ohms (bi-amp LF)
|
|
Coverage range (h x v) |
80° oder 120 ° x 10° |
|
Sensitivity 1 W / 1 m |
103 dB (bi-amp LF)
|
|
SPL max / 1 m / peak |
133 dB |
|
Dimensions (h x w x d) |
275 x 500 x 355 mm |
|
Net Weight |
16 kg |
|
Finish |
polyurethane coating |
