Quick Details
-
Type:
-
Agricultural products processing machinery
-
Use:
-
Seeds sorting
-
Production Capacity (kg/h):
-
3500 - 7000
-
Power (kW):
-
3.1
-
Weight:
-
1400 KG
-
After-sales Service Provided:
-
Engineers available to service machinery overseas
-
Accuracy:
-
>99.98%
-
Waste:
-
<1:0.125
Quick Details
-
Place of Origin:
-
Anhui, China
-
Brand Name:
-
VSEE
-
Dimension(L*W*H):
-
2325*1590*1840(A)2325*1518*1880(R)
-
Type:
-
Agricultural products processing machinery
-
Use:
-
Seeds sorting
-
Production Capacity (kg/h):
-
3500 - 7000
-
Power (kW):
-
3.1
-
Weight:
-
1400 KG
-
After-sales Service Provided:
-
Engineers available to service machinery overseas
-
Accuracy:
-
>99.98%
-
Waste:
-
<1:0.125
PRODUCT DESCRIPTION
|
Model
|
VSN3000-C6A/ C6R
|
|
Channels
|
384
|
|
Capacity (t/h)
|
3.5~7
|
|
Accuracy
|
>99.98%
|
|
Waste
|
<1:0.125
|
|
Voltage(v)
|
~220v 50Hz
|
|
Power(kw)
|
3.1
|
|
Pressure(MPa)
|
≥0.6
|
|
Consumption(L/min)
|
1800-3500
|
|
Weight(kg)
|
1400
|
|
Dimension(L×W×H)
|
2325×1590×1840(A)
|
|
|
2325×1518×1880(R)
|

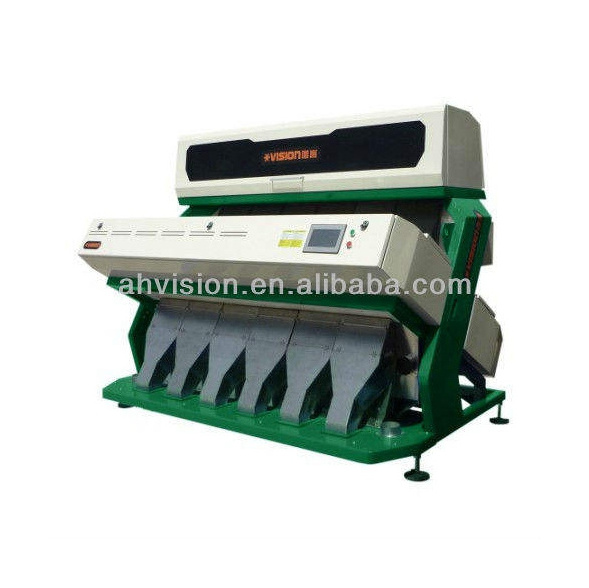

CCD Color Sorter
The color sorter uses 2048 high performances CCD sensors with the definition up to 0.02mm².
The sorter adopts high quality special industrial lenses designed and manufactured for color detection.
The high speed DSP technology provides the sorter with fast detection and high identification rate.
Master control system adopts ARM high-end embeded processor to enhance and control the speed and color selection precision effectively.
Overall unit adopts intelligent closed-loop control system.
The operation interface adopts industrial grade 7-inches TFT touch screen and features simple parameter setting and easy operation.
High speed air valve is used to ensure quick response, low power consumption and long service life.
The sorter uses intelligent temperature and air pressure control technology in order to ensure the best operative mode for the whole machine.
Automatic failure alarm and modular construction make the machine easy to be maintained.
MORE PRODUCTS
ABOUT US
PACKING & TRANSPORT
FAQ
Please provide the following needed information when sending the inquiries:
1. What kinds of material do you want to sort?
2. How much is your throughput?
3. Which country will the machine be used in?
