Quick Details
-
Model Number:
-
12.8V-9AH
-
Battery Size:
-
12.8V
-
Place of Origin:
-
Guangdong, China
-
Weight:
-
1.34KG
-
Product name:
-
12.8v 9ah battery
-
Capacity:
-
9Ah
-
Charge Current:
-
4.5A
-
Max.continuous current:
-
9A
-
Nominal Voltage:
-
12.8v
-
charging cut-off voltage:
-
10V
-
OEM/ODM:
-
Accepatable
-
Cycle life:
-
2500 times
-
Self discharge:
-
less than 3.5% per month at 25℃
-
Internal resistance:
-
70mΩ
Quick Details
-
Anode Material:
-
LFP
-
Application:
-
Golf Carts, SUBMARINES, electric vehicles, Electric Wheelchairs, Electric Power Systems, Uninterruptible Power Supplies
-
Brand Name:
-
JHOTA
-
Model Number:
-
12.8V-9AH
-
Battery Size:
-
12.8V
-
Place of Origin:
-
Guangdong, China
-
Weight:
-
1.34KG
-
Product name:
-
12.8v 9ah battery
-
Capacity:
-
9Ah
-
Charge Current:
-
4.5A
-
Max.continuous current:
-
9A
-
Nominal Voltage:
-
12.8v
-
charging cut-off voltage:
-
10V
-
OEM/ODM:
-
Accepatable
-
Cycle life:
-
2500 times
-
Self discharge:
-
less than 3.5% per month at 25℃
-
Internal resistance:
-
70mΩ
Product Description
|

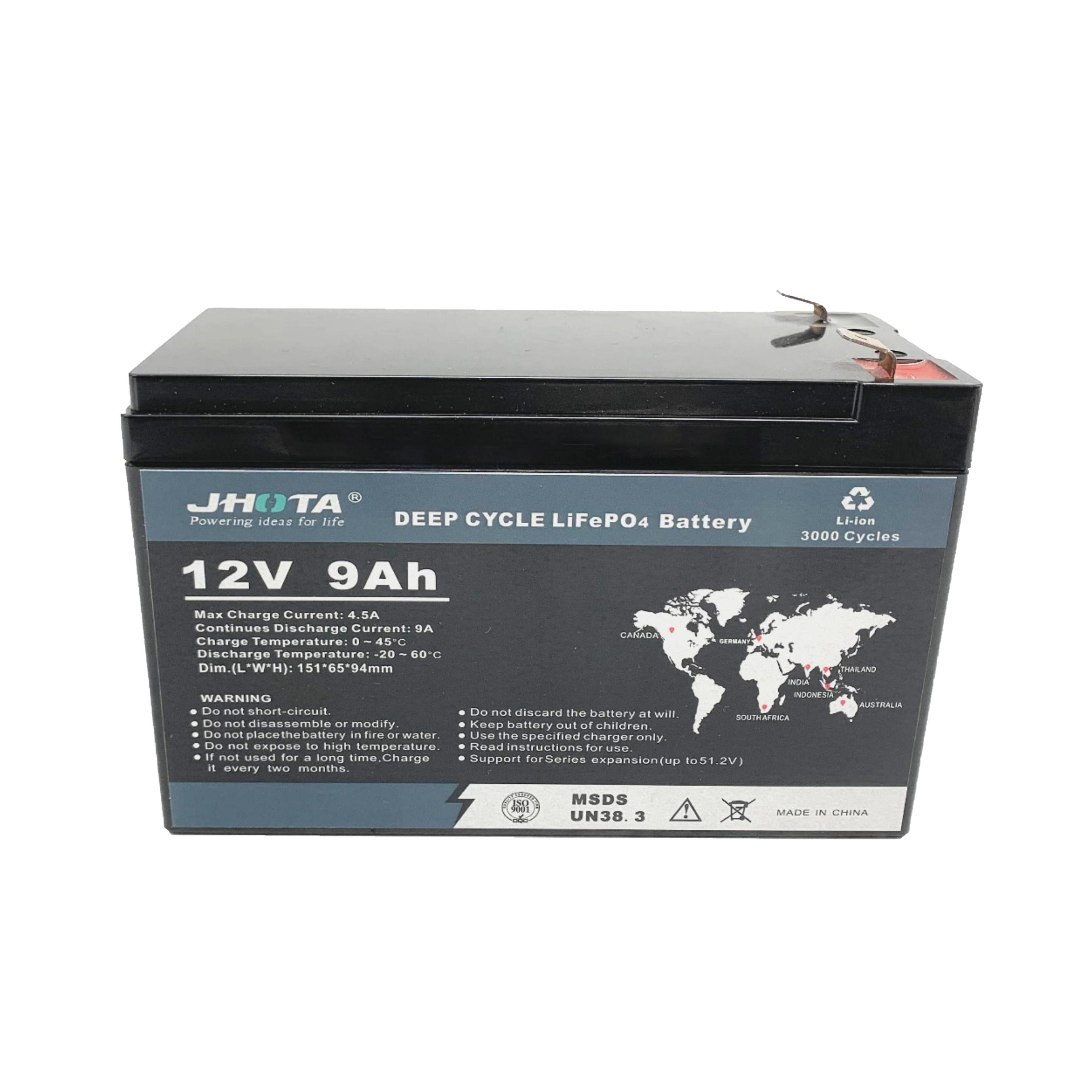

Proffesional Production 12v 9ah Lead acid Replacement LiFePo4 Solar battery pack
|
supports series connection to 51.2V
Handgrip
Positive and negative terminal posts
Max.Continuous Current: 9A
Appliciation
Lithium batteries offer advantages such as environmental friendliness, high efficiency, and long lifespan, making them ideal for green energy products. They are used in various applications including consumer electronics, electric vehicles, and energy storage systems. The expanding market for lithium-ion batteries is driven by industrial automation, civil convenience, and the internet of things. They are also widely used in the military field for outdoor power supply, unmanned devices, and high-energy weapon power supply.
Application Scenario
Energy Storage Power Station
Smart Robot
Solar Energy Storage
Power tools
Medical Equipment
Electric Vehicles
Communication Base Station
Lighting Fixture
Golf Cart
Our products VS Other products
Superior Performance
Specification
|
Nominal Voltage
|
12.8V
|
|
Nominal Capacity
|
9Ah@0.2C
|
|
Energy
|
115.2Wh
|
|
Internal Resistance
|
＜80mΩ
|
|
Cycle Life
|
3000 Cycles @0.2C Charging/Discharging,Until 70% Capacity
|
|
Self Discharge
|
＜3.5% per month at 25℃
|
|
Max.Charging Voltage
|
14.0-14.6V
|
|
Charging Mode
|
At 0℃-45℃ temperature,charged to 14.6V at a constant current of 0.2C5A,and then,changed continuously with constant voltage of
14.6V until the current was not more than 0.02C5A |
|
Charging Current
|
1.8A
|
|
Max.Charging Current
|
4.5A
|
|
Discharging Current
|
1.8A
|
|
Max.Continuous Current
|
9A
|
|
Max.Pulse Current
|
20A(＜3S)
|
|
Discharging Cut-Off Voltage
|
10.0
|
|
Charge Temperature
|
0℃-45℃ @60±25% Relative Humidity
|
|
Discharge Temperature
|
-20℃-60℃ @60±25% Relative Humidity
|
|
Storge Temperature
|
0℃-45℃ @60±25% Relative Humidity
|
|
Water Dust Resistance
|
IP55
|
|
Cell&Format
|
IFR26650 N30,4S3P
|
|
Casing
|
Plastic
|
|
Dimension(L*W*H*Th)
|
151*65*94*100mm
|
|
Weight
|
Approx. 1.34kg
|
|
Terminal
|
F2
|
