Quick Details
-
Dimension(L*W*H):
-
1880*720*1680 mm, 1880*720*1680 mm
-
Weight:
-
1900
-
Power (kW):
-
2.2kW
-
Model:
-
XLB-D(Y)600*600*1
-
Nominal molding power:
-
1.00MN
-
Working layer number:
-
1
-
Main motor power:
-
2.2 kW
-
Plate clearance:
-
125-250 mm
-
Heating manner:
-
Electricity /Oil /Steam
-
Plate size:
-
600*600 mm
-
Certification:
-
CE ISO9001
Quick Details
-
Place of Origin:
-
Shandong, China
-
Brand Name:
-
HUICAI
-
Voltage:
-
50HZ
-
Dimension(L*W*H):
-
1880*720*1680 mm, 1880*720*1680 mm
-
Weight:
-
1900
-
Power (kW):
-
2.2kW
-
Model:
-
XLB-D(Y)600*600*1
-
Nominal molding power:
-
1.00MN
-
Working layer number:
-
1
-
Main motor power:
-
2.2 kW
-
Plate clearance:
-
125-250 mm
-
Heating manner:
-
Electricity /Oil /Steam
-
Plate size:
-
600*600 mm
-
Certification:
-
CE ISO9001
Product Description
Machine Features:
1.compact structure, beautiful modelling and strong clamp force
2.Per working position can be heated to 180 degree Celsius (adjustable), the lower template can control temperature in room temperature condition to form an effective temperature difference
3. its unique double temperature station structure and high pressure characteristics are used in all kinds of reflective materials products such as trademark , etc

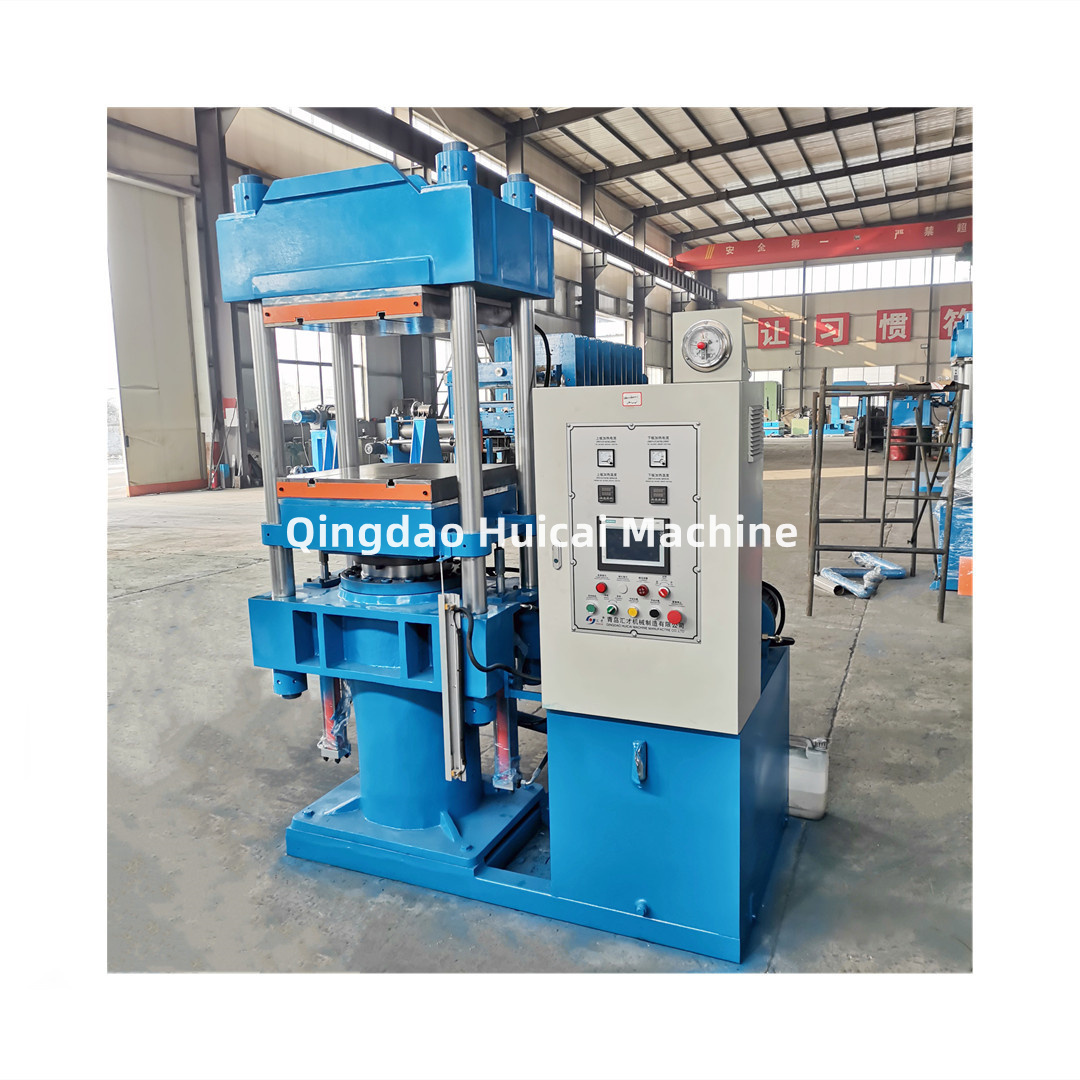

Machine Show
C olumn
Using high-quality carbon steel Q235.
Oil Cylinder
The material is QT500 or ZG270-500 or 45# steel .Use QT500 quality castings, can withstand 20MPa or more.
Push and Pull Device
Improve work efficiency, optional
Auxiliary Cylinder
The auxiliary cylinder can make the speed up,and can be high working efficiency.
Hydraulic Unit
Hydraulic system is equipped with low-pressure pump and high-pressure pump. Used by the US company 116/237. The system has safety pressure limiting devices.
Motor
The brand is kaiyuan or Siemens, which is famous and outstanding in motor making.
Hot Plate
Use 45#steel which after double scale rolling and normalizing and processing, every platen has 2 heating zones, each heating zone using a temperature measurement points.
Insulation Board
Insulation materials can be divided into resin,carbon fiber,Ultra-light calcium silicate and so on.
Double Sealings
Seal structure uses imported dual channel o-ring, and increase a dust-proof to ensure that long-term and no leaking oil.
Piston
The material is alloy chilled cast iron, which ensures long-term use.
PLC
The brand is Siemens,Taida or Mitsubishi.Electronic control system is by PLC programmable controller, HMI, control cabinets and other components.
Electricity Box
The main parts from zhengtai brand,and we can offer Schneider if you need.
