(1)Data logger and view the data curve
(2)999 groups of data records
(3)3.2-inch TFT full-color display, automatic measurement, real-time date and time
(4)Rechargeable lithium battery or separate external USB power supply, stable data, etc.
(5)Detect the quality, temperature, humidity and 0.3um/ 0.5um/1.0um/ 2.5um/ 5.0/ 10um dust particle.(PM2.5/ PM10)
- Product Details
- {{item.text}}
Quick Details
-
Brand Name:
-
DEYI
-
Model Number:
-
TC-8200
-
Particle detection range:
-
0.3~10μm
-
six-channel particle size:
-
0.3,0.5,1.0,2.5,5.0,10um
-
PM2.5 RANGE:
-
0~1000μg/m³
-
PM2.5 accuracy:
-
±12μg/m³
-
Concentration resolution:
-
1μg/m³
-
Response time:
-
1s
-
Humidity accuracy:
-
±3%
-
Humidity resolution:
-
0.01%
-
Weight:
-
320G
-
Size:
-
222*80*46mm
Quick Details
-
Type:
-
Detector
-
Warranty:
-
1 year
-
Place of Origin:
-
Guangdong, China
-
Brand Name:
-
DEYI
-
Model Number:
-
TC-8200
-
Particle detection range:
-
0.3~10μm
-
six-channel particle size:
-
0.3,0.5,1.0,2.5,5.0,10um
-
PM2.5 RANGE:
-
0~1000μg/m³
-
PM2.5 accuracy:
-
±12μg/m³
-
Concentration resolution:
-
1μg/m³
-
Response time:
-
1s
-
Humidity accuracy:
-
±3%
-
Humidity resolution:
-
0.01%
-
Weight:
-
320G
-
Size:
-
222*80*46mm
This

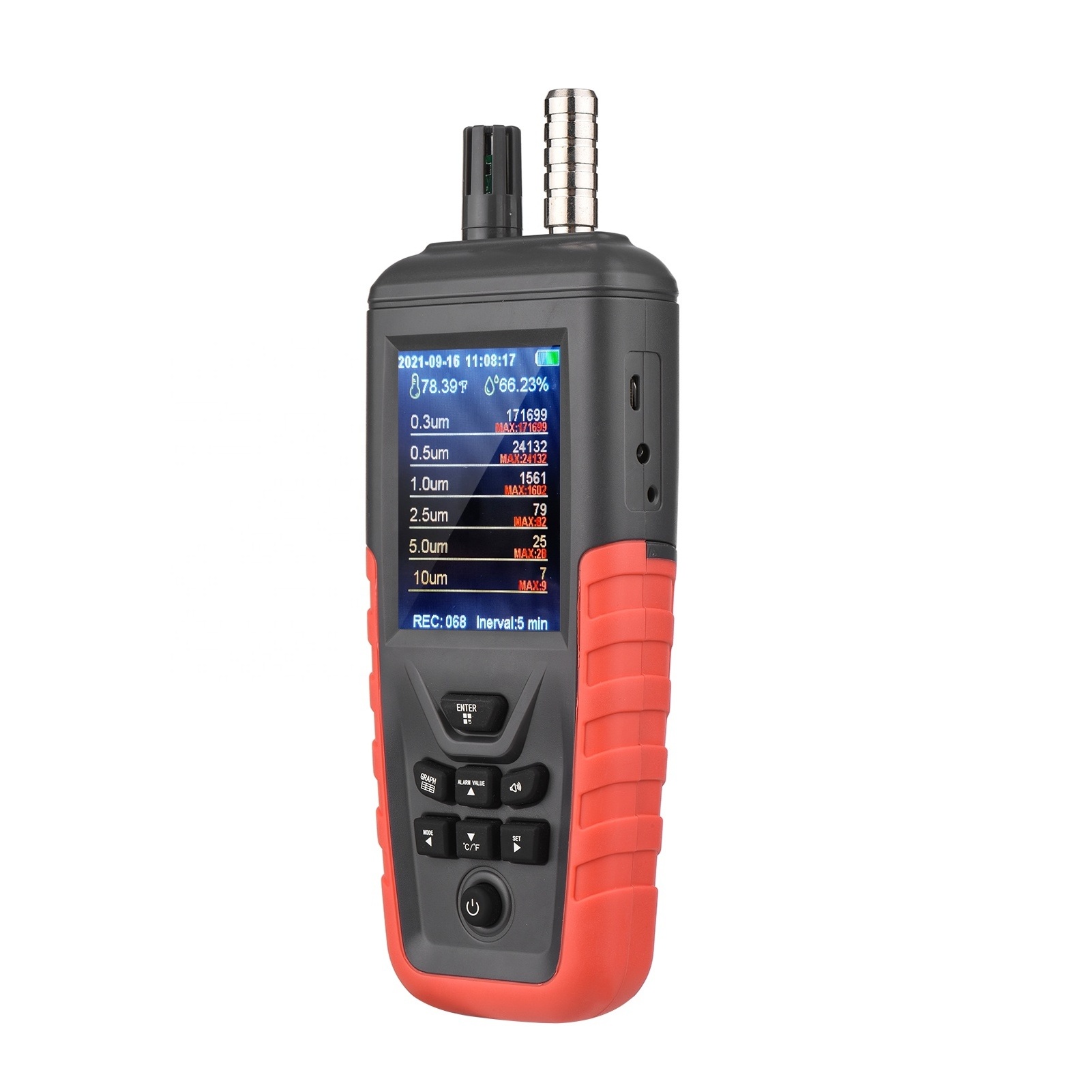

Dust particle counter TC8200
adopts the principle of laser scattering, can detect the number and quality of
0.3um, 0.5um, 1.0um, 2.5um, 5.0um, 10um
particle size dust, the detection of clean room and below clean room levels, temperature, humidity.
It has 999 groups of data records, can view the data curve, with 3.2-inch TFT full-color display, automatic measurement, real-time date and time, rechargeable lithium battery or separate external USB power supply, stable data, etc.
Applied to:
Class 100 clean room and below clean room inspection, Industrial production of electronics, optics, chemicals, food, medicine and health, biological products, aerospace, etc. Filter seal inspection, Particle pollution source detection
It has 999 groups of data records, can view the data curve, with 3.2-inch TFT full-color display, automatic measurement, real-time date and time, rechargeable lithium battery or separate external USB power supply, stable data, etc.
Applied to:
Class 100 clean room and below clean room inspection, Industrial production of electronics, optics, chemicals, food, medicine and health, biological products, aerospace, etc. Filter seal inspection, Particle pollution source detection
Specification
|
Data sheet
|
|
|
|
Particle detection range
|
0.3~10μm
|
|
|
Test particle size
|
0.3，0.5，1.0，2.5，5.0，10um
|
|
|
PM2.5 range
|
0～1000μg/m³
|
|
|
PM2.5 accuracy
|
0~100μg/m³：±10μg/m³
100~1000μg/m³：±10% |
|
|
Number of particles output range
|
≤ 2000000 Granule/L
|
|
|
Concentration resolution
|
1μg/m³
|
|
|
Flow rate
|
1 liter/minute (2.83L=1L*2.83)
|
|
|
Cleanliness standard
|
Meets the ISO 14644-1; ISO5 level - ISO9 level
|
|
|
Response time
|
1s
|
|
|
Stable power-on time
|
10s
|
|
|
Temperature measurement range
|
-10～60℃
|
|
|
Temperature accuracy
|
±2℃
|
|
|
Temperature resolution
|
0.01℃
|
|
|
Humidity measurement range
|
0～100%
|
|
|
Humidity accuracy
|
±3%
|
|
|
Humidity resolution
|
0.01％
|
|
|
Power supply
|
3.7VRemovable 18650 lithium battery
|
|
|
Charging voltage
|
5V/USB
|
|
|
length of work
|
2000mAhCan work continuously〉9 hours
|
|
|
data record
|
999group
|
|
|
weight
|
320g
|
|
|
size
|
222*80*46mm
|
|
