Quick Details
-
Brand Name:
-
Run-Test
-
Model Number:
-
Run-LR200A
-
Product Name:
-
Contact resistance tester
-
Test Current:
-
50A, 100A, 150A, 200A
-
Operating Temperature:
-
0~40℃
-
Relative Humidity:
-
≤90%RH, NON-CONDENSING
-
Weight:
-
12kgs ( Wire box included)
-
Best Resolution:
-
0.1μΩ
-
Usage:
-
Loop Resistance Measurement
-
Power Supply:
-
AC220V±10%
Quick Details
-
Warranty:
-
1 year
-
Power:
-
Electronic
-
Place of Origin:
-
Hebei, China
-
Brand Name:
-
Run-Test
-
Model Number:
-
Run-LR200A
-
Product Name:
-
Contact resistance tester
-
Test Current:
-
50A, 100A, 150A, 200A
-
Operating Temperature:
-
0~40℃
-
Relative Humidity:
-
≤90%RH, NON-CONDENSING
-
Weight:
-
12kgs ( Wire box included)
-
Best Resolution:
-
0.1μΩ
-
Usage:
-
Loop Resistance Measurement
-
Power Supply:
-
AC220V±10%
Products Description

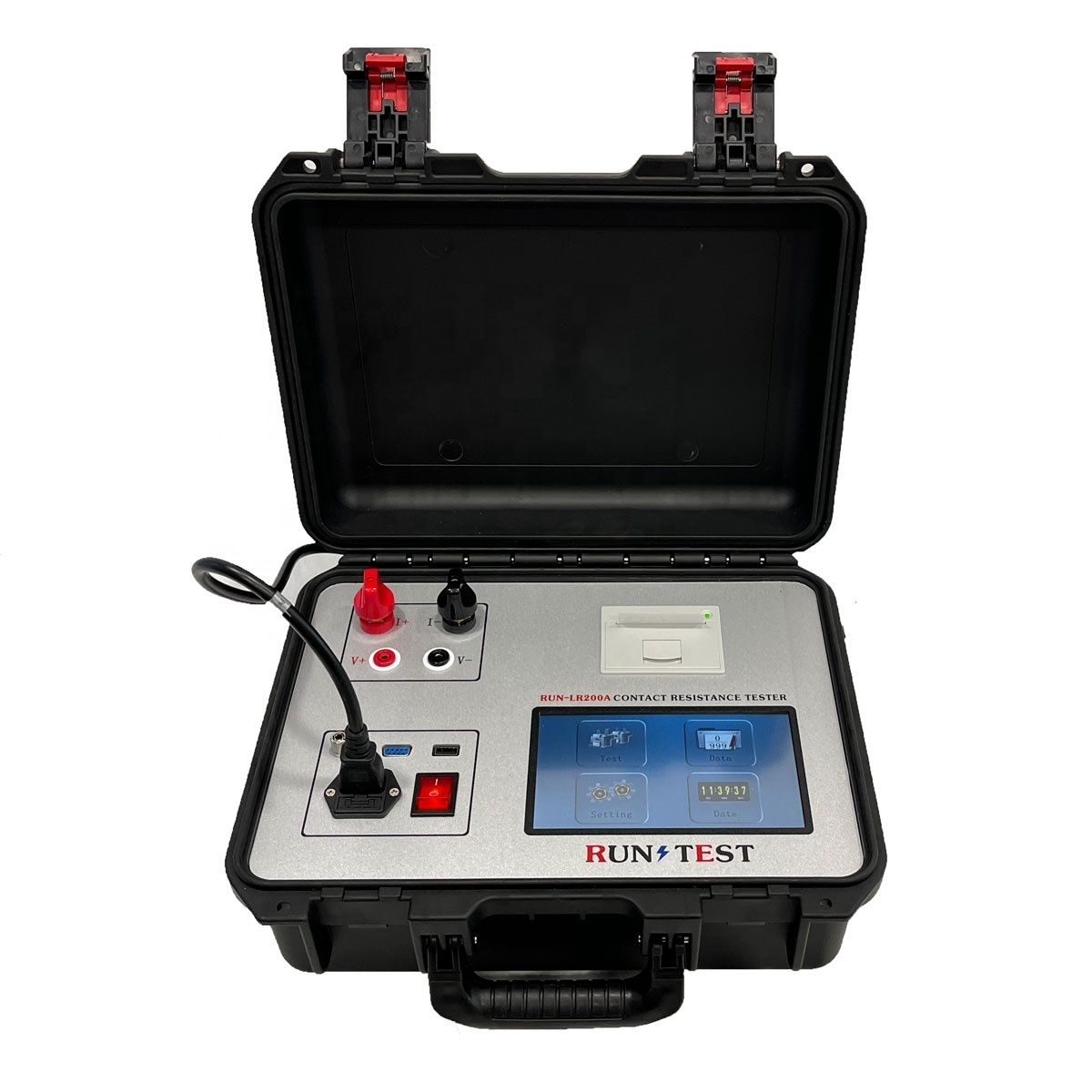

200A Loop Resistance Tester Contact Resistance Tester Digital Micro Ohm Meter Testing Circuit Breaker Switch Tester
It is widely used in the measurement of contact resistance, loop resistance of various switches and electrical appliances, as well as the contact resistance of cables, wires, and welds.
Advantage:
1. output current of the instrument is large ,light weight
2. perfect protection circuit, reliability
3. With one minute testing function
4. open circuit voltage up to 10V
Service: The instrument will be repaired and replaced free of charge for product quality problems within one year from the date of purchase, and will provide lifetime warranty and
technical services. If you find any abnormalities or malfunctions in the instrument, please contact the company in time to arrange the most convenient solution for you.
2. perfect protection circuit, reliability
3. With one minute testing function
4. open circuit voltage up to 10V
Service: The instrument will be repaired and replaced free of charge for product quality problems within one year from the date of purchase, and will provide lifetime warranty and
technical services. If you find any abnormalities or malfunctions in the instrument, please contact the company in time to arrange the most convenient solution for you.
Product Paramenters
|
Test Current
|
50A, 100A,150A,200A
|
|
Range
|
0～100mΩ（50A） 0～50mΩ（100A）
0～25mΩ（150A） 0～20mΩ（200A） |
|
Best Resolution
|
0.1µΩ
|
|
Accuracy
|
±（0.5%±2 digits）
|
|
Power
|
1000 W
|
|
Test method
|
Constant test
|
|
Power supply
|
AC220V±10% 50HZ
|
|
Operating temperature
|
0～40℃
|
|
Relative Humidity
|
0-90%, non-condensing
|
|
Dimensions
|
360*290*170mm
|
|
Weight
|
Instrument (6.5 KGS) Wire Box (9 KGS)
|
Feature
1. By downloading APP(Android), users can control instruments, store and upload test data for easy reference.
2. Multiple Protection function
3. Intelligent Power management technology, energy saving and heat reduction.
4. Higher Voltage outputs, wider measurement range.
5. Quick and automatic measurement due to high precision large constant current power supply.
6. To eliminate the influence of the test wire resistance on the test results by four-terminals wiring method.
7. 7’’ high brightness color LCD touchscreen, clear display even under strong light.
8. Internal data storage up to 1000 sets.
9. USB, RS232 or Bluetooth used for computer connection or data storage.
10. Built-in Micro-printer.
2. Multiple Protection function
3. Intelligent Power management technology, energy saving and heat reduction.
4. Higher Voltage outputs, wider measurement range.
5. Quick and automatic measurement due to high precision large constant current power supply.
6. To eliminate the influence of the test wire resistance on the test results by four-terminals wiring method.
7. 7’’ high brightness color LCD touchscreen, clear display even under strong light.
8. Internal data storage up to 1000 sets.
9. USB, RS232 or Bluetooth used for computer connection or data storage.
10. Built-in Micro-printer.
