Quick Details
-
Output:
-
1-channel HD M I
-
Application:
-
Live Streaming Project
-
Video compression:
-
H.265/H.264 encoding and decoding
-
Input:
-
4-channel SDI
-
Audio Encoding:
-
Support AAC-LC, HE-AAC, HE-AACv2
-
Protocol:
-
SRT, RTSP, RTMP, HTTP, HLS, ON VIF, UDP/Multicast and other protocols
-
Network Interface:
-
1*10M/100M/1000M adaptive network interface
-
USB Interface:
-
1 Channel USB Interface
-
Serial Interface:
-
1 Channel RS232 Serial data communication interface
-
Power Supply:
-
DC5.5/2.1 interface,DC12V/≤8W
Quick Details
-
Place of Origin:
-
zhejiang
-
Brand Name:
-
OEM
-
Model Number:
-
HY088
-
Output:
-
1-channel HD M I
-
Application:
-
Live Streaming Project
-
Video compression:
-
H.265/H.264 encoding and decoding
-
Input:
-
4-channel SDI
-
Audio Encoding:
-
Support AAC-LC, HE-AAC, HE-AACv2
-
Protocol:
-
SRT, RTSP, RTMP, HTTP, HLS, ON VIF, UDP/Multicast and other protocols
-
Network Interface:
-
1*10M/100M/1000M adaptive network interface
-
USB Interface:
-
1 Channel USB Interface
-
Serial Interface:
-
1 Channel RS232 Serial data communication interface
-
Power Supply:
-
DC5.5/2.1 interface,DC12V/≤8W
Product Description
Specification
|
item
|

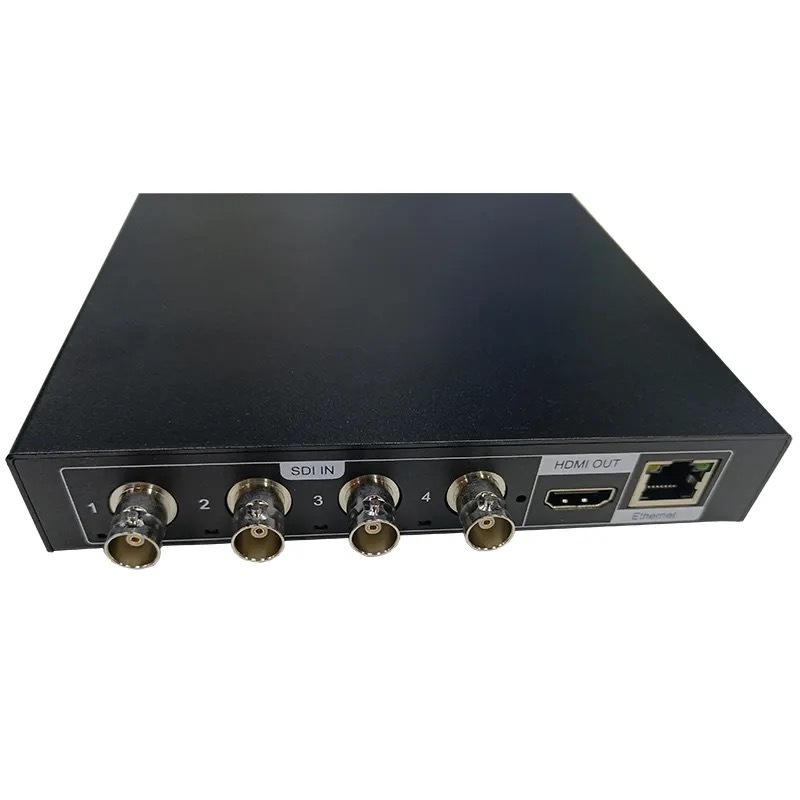

4 Channel SDI Codec
|
|
Private Mold
|
NO
|
|
Place of Origin
|
zhejiang
|
|
Brand Name
|
OEM
|
|
Model Number
|
HY088
|
|
Output
|
1-channel HD M I
|
|
Application
|
Live Streaming Project
|
|
Video compression
|
H.265/H.264 encoding and decoding
|
|
Input
|
4-channel SDI
|
|
Audio Encoding
|
Support AAC-LC, HE-AAC, HE-AACv2
|
|
Protocol
|
SRT, RTSP, RTMP, HTTP, HLS, ON VIF, UDP/Multicast and other protocols
|
|
Network Interface
|
1*10M/100M/1000M adaptive network interface
|
|
USB Interface
|
1 Channel USB Interface
|
|
Serial Interface
|
1 Channel RS232 Serial data communication interface
|
|
Power Supply
|
DC5.5/2.1 interface,DC12V/≤8W
|
Main Features
* Codec Integrated Design, support Bi-directional transmission of audio and video
* Support Four-Channel SDI inputs and One-Channel HD MI output
* Independent encoding and decoding, it can be up to 4 channels of 1080P@30fps, and the total performance is 6 channels of
1080P@30fps
* Support H.265/H.264 encoding and decoding, video and audio streams support standard TS, ES stream formats
* Video encoding and decoding delay is less than 200ms
* Support AAC-LC, HE-AAC, HE-AACv2 audio codec
* Support SRT, RTSP, RTMP, HTTP, HLS, ON VIF, UDP/Multicast and other protocols
* Support video output screen 1~5 split display, and support 4 Customized split modes
* Built-in MSATA can be connected to solid-state hard disk, support MP4 format video storage, support loop video storage
* Support Bi-directional transparent transmission of serial data through the network
* Built-in Webserver, which can be managed and configured through a browser
* Codec Integrated Design, support Bi-directional transmission of audio and video
* Support Four-Channel SDI inputs and One-Channel HD MI output
* Independent encoding and decoding, it can be up to 4 channels of 1080P@30fps, and the total performance is 6 channels of
1080P@30fps
* Support H.265/H.264 encoding and decoding, video and audio streams support standard TS, ES stream formats
* Video encoding and decoding delay is less than 200ms
* Support AAC-LC, HE-AAC, HE-AACv2 audio codec
* Support SRT, RTSP, RTMP, HTTP, HLS, ON VIF, UDP/Multicast and other protocols
* Support video output screen 1~5 split display, and support 4 Customized split modes
* Built-in MSATA can be connected to solid-state hard disk, support MP4 format video storage, support loop video storage
* Support Bi-directional transparent transmission of serial data through the network
* Built-in Webserver, which can be managed and configured through a browser
Specifications
Item
Description
Video Parameters
Input Resolution:
1080P:1920*1080@60/50/30/25/24Hz, 1080i:1920*1080@60/50Hz,
720P: 1280*720@60/50/30/25/24Hz.
Output Resolution:
1080P:1920*1080@60/50Hz,1080i:1920*1080@60/50i,
FWXGA:1366*768@60/50Hz, SXGA:1280*1024@60/50Hz, 720P:1280*720@60/50Hz, XGA:1024*768@60/50Hz.
Codec Parameters
Codec Type:H.265 Main Profile,H.264 Baseline/Main/High Profile.
Bit Rate Frame Rate:Support CBR/VBR, Support encoding bit rate frame rate adjustable 32Kbps-16Mbps, 1-30fps
Video Coding Capability: Dual Stream: 4ch 1080P@30fps+4ch D1@30fps
Video Decoding Capability: Up to 4ch 1080P@30fps
Function
Screen Split:1/2/3/4/5/PIP and 4 Customized Split Modes
Screen Display:Support the original ratio of the screen or cover the window display
Audio and video transmission:Support SRT, RTSP, RTMP, HTTP, HLS, UDP/Multicast, On vif, etc.
Video Storage: Support MP4 format video storage,support loop video
Data transparent transmission: Support Bi-directional transparent transmission of serial data through the network.
Device Management: Built-in webserver, which can be managed and configured through a browser.
Support network remote firmware upgrade
Peripheral Interface
Video Input: 4-Channel SDI interface
Video Output: 1-Channel HD MI interface
Audio Port: 1 input, 1 output, 3.5mm interface (level: 2.0Vp-p, impedance: 1KΩ), supports HD MI embedded audio.
Network Interface:1*10M/100M/1000M adaptive network interface
USB Interface: 1 Channel USB Interface
Serial Interface: 1 Channel RS232 Serial data communication interface
Local Storage:Built-in MSATA Interface, it can be inserted into MSATA interface solid state drive (optional)
Working Environment
Power Supply:DC5.5/2.1 interface,DC12V/≤8W
Working Temperture:-10℃~+55℃/10%~90%RH
Structure Size:210*153*26 (mm)
Net Weight/Gross Weight: 798g/1100g
Item
Description
Video Parameters
Input Resolution:
1080P:1920*1080@60/50/30/25/24Hz, 1080i:1920*1080@60/50Hz,
720P: 1280*720@60/50/30/25/24Hz.
Output Resolution:
1080P:1920*1080@60/50Hz,1080i:1920*1080@60/50i,
FWXGA:1366*768@60/50Hz, SXGA:1280*1024@60/50Hz, 720P:1280*720@60/50Hz, XGA:1024*768@60/50Hz.
Codec Parameters
Codec Type:H.265 Main Profile,H.264 Baseline/Main/High Profile.
Bit Rate Frame Rate:Support CBR/VBR, Support encoding bit rate frame rate adjustable 32Kbps-16Mbps, 1-30fps
Video Coding Capability: Dual Stream: 4ch 1080P@30fps+4ch D1@30fps
Video Decoding Capability: Up to 4ch 1080P@30fps
Function
Screen Split:1/2/3/4/5/PIP and 4 Customized Split Modes
Screen Display:Support the original ratio of the screen or cover the window display
Audio and video transmission:Support SRT, RTSP, RTMP, HTTP, HLS, UDP/Multicast, On vif, etc.
Video Storage: Support MP4 format video storage,support loop video
Data transparent transmission: Support Bi-directional transparent transmission of serial data through the network.
Device Management: Built-in webserver, which can be managed and configured through a browser.
Support network remote firmware upgrade
Peripheral Interface
Video Input: 4-Channel SDI interface
Video Output: 1-Channel HD MI interface
Audio Port: 1 input, 1 output, 3.5mm interface (level: 2.0Vp-p, impedance: 1KΩ), supports HD MI embedded audio.
Network Interface:1*10M/100M/1000M adaptive network interface
USB Interface: 1 Channel USB Interface
Serial Interface: 1 Channel RS232 Serial data communication interface
Local Storage:Built-in MSATA Interface, it can be inserted into MSATA interface solid state drive (optional)
Working Environment
Power Supply:DC5.5/2.1 interface,DC12V/≤8W
Working Temperture:-10℃~+55℃/10%~90%RH
Structure Size:210*153*26 (mm)
Net Weight/Gross Weight: 798g/1100g
