Customized Interior Exterior Aluminum Wall Cladding Decorative Metal Wall Panels

Customized Interior Exterior Aluminum Wall Cladding Decorative Metal Wall Panels

FOB Reference Price: Get Latest Price

≥100 Square meters

US $15.83

Free Inquiry

Customized Request

Product Details

{{item.text}}

Quick Details

Place of Origin:: Guangdong, China

Brand Name:: ManyBest

Model Number:: MDB-098

Material:: Aluminum alloy

Key Word:: 3D Decorative Panels

Width:: ≤2000mm

Length:: ≤6000mm

Thickness:: 1.0-4.0mm

Colour:: Customizde

Surface treatment:: Powder coated, PE, PVDF, Anodised, Woodgrain and Electrophoresis

Our Services:: Provide installation video and diagram

Price:: Factory price

Certificate:: CE / TUV/ISO9001

Quick Details

Project Solution Capability:: graphic design, 3D model design, total solution for projects, Cross Categories Consolidation

Application:: Building

Design Style:: Modern

Place of Origin:: Guangdong, China

Brand Name:: ManyBest

Model Number:: MDB-098

Material:: Aluminum alloy

Key Word:: 3D Decorative Panels

Width:: ≤2000mm

Length:: ≤6000mm

Thickness:: 1.0-4.0mm

Colour:: Customizde

Surface treatment:: Powder coated, PE, PVDF, Anodised, Woodgrain and Electrophoresis

Our Services:: Provide installation video and diagram

Price:: Factory price

Certificate:: CE / TUV/ISO9001

ManyBest is a Professional Provider For Ceiling & Wall Solutions.

We Will Offer One Stop Solutions To Assist Your Project Decoration.

1. Key Feature

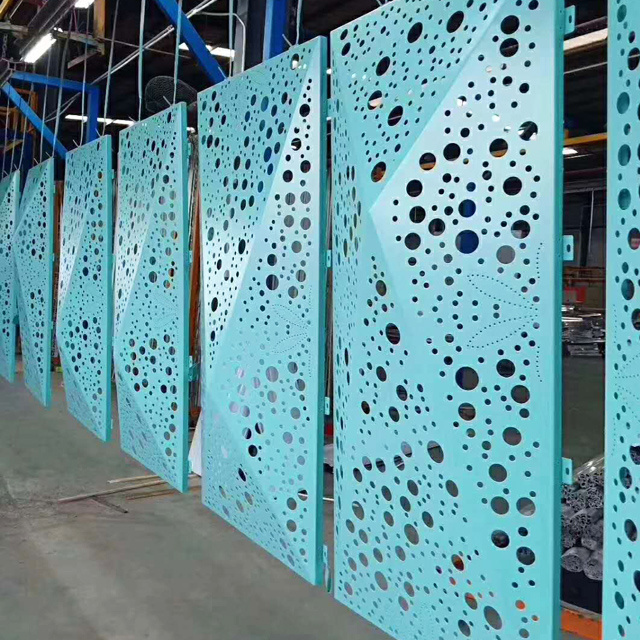

*Aluminum panel can be square shape, rectangular shape, triangle shape, round shape, curved shape, concave shape, convex shape etc.

* Different sizes and patterns are available for punching and curved aluminum panel .
* It can achieve different visual effect by different punching patterns.
* It’s good for ventilation, heat transferring, light transmission and the sound absorbing as well.
*All of the designs are giving great options and choices to architects。

2. Product Specification

Raw Material	1100, 3003 etc
Product Type	Solid /Shaped /Carved panels,/large louver etc.
Surface treatment	Powder coated, PE, PVDF, Anodised, Woodgrain and Electrophoresis
Color type	Solid colors, Metallic colors, Woodgrain, Marble and Rock color, etc.
Regular Thickness	-1.5mm, 2.0mm, 2.5mm, 3mm, 3.5mm, 4mm - thickness about 0.12-0.15mm
Max Size	1500*4000mm. Price is changed by different sizes
Service Range	- Provide professional design and suggestion. - Purchase Raw materials and manufacture all kinds of products.
Certification	ISO9001:2000, CE, TUV

Customized sizes are available upon your request.

3. Material And Structure Of Aluminum Curtain Wal

Aluminum curtain wall is made of high strength aluminum alloy material such as 1100H24 and
3003H24 with common thickness 2.0mm, 2.5mm and 3.0mm. Regular maximum size is 1400 x 4000mm.

It’s mainly made up of Aluminum solid panel, reinforce rib and angle clip. The whole panel
is much stronger with the reinforce rib which can guarantee the panel flatness and shock
resistance. Meanwhile, the sound absorbing material and insulation material can be installed at the back of the panel.

4. Our Production Process

Square plate →Cutting&Feeding → Hole-punching → Angle-punch →Bending →Examination →Painting

Irregular plate→ Cutting&Feeding → Hole-punching → Angle-punch →Bending →Welding →Examination→Painting

Article plate →Rolled material →Punching →Leveling → Shaping by rolling →Examination → Packing

Article plate →White raw material →Punching →Leveling → Shaping by rolling →Examination →Coating

Before coating: - All panels were produced as per the drawing. - All panels were inspected, including the size, the polishing, the flatness etc. - All panels were placed neatly to get coated.

After coating: - All panels were coated as per the color and finish. - All panels were inspected, including the appearance quality, the color, the coating thickness etc. - All panels were packed with protected film, bubble film and placed neatly to get ready for shipment.

The construction metal, aluminium, has become increasingly important in recent years and is now

being used for roofing and facade cladding. Baffle panel are also becoming more and more popular

on ceilings and walls decoration.

Our Exhibition

Exhibition provided us with an ideal platform to network with industry leaders, architects, designers, and decision-makers. Through meaningful conversations and exchange of ideas, we gained valuable insights into the evolving trends and requirements of the construction and design sectors.

Q1: How can you guarantee the quality?

A: We have rigorous quality test system, from raw materials to finished products, the materials must be checked and signed by QC people.

Q2: Can I get a sample?

A: Yes we offer free samples. Delivery cost is to be paid by clients.

Q3: Can you provide OEM service?

A: Yes,we can produce under your own brand name. Logo and design need to be provided so as to make customized brand name.

Q4: What's the benefit for long term importers or distributors?

A:For those regular customers, we offer incredible discount, sample free shipping, 3D Graph Draw, custom packaging and QC as per custom requirements.

Q5: Why can I trust you and place order with you?

A: From 2009 to 2024 Manybest is with 15 years experience in this industry, we have served clients from more than 100 countries/areas, Manybest is well-known for its quality and Manybest team win clients’ trust by honesty and down to earth business style.
