Quick Details
-
Applicable Models:
-
universal
-
Place of Origin:
-
Guangdong, China
-
Brand Name:
-
Autel
-
Model Number:
-
PowerScan PS100
-
Warranty:
-
12 Months
-
Brand:
-
Autel
-
Product Name:
-
PowerScan PS100
-
Display:
-
TFT color display (160 x 128 dpi)
-
Operating Temperature:
-
0 to 60°C (32 to 140°F)
-
External Power:
-
12.0 or 24.0 V power provided via vehicle battery
-
Length\Width\Height:
-
126mm(4.96")\46.5mm(1.83")\35mm(1.38")
-
NW:
-
0.105kg (0.23lb),GW: 0.726 kg(1.6lb
-
Color:
-
Red
-
Material:
-
Plastic
-
Certification:
-
CE
Quick Details
-
Car Fitment:
-
BMW - Europe
-
Voltage:
-
12V
-
Power:
-
5W
-
Applicable Models:
-
universal
-
Place of Origin:
-
Guangdong, China
-
Brand Name:
-
Autel
-
Model Number:
-
PowerScan PS100
-
Warranty:
-
12 Months
-
Brand:
-
Autel
-
Product Name:
-
PowerScan PS100
-
Display:
-
TFT color display (160 x 128 dpi)
-
Operating Temperature:
-
0 to 60°C (32 to 140°F)
-
External Power:
-
12.0 or 24.0 V power provided via vehicle battery
-
Length\Width\Height:
-
126mm(4.96")\46.5mm(1.83")\35mm(1.38")
-
NW:
-
0.105kg (0.23lb),GW: 0.726 kg(1.6lb
-
Color:
-
Red
-
Material:
-
Plastic
-
Certification:
-
CE
Products Description

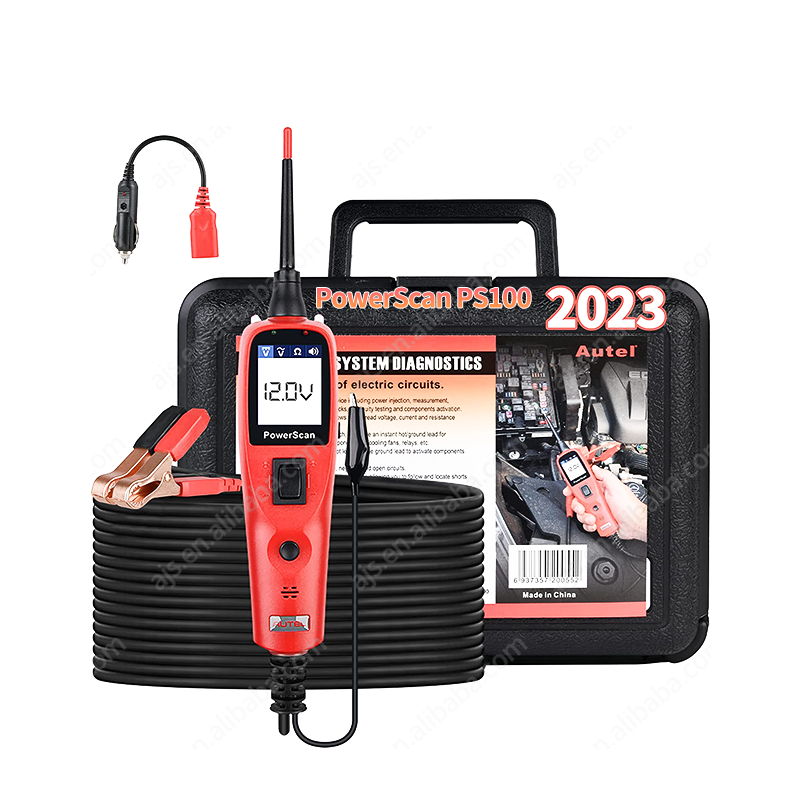

Autel PS100 Automotive Circuit Tester Probe Kit
The PowerScan Tool is the most revolutionary circuit tester to date. Featuring AVOmeter, test light, built-in flashlight, short
circuit indicator, relay/component tester, continuity tester and bad ground indicator, the PowerScan is truly the ultimate in
power and affordability, allowing users to check circuitry in one single step. An absolute must for every technician looking for a fast and accurate solution to electrical system diagnostics.
circuit indicator, relay/component tester, continuity tester and bad ground indicator, the PowerScan is truly the ultimate in
power and affordability, allowing users to check circuitry in one single step. An absolute must for every technician looking for a fast and accurate solution to electrical system diagnostics.
• Easy to read AVOmeter allows you to read voltage, current and resistance at the fingertip
• With a flip of the power switch, you have an instant hot/ground lead for powering up electrical components like cooling fans,relays, etc.
• Simultaneously uses the hot lead and the ground lead to activate components right in your hand
• Instantly identifies positive, negative and open circuits
• Tests for bad ground contacts instantly, allowing you to follow and locate shorts fast without wasting fuses
• Instantly checks continuity of switches, relays and diodes
• Circuit breaker protected
• Built-in Flashlight enables you to work in the dark
• Audio tone indicator allows for no-look menu scrolling once users are familiar with menu tone assignment
• 20ft (extendable) cable provides excellent accessibility to test along the vehicle
• Extremely easy to use and highly reliable
Follow and locate short circuits
PS100 follow and locate short circuits without wasting fuses. The tool is also short-circuit protected.
Two ways for Power Connection
Directly connect the PS100 circuit tester with the cigarette lighter or battery electrode, then you can start to test.
With a flip of the power switch
By depressing the power switch, conduct a positive or negative battery current to the probe tip for testing the function of an electrical component without the use of jumper wires.
Product Paramenters
|
Display
|
TFT color display (160 x 128 dpi)
|
|
Operating Temperature
|
0 to 60°C (32 to 140°F)
|
|
External Power
|
12.0 or 24.0 V power provided via vehicle battery
|
|
Length\Width\Height
|
126mm(4.96”)\46.5mm(1.83”)\35mm(1.38”)
|
|
NW
|
0.105kg (0.23lb),GW: 0.726 kg(1.6lb)
|
