Quick Details
-
Rated Voltage:
-
24V/DC
-
Rated Current:
-
80A
-
Speed:
-
3600
-
Frequency:
-
DC
-
Keywords:
-
3kw Single Phase 48v Generator
-
Displacement:
-
165cc
-
Product name:
-
2KW-5kw Gasoline Generator
-
Generator Type:
-
Electric Power Silent Portable Inverter Generator
-
Optional:
-
LCD Digital Panel
-
Phase:
-
Single Phase Inverter Generator
-
Fuel:
-
Gasonline
-
Noise Level:
-
59-64
-
Certification:
-
CE
Quick Details
-
Place of Origin:
-
Fujian, China
-
Brand Name:
-
USR
-
Model Number:
-
TEC30DC
-
Rated Voltage:
-
24V/DC
-
Rated Current:
-
80A
-
Speed:
-
3600
-
Frequency:
-
DC
-
Keywords:
-
3kw Single Phase 48v Generator
-
Displacement:
-
165cc
-
Product name:
-
2KW-5kw Gasoline Generator
-
Generator Type:
-
Electric Power Silent Portable Inverter Generator
-
Optional:
-
LCD Digital Panel
-
Phase:
-
Single Phase Inverter Generator
-
Fuel:
-
Gasonline
-
Noise Level:
-
59-64
-
Certification:
-
CE
48V DC Honda engine gasoline slient generator for RV motorhomes
| Engine | Original Honda engine |
| Technical Data | |
| Maximum output (W) | 3000 |
| Continuous output (W) | 2600 |
| Net weight (kg) | 45 |
| Height (mm) | 290 |
| Depth (mm) | 385 |
| Width (mm) | 480 |
| Width with suspension (mm) | 580 |
| THDV (%) | 1 |
| Frequency (Hz ±1%) | 50 |
| Max starting current (A) | 33 |
| Engine | GX 160/5.5 HP |
| Engine output (kW) | 4.0 (5.5 HP) |
| Displacement (cm³) | 163.4 |
| Consumption max. (l/h) | 1.2 |
| Consumption LPG max. (kg/h) | 1 |
| Sound level (dBA/7m) | 53-60 |
| Guaranteed sound level (dBA) | 85 |

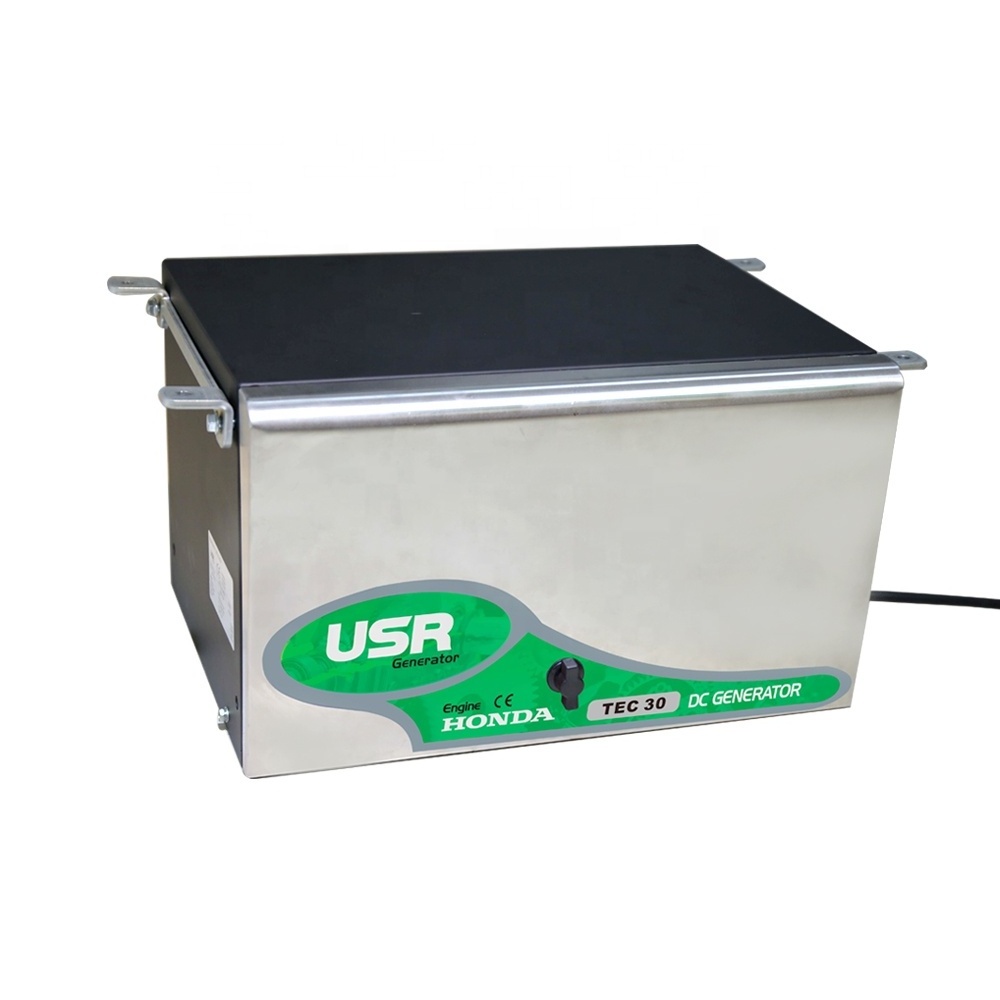

48V DC Honda engine gasoline slient generator for Truck & RV
Model: TEC-30DC
DC Generator 3kW, inverter generator Technology. DC range extender generator
3kW gasoline slient DC generator for Truck & RV
FEATURES
COMFORTABLE CLIMATE WHEN MAINS POWER IS UNAVAILABLE
Travelling off the beaten track with all the comfort you are accustomed to – USR generators make it possible. They ensure reliable power supply wherever mains power is unavailable. This makes them a must-have accessory for outdoor enthusiasts striving for maximum freedom and independence. Geared to the needs of camping enthusiasts, the TEC-30DC petrol generator ensures self-sufficient operation of all USR RV air conditioners. Naturally, it will supply other gadgets too. Outstanding benefits: lightweight, efficient operation with reduced noise and odour emission.
USR TEC-30DC is a highly compact and lightweight generator fuelled by regular unleaded petrol. Ideal for fitting under the vehicle floor, it provides 60A continuous output and is also extremely efficient, with minimal noise and smell emission. Its convenient auto start function starts the generator to recharge a battery as soon as its voltage becomes low. Like all USR generators the TEC-30 is supplied complete with remote control. There's no reason to ever be without power!
SPECIFICATIONS
GENERAL
Model TEC-30 DC
Scope of delivery Generator, control panel + 5mt cable, external silencer + 2mt flexible exhaust pipe, brackets, change over switch, clamps, washers, muffler curve, fuel filter, cut out template, user and installation manuals
Product Description Petrol generator
DIMENSIONS
Dimensions product depth 385 mm
Dimensions product height 290 mm
Dimensions product width 480 mm
Net weight 44 kg
ELECTRICAL
Output voltage 12V-72V
PERFORMANCE
Continuous power 25°C 60A
Operating temperature min -15.00 °C
Operating temperature max 50.00 °C
Fuel type RON 91 Regular Grade Petrol
LOGISTICS
Dimensions parcel depth 550 mm
Dimensions parcel height 328 mm
Dimensions parcel width 600 mm
Parcel weight 59 kg
