- Product Details
- {{item.text}}
Quick Details
-
Warranty(Year):
-
3-Year
-
Color Temperature(CCT):
-
2700K-6000K
-
Product Weight（kg）:
-
0.26
-
Lamp Luminous Flux(lm):
-
1000
-
CRI (Ra>):
-
80
-
Working Temperature(℃):
-
-20 - 40
-
Working Lifetime(Hour):
-
50000
-
Place of Origin:
-
China
-
Brand Name:
-
LIPAI
-
Model Number:
-
P02106-12W
Quick Details
-
Lamp Luminous Efficiency(lm/w):
-
80
-
Application:
-
Indoor
-
Lamp Body Material:
-
Aluminum frame+Prisnatic diffuser
-
Warranty(Year):
-
3-Year
-
Color Temperature(CCT):
-
2700K-6000K
-
Product Weight（kg）:
-
0.26
-
Lamp Luminous Flux(lm):
-
1000
-
CRI (Ra>):
-
80
-
Working Temperature(℃):
-
-20 - 40
-
Working Lifetime(Hour):
-
50000
-
Place of Origin:
-
China
-
Brand Name:
-
LIPAI
-
Model Number:
-
P02106-12W
Overview
Description
Model Number: P02106-12W
Size: 6inch
Power: 12W
Power: 12W
Dimensions: OD 170mm H 25mm
Power Factor: >0.9
Power Factor: >0.9
Voltage(V): 120V/120-277V/347V AC 60Hz
Flux(lm): 1000lm
CRI (Ra>): 80 or 90
Working Temperature(℃): -40 - 40
Material: Aluminum
IP Rating: IP44
Place of Origin: Guangdong, China
Brand Name: LIPAI
CRI (Ra>): 80 or 90
Working Temperature(℃): -40 - 40
Material: Aluminum
IP Rating: IP44
Place of Origin: Guangdong, China
Brand Name: LIPAI
Beam Angle: 110°
Color Temperature(CCT): 3CCT
Lamp Luminous Efficiency(lm/w): 80
Color: White, Black
Shape: Round
Type: SMD 2835
IP Grade: Damp or wet Location
IP Grade: Damp or wet Location
Warranty(Years): 5 years
Certification: CETLUS, Energy Star, FCC
LED Chips: SMD 2835
Air tight: Yes
LED Chips: SMD 2835
Air tight: Yes
IC rated fixture and driver: Yes
Dimmable : Yes
Supply Ability
Supply Ability: 100000 Piece/Pieces per Month
Packaging & Delivery
Packaging Details Regular Color Package Outer Box Size: 54*26*47CM
Weight/Carton: 19.25KG
PCS/CTN: 50PCS
Lead Time
|
Quantity(Pieces)
|
1 - 5000
|
>5000
|
|
Est. Time(days)
|
15
|
To be negotiated
|
Specification
|
Model:
|
P02106-12W
|
|
Size
|
OD170*H20mm
|
|
Power
|
12W
|
|
Cut out
|
155mm
|
|
Beam Angle
|
110°
|
|
LED Chips
|
SMD 2835
|
|
CCT
|
3CCT (3000K/4000K/5000K)
|
|
Lifespan
|
50000hours
|
|
Luminous Efficacy
|
80LM/W
|
|
CRI
|
> 80 or 90
|
|
Ambient Operating Temperature
|
(-40°C) to (+40°C)
|
|
Material
|
Aluminum
|
|
IP grade
|
Damp Location
|
|
IC rated fixture and driver:(Contact with insulation Allowed)
|
Yes
|
|
Warranty
|
5years
|
|
Color
|
White
|
|
Cerification
|
CETLUS, Energy Star, FCC
|
Features
* High Efficiency, Great Energy Saving option
* High Color Rendering Index
* CETLUS, FCC, Energy Star
* High Color Rendering Index
* CETLUS, FCC, Energy Star
*
IC Rated, suitable for Damp locations
* Pot light housing is not required even for Insulated Ceilings
* Long Operating Life with 5years Warranty
* Fast and Easy installation, save on labour cost
* Only 2'' Clearance needed for installation
* Dimmable
* Long Operating Life with 5years Warranty
* Fast and Easy installation, save on labour cost
* Only 2'' Clearance needed for installation
* Dimmable
Shippment
* We ship from Monday to Saturday.
* Orders are usually shipped out the same day if its placed before 3pm EST.
* The North American customers will be responsible for any import duties upon arrive of the item.
* We use carriers such as UPS, PHL,Fedex etc. so there will be an tracking number update to our customers email address when item is shipped out.
* Delivery time in North Americans countries is range from 3- 5 business days, 5-7 business days and 7-10 business days.
* If you haven't received your parcel in the expected period, please contract us ASAP, we will try our best to contract the carrier and solve the issue for our customer
* Orders are usually shipped out the same day if its placed before 3pm EST.
* The North American customers will be responsible for any import duties upon arrive of the item.
* We use carriers such as UPS, PHL,Fedex etc. so there will be an tracking number update to our customers email address when item is shipped out.
* Delivery time in North Americans countries is range from 3- 5 business days, 5-7 business days and 7-10 business days.
* If you haven't received your parcel in the expected period, please contract us ASAP, we will try our best to contract the carrier and solve the issue for our customer

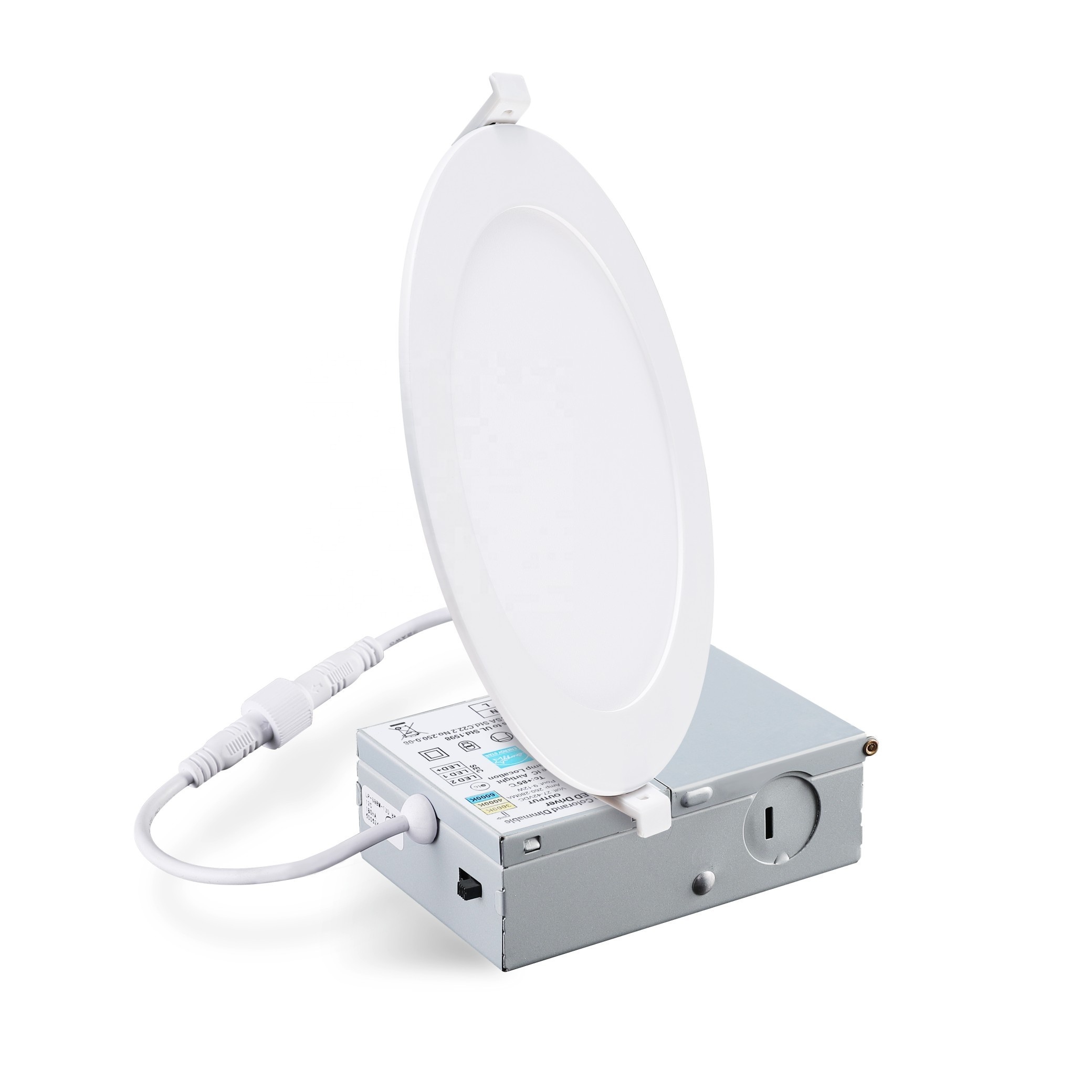

Product Pictures
Product Aging Diagram
Container Loading Shipment
Certifications
LED Lighting Exhibits
Full payment from customer
Thanks choosing Lipai :)
We received many orders!!!
Quality Control
100% of the lamps will be tested and keep lighting for 24 hours to test its quality reliability, and we will test its temperature after 24 hours' lighting.Then after it is cool we will test 100% of the lamps to see if it still work well. Each lamp should pass all these QC procedures before shipping to customer.
Delivery Detail
We ship the goods by USP/DHL/FEDEX/TNT express which takes 3~5days to arrice,or by air cargo which takes about one week to arrive,or by sea which takes about one month to arrive, depending on your actual requirement.
Trade Terms
1.Payment term:T/T 30% deposit after order confirmed, the balance after goods ready before shipping, or L/C, Western Union for small amount.
2.Delivery time:normally in 5~10days after deposit receive.
3.Sample policy: Samples are always available for each model and can be ready in 3~7days when we receive the payment.
4.Shipping Port:Shenzhen,China.
5.Discount:If you place a large order,we will give you a discount.
2.Delivery time:normally in 5~10days after deposit receive.
3.Sample policy: Samples are always available for each model and can be ready in 3~7days when we receive the payment.
4.Shipping Port:Shenzhen,China.
5.Discount:If you place a large order,we will give you a discount.
Our services
1.For all your inquire, we will reply you in detail within 24 hours.
2.We have well-trained,warm sales and after-sales service,if you have any promble,we will solve it immediately.
3.We offer OEM service which can print your own logo on products,customize the retail box packing and so on.
4.We have experienced R&D engineers and we have strong ability to do ODM projects.
2.We have well-trained,warm sales and after-sales service,if you have any promble,we will solve it immediately.
3.We offer OEM service which can print your own logo on products,customize the retail box packing and so on.
4.We have experienced R&D engineers and we have strong ability to do ODM projects.
Because of the excellent quality and favorable price,you may be assured that our products will no doubt help you expand your market. It's worth to choose LIPAI.
