Quick Details
-
Model Number:
-
LFeLi-12100M
-
Place of Origin:
-
Jiangsu, China
-
Weight:
-
13.6kg, 13.6kg(29.98lbs)
-
The charging ratio:
-
30A
-
The discharge rate:
-
100A
-
Type:
-
Li-Ion
-
Nominal Voltage:
-
12V
-
Size:
-
342*173*220mm
-
Cycle life:
-
≥5000 times
-
Warranty:
-
5 years, 5years
-
OEM/ODM:
-
Accepatable
-
Battery Protection:
-
PCM/PCB
-
Container Material:
-
ABS
-
Certification:
-
CE/ROSH/MSDS/UN38.3
Quick Details
-
Anode Material:
-
LFP
-
Application:
-
Golf Carts, Electric Bicycles/Scooters, Electric Folklifts, electric vehicles, Electric Wheelchairs, Electric Power Systems, Solar Energy Storage Systems, Uninterruptible Power Supplies
-
Brand Name:
-
Yangtze Battery
-
Model Number:
-
LFeLi-12100M
-
Place of Origin:
-
Jiangsu, China
-
Weight:
-
13.6kg, 13.6kg(29.98lbs)
-
The charging ratio:
-
30A
-
The discharge rate:
-
100A
-
Type:
-
Li-Ion
-
Nominal Voltage:
-
12V
-
Size:
-
342*173*220mm
-
Cycle life:
-
≥5000 times
-
Warranty:
-
5 years, 5years
-
OEM/ODM:
-
Accepatable
-
Battery Protection:
-
PCM/PCB
-
Container Material:
-
ABS
-
Certification:
-
CE/ROSH/MSDS/UN38.3

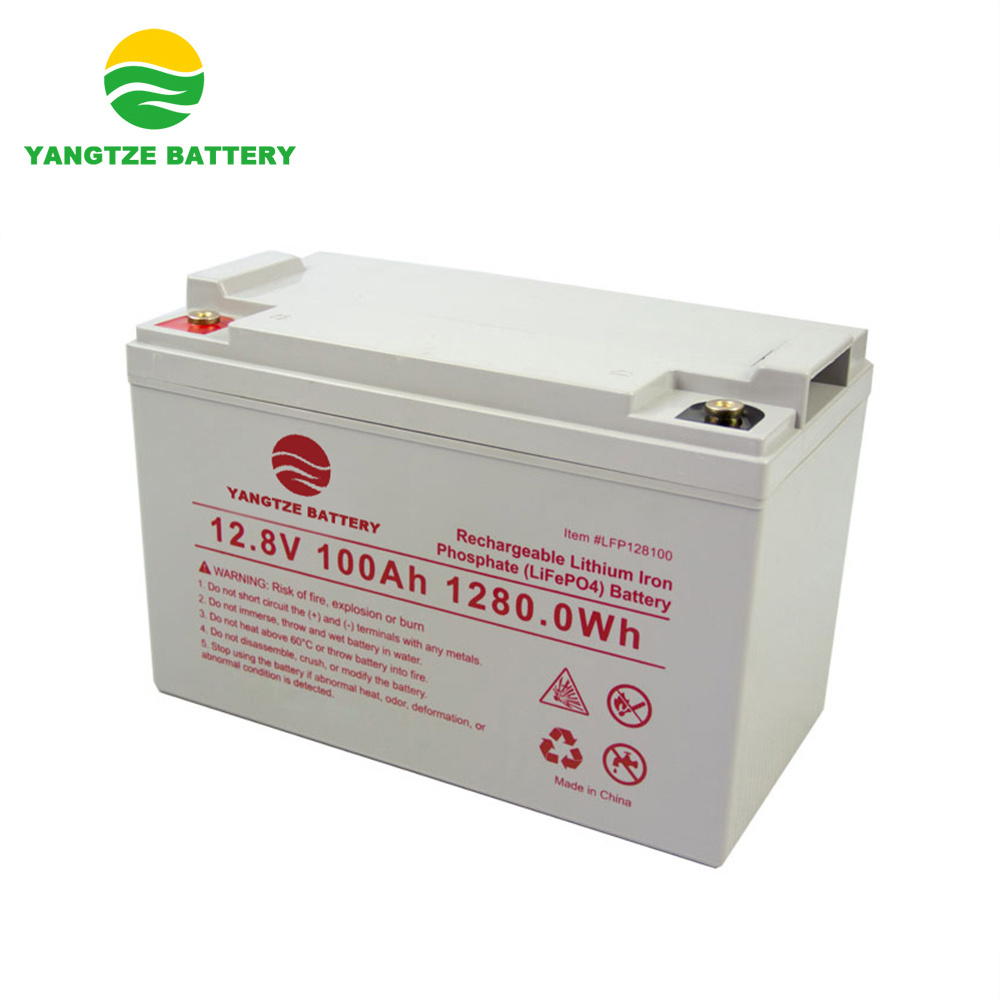

For 1 kwh power 12v 100ah lithium ion battery
Key Features :
♦
Longer Cycle Life
: Offers up to 20 times longer cycle life and five times longer float/calendar life than lead acid battery , helping to minimize replacement cost and reduce total cost of ownership
♦
Lighter Weight :
About 40% of the weight of a comparable lead acid battery . A " drop in" replacement for lead acid batteries
♦
Higher Power
: Delivers twice power of lead acid battery ,even high discharge rate, while maintaining high energy capacity
♦
Wider Temperature Range :
-20℃~60℃
♦
Superior Safety
: Lithium Iron Phosphate chemistry eleminates the risk of explosion or combustion due to high impact overcharging or short circuit situation
Applications :
♦Wheelchairs and scooters
♦Solar/wind energy storage
♦Back-up power for small UPS
♦Golf trolleys & buggies
♦Electric bikes
|
Electrical Characteristics |
Nominal Voltage | 12.8V |
| Nominal Capacity | 100Ah | |
| Energy | 1280Wh | |
| Internal Resistance(AC) | ≤20mΩ | |
| Cycle Life | >2000 cycles @ 1C 100% DOD | |
| Months Self Discharge | <3% | |
| Efficiency of Charge | 100% @0.5C | |
| Efficiency of Discharge | 96~99% @1C | |
| Standard Charge | Charge Voltage | 14.6±0.2V |
| Charge Mode | 0.2C to 14.6V, then 14.6V, charge current to 0.02C(CC/CV) | |
| Charge Current | 50A | |
| Max. Charge Current | 100A | |
| Charge Cut-off Voltage | 15.6±0.2V | |
| Standard Discharge | Continuous Current | 100A |
| Max.Pulse Current | 120A(<3s) | |
| Discharge Cut-off Voltage | 8V | |
| Envitonmental | Charge Temperature | 0℃ to 55℃ (32F to 131F) @60±25% Relative Humidity |
| Discharge Temperature | -20℃ to 60℃ (-4F to 140F) @60±25% Relative Humidity | |
| Storage Temperature | -20℃ to 45℃ (-4F to 113F) @60±25% Relative Humidity | |
| IP Class | IP65 | |
| Mechanical | Plastic Case | ABS |
| Approx.Dimensions | 342mm*173mm*220mm (13.47in.*6.81in.*8.66in.) | |
| Approx.Weight | 13.60kg (29.98lbs) | |
| Terminal | M8 |
