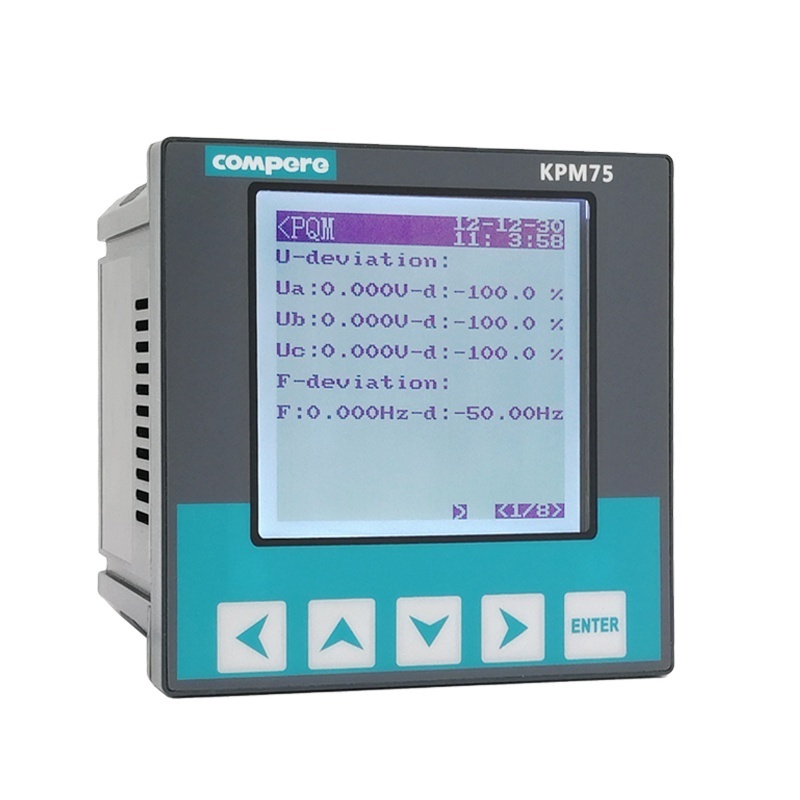

Technical Parameters - KPM75 three phase electronic reactive energy meter
|
|
|
|
|
||||
|
Accuracy Class
|
|
Voltage: 0.2; Current: 0.2; Frequency: 0.002 Hz; Power Factor: 1.0
|
|
|
||||
|
|
|
Active Power: 0.5; Reactive Power: 2.0
|
|
|
||||
|
|
|
Active Energy: 0.2S; Reactive Energy: 2.0
|
|
|
||||
|
Input
|
Rated Value
|
Voltage: 57.7/100V, 220/380V,380/660V
Current: 1A(0~1.2A), 5A (0~6A) |
|
|
||||
|
|
Overload
|
Voltage: Sustained Overload: 1.2 times of the rated value
|
|
|
||||
|
|
|
Momentary Overload: 2 times of the rated value, allows 1s
|
|
|
||||
|
|
|
Current: Sustained Overload: 1.2 times of the rated value
|
|
|
||||
|
|
|
Momentary Overload: 20 times of the rated value, allows 1s
|
|
|
||||
|
|
Frequency
|
45-60Hz
|
|
|
||||
|
Functional Module
|
Pulse Output
|
1
|
|
|
||||
|
|
Interface
|
1*RS485; Modbus RTU protocol; Baud Rate: 1200-38400 bps
Optional Profibus-DP protocol, 9600~12Mbps |
|
|
||||
|
Power Supply
|
Working Range
|
AC: 85-265V; DC: 80-300V
|
|
|
||||
|
|
Consumption
|
< 3VA
|
|
|
||||
|
Working Condition
|
Temperature
|
Operating: -25°C~+70°C. Storage: -30°C~ +75°C
|
|
|
||||
|
|
Humidity
|
5%~95% No condensation
|
|
|
||||
|
|
Altitude
|
<4000m
|
|
|
||||
|
Dimensions:
|
|
96×96×88mm
|
|
|
||||
