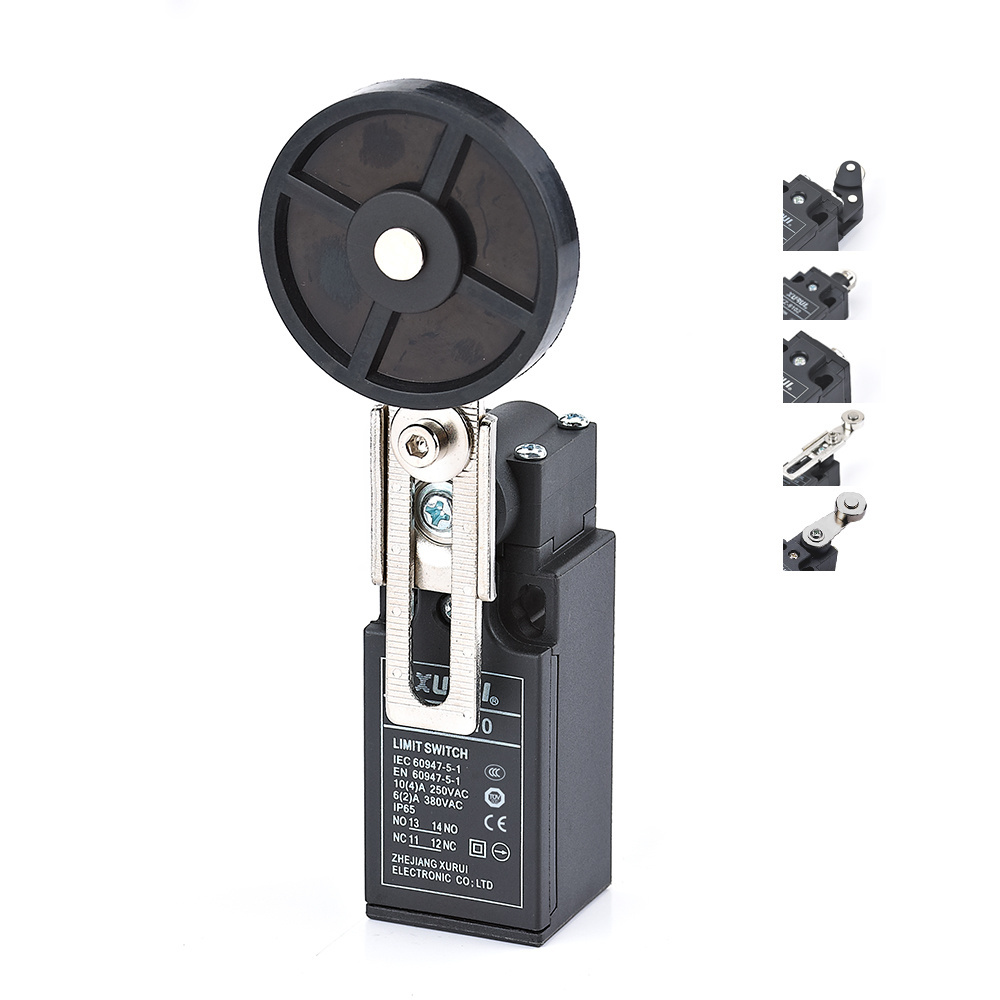

10A 250VAC safety elevator limit switch with TUV CE approvals

10A 250VAC safety elevator limit switch with TUV CE approvals

FOB Reference Price: Get Latest Price

≥10 Pieces

US $1.88

Free Inquiry

Customized Request

Product Details

{{item.text}}

Quick Details

Model Number:: XZ-9110 elevator limit switch

Protection Level:: IP65

Operating Temperature:: -10~70

Max. Current:: 10A

Certification:: CCC CE TUV Rohs, TUV CE

Operating speed:: 5mm-0.5m/s

Electrical life:: 100,000 times above

Mechanical life:: 1,000,000 times above

Lever Type:: Adjustable big roller arm type

Rating Load:: 10A 250VAC /6A 380VAC

Housing Material:: PA66 plastic

Contact Form:: 1NO1NC

Feature:: Double way double spring inner switch

Product Name:: safety elevator limit switch

Quick Details

Max. Voltage:: 250VAC/380VAC

Place of Origin:: Zhejiang, China

Brand Name:: XURUI or OEM

Model Number:: XZ-9110 elevator limit switch

Protection Level:: IP65

Operating Temperature:: -10~70

Max. Current:: 10A

Certification:: CCC CE TUV Rohs, TUV CE

Operating speed:: 5mm-0.5m/s

Electrical life:: 100,000 times above

Mechanical life:: 1,000,000 times above

Lever Type:: Adjustable big roller arm type

Rating Load:: 10A 250VAC /6A 380VAC

Housing Material:: PA66 plastic

Contact Form:: 1NO1NC

Feature:: Double way double spring inner switch

Product Name:: safety elevator limit switch

10A 250VAC safety elevator limit switch with TUV CE approvals

About Us

XURUI Electronics Co., Ltd was established in 2002, which is mainly engaged in the research, production and marketing of micro switch , limit switch , solid state relay , foot switch , toggle switch , proximity switch etc.

XURUI products have made their way to countries and regions such as the United States, Germany, South Korea, Japan, Turkey, Blegium and Egypt. The company also established sales agents as well as customer service centers in the United States, Italy, South Korea, and Egypt.

The company was approved by ISO9001, and a number of the products are also certified by other certification authorities such as CCC(China), CE(European Union), TUV(Germany),UL(US), KC(South Korea), and RoHS etc. Currently, the company boasts over fifty national patents, four patented products, and fifteen provincial-level new products etc.
