Quick Details
-
Dimension(L*W*H):
-
9700*2300*3300mm
-
Weight:
-
16000 KG
-
Drilling Diameter:
-
64-102mm
-
Drilling Depth:
-
5 meters
-
Mobility:
-
yes
-
Model:
-
KS311
-
Drilling depth:
-
42M
-
After-sales Service Provided:
-
Online Support
-
Boom Extension:
-
1200MM
-
Application:
-
Construction
-
Filtration:
-
10μ
-
Engine:
-
Disel Engine
-
Function:
-
Drilling Milling Machining
-
Feature:
-
High Drilling Efficiency
-
Hole Dia.:
-
64-76mm 89-102mm
Quick Details
-
Place of Origin:
-
Zhejiang, China
-
Brand Name:
-
KAISHAN
-
Voltage:
-
380V
-
Dimension(L*W*H):
-
9700*2300*3300mm
-
Weight:
-
16000 KG
-
Drilling Diameter:
-
64-102mm
-
Drilling Depth:
-
5 meters
-
Mobility:
-
yes
-
Model:
-
KS311
-
Drilling depth:
-
42M
-
After-sales Service Provided:
-
Online Support
-
Boom Extension:
-
1200MM
-
Application:
-
Construction
-
Filtration:
-
10μ
-
Engine:
-
Disel Engine
-
Function:
-
Drilling Milling Machining
-
Feature:
-
High Drilling Efficiency
-
Hole Dia.:
-
64-76mm 89-102mm
Products Description

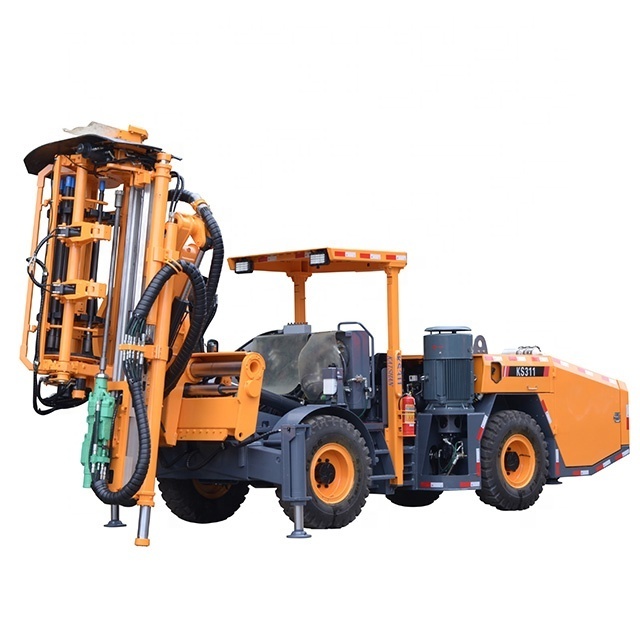

KS311 full hydraulic mining drilling rig can be mainly used for medium and deep hole mining drilling and blasting holes, and can also be used for anchor cable support drilling. Applicable roadway height 3.5m-5m, width 3.5m-5m. The drill arm support is turned over 360 degrees, and with the pendulum mechanism and translation guide rail, it can realize 360-degree drilling and 3-meter parallel drilling, which can meet various mining drilling requirements. The automatic rod changing system can accommodate 27 drill pipes, and the maximum drilling depth can reach 42 meters. The front and rear hydraulic top supports of the push beam ensure the stability of the drilling process. Equipped with a support rod cylinder, it can maintain the straightness of drilling to the greatest extent. It adopts a trolley-type operation table with good sightlines, and it can also be equipped with a wireless remote control. Closed hydraulically driven articulated mining chassis is suitable for small and medium-sized roadways. The high-frequency percussion rock drill adopts stepped pistons to optimize the transmission efficiency of shock waves, increase drilling speed, reduce drilling tool consumption and improve equipment integrity.
Product Paramenters
|
Dimensions and Weight
|
|
|
|
|||
|
Length
|
9700mm
|
|
|
|||
|
Width
|
2300mm
|
|
|
|||
|
Height
|
3300 mm
|
|
|
|||
|
Weight
|
16000 kg
|
|
|
|||
|
Travelling speed, level
|
10 km/h
|
|
|
|||
|
Climbing capacity
|
14°
|
|
|
|||
|
Safe protection
|
|
|
|
|||
|
Noise level
|
<100 dB(A)
|
|
|
|||
|
Lifting safety ceiling
|
Meet the requirements of FOPS and ROPS.
|
|
|
|||
|
Drilling system
|
|
|
|
|||
|
Rock drilling
|
1×HC95LH
|
|
|
|||
|
Impact power
|
24KW
|
|
|
|||
|
Impact flow
|
138L/min
|
|
|
|||
|
Impact pressure
|
200bar
|
|
|
|||
|
Max. rotary pressure
|
210bar
|
|
|
|||
|
Impact frequency
|
48-57hz
|
|
|
|||
|
Torque
|
955Nm
|
|
|
|||
|
Hole diameter
|
51-64mm
|
64-76mm
|
89-102mm
|
|||
|
Drill rod
|
R32
|
T38
|
T45
|
|||
|
Rod lenght
|
1220mm
|
1525mm
|
1830mm
|
|||
|
Boom length
|
3200mm
|
3500mm
|
3800
|
|||
|
Feed extension
|
900mm
|
1200mm
|
1200mm
|
|||
|
Drilling depth
|
30m
|
36m
|
36m
|
|||
|
Boom
|
Down 20° hypsokinesis65°
|
|
|
|||
|
Beam ratation
|
360°
|
|
|
|||
|
Drill area
|
±1500mm
|
|
|
|||
|
Electric Hydraulic pump station
|
|
|
|
|||
|
Electric motor
|
75kw
|
|
|
|||
|
Impact- propelling-Boom
|
Variable axial piston pump
|
|
|
|||
|
Turn around
|
Gear pumps
|
|
|
|||
|
Filter precision
|
10μ
|
|
|
|||
|
Hydraulic oil tank
|
240L
|
|
|
|||
|
Hydraulic cooler
|
Water cooler
|
|
|
|||
|
Working pressure
|
380V
|
|
|
|||
|
Frequency
|
50Hz
|
|
|
|||
|
Starting method
|
Star - triangle
|
|
|
|||
|
Cable reel
|
1×K440
|
|
|
|||
|
Cable capacity of the reel
|
80m
|
|
|
|||
|
Diameter of cable
|
32mm
|
|
|
|||
|
Cable specifications
|
3×50+3G10
|
|
|
|||
|
Air and water system
|
|
|
|
|||
|
Air Compressor
|
1×JN4
|
|
|
|||
|
Capacity
|
0.5m3/min
|
|
|
|||
|
Pressure
|
5-7bar
|
|
|
|||
|
Device of shank lubrication
|
Four-wheel drilve
|
|
|
|||
|
Air consumption for lubrication
|
0.3m3/min
|
|
|
|||
|
Oil consumption for lubrication
|
180-250g/h
|
|
|
|||
|
Water Pump
|
1×CR10
|
|
|
|||
|
Power
|
5.5kw
|
|
|
|||
|
Pump Capacity
|
8m3/h
|
|
|
|||
|
Carrier
|
|
|
|
|||
|
Diesel engine
|
Cummins QSB3.9-C125 93KW/2200rpm
|
|
|
|||
|
Exhaust purification
|
Exhaust catalyst
|
|
|
|||
|
Drive system
|
four-wheel drive
|
|
|
|||
|
Tyres
|
12.00-20
|
|
|
|||
|
knuckle mechanic
|
Articulated steering ±40°
|
|
|
|||
|
Travel brake
|
Hydraulic brake
|
|
|
|||
|
Parking brake
|
Wet multidisc brake
|
|
|
|||
|
Fuel tank
|
90L
|
|
|
|||
