Quick Details
-
Design Printing:
-
Offer Printing
-
Material:
-
Glassine Paper
-
Feature:
-
Waterproof
-
Use:
-
Carton Sealing
-
Place of Origin:
-
Fujian, China
-
Brand Name:
-
JL3
-
Model Number:
-
JLW-325
-
Product name:
-

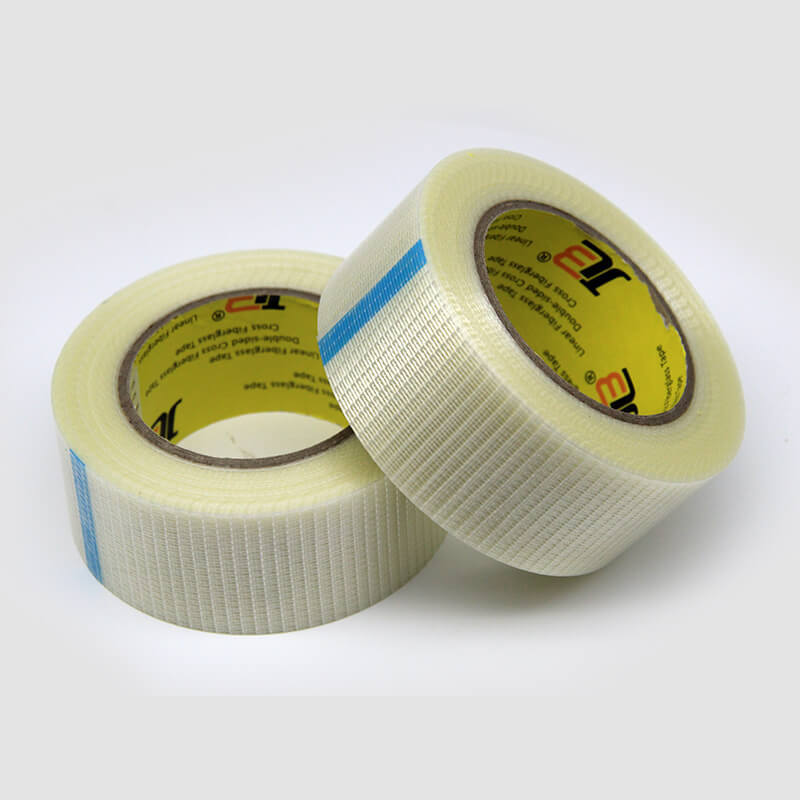

Custom Double-Sided Bi-Directional Filament Tape
-
Certificates:
-
REACH/ROHS/ISO18001/ISO9001
-
Sample:
-
Free sample are available
-
Type:
-
Self-Adhesive reinforced fiber glass Tape
-
Backing:
-
BOPP
-
Color:
-
Clear
-
Thickness:
-
0.2mm
-
Reinforce material:
-
110 Fiberglass
-
Tensile Strength:
-
200 N/25mm
-
Custom Logo::
-
available
Quick Details
-
Adhesive:
-
Rubber
-
Adhesive Side:
-
Single Sided
-
Adhesive Type:
-
Pressure Sensitive, Hot Melt
-
Design Printing:
-
Offer Printing
-
Material:
-
Glassine Paper
-
Feature:
-
Waterproof
-
Use:
-
Carton Sealing
-
Place of Origin:
-
Fujian, China
-
Brand Name:
-
JL3
-
Model Number:
-
JLW-325
-
Product name:
-
Custom Double-Sided Bi-Directional Filament Tape
-
Certificates:
-
REACH/ROHS/ISO18001/ISO9001
-
Sample:
-
Free sample are available
-
Type:
-
Self-Adhesive reinforced fiber glass Tape
-
Backing:
-
BOPP
-
Color:
-
Clear
-
Thickness:
-
0.2mm
-
Reinforce material:
-
110 Fiberglass
-
Tensile Strength:
-
200 N/25mm
-
Custom Logo::
-
available
|
Physical Properties |
Standard |
Metric |
Test Method |
|
|
Reinforcement |
Fiberglass |
|||
|
Adhesive |
Synthetic Rubber |
|||
|
Backing |
BOPP |
|||
|
Color |
Clear |
|||
|
Total Thickness |
4.7 mils |
0.12 mm |
ASTM D-3652 |
GB/T7125 |
|
Peel Adhesion |
79 oz/in |
22 N/25mm |
ASTM D-3330 |
GB/T2792 |
|
Holding Power |
≥24h |
≥24h |
ASTM D-3654 |
GB/T4851 |
|
Tensile strength |
90 lbs/in |
400 N/25mm |
ASTM D-3759 |
GB/T7753 |
|
Elongation at Break |
5% |
5% |
ASTM D-3759 |
GB/T7753 |
|
Service Tem.--Mini |
23 ℉ |
-5 ℃ |
BC/BD-220SE |
BC/BD-220SE |
|
Service Tem.--Max |
158 ℉ |
70 ℃ |
DHG-9055A |
DHG-9055A |
Applications
JL3 brand filament tapes are used in many different applications in various markets. The product line includes general purpose and specialty tapes in both synthetic rubber and hot melt adhesive to cover the broadest scope of applications. From general strapping and bundling, to applications where clean-removability is a requirement, JL3 has a tape that will meet the performance requirements.
JLW-323 filament tape is suitable for the self-adhesion of decoration articles; exclusively for foam sealing strip of windows and doors.
Related Products (Similar Item Or Complementary Item)-04
Other JL3 Brand Bi-directional / Double Sided / Filament Tape
SR: Synthetic Rubber
|
Item No. |
Adhesive |
Carrier / Backing |
Color |
Thickness |
Peel Adhesion |
Tensile Strength |
|||
|
mm |
mil |
N/in |
oz/in |
N/in |
lbs/in |
||||
|
JLW-2070 |
SR |
Fiberglass / PET |
Clear |
0.13 |
5.5 |
18 |
65 |
550 |
124 |
