Quick Details
-
Rolling thinckness:
-
0.3-0.8mm
-
Place of Origin:
-
China
-
Voltage:
-
380V 50Hz 3phases or as your requirement
-
Weight:
-
3000 kg
-
Marketing Type:
-
New Product 2021
-
Product name:
-
gutter Sheet Forming Machine
-
After-sales Service Provided:
-
Engineers
-
Usage:
-
Building
-
Raw material:
-
PPGI
-
Name:
-
Accessary Roll Forming Machine
-
Roller material:
-
45#steel Chrome Plated
-
Cutting blade material:
-
Cr 12 High Grade Steel
-
Keywords:
-
Colored Steel Roof Making Machine
-
Control system:
-
plc
-
Main frame:
-
300H Steel
Quick Details
-
Type:
-
Tile Forming Machine
-
Tile Type:
-
Colored Glaze Steel
-
Production Capacity:
-
10-15m/min
-
Rolling thinckness:
-
0.3-0.8mm
-
Place of Origin:
-
China
-
Voltage:
-
380V 50Hz 3phases or as your requirement
-
Weight:
-
3000 kg
-
Marketing Type:
-
New Product 2021
-
Product name:
-
gutter Sheet Forming Machine
-
After-sales Service Provided:
-
Engineers
-
Usage:
-
Building
-
Raw material:
-
PPGI
-
Name:
-
Accessary Roll Forming Machine
-
Roller material:
-
45#steel Chrome Plated
-
Cutting blade material:
-
Cr 12 High Grade Steel
-
Keywords:
-
Colored Steel Roof Making Machine
-
Control system:
-
plc
-
Main frame:
-
300H Steel
Products Description

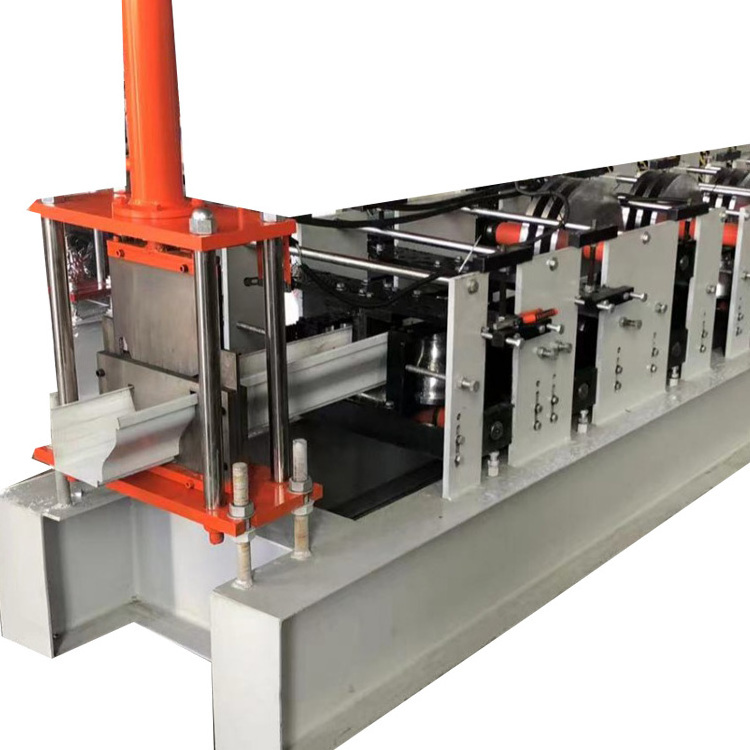

Portable Seamless Gutter Machine Steel Gutter Making Machine
Our company specializes in the production of stainless steel color steel plates, stainless steel plates, and precision plate forming machines. U-shaped equipment is one of our equipments, we can make samples according to your design
|
Description
|
Explaination
|
|
Working speed
|
10-15 m/min（Shear time is not included）
|
|
Pressed plate thickness
|
0.3-3mm
|
|
Control mode
|
Panasonic PLC
|
|
Discharging rack
|
3T manual decoiler
|
|
Number of molding passes
|
12 lanes（Adjust according to the version）
|
|
Roll material
|
After finishing, the surface of 45# steel is chrome plated.
|
|
Shaft material and diameter
|
45# Steel finishing，Shaft diameter is￠85mm
|
|
Main engine power
|
5.5kw
|
|
Power of hydraulic station
|
4kw
|
|
Hydraulic pressure
|
12Mpa
|
|
Cutting mode
|
Shear after forming
|
|
Scissors material
|
Cr12Mov， quench HRC 58-62℃
|
|
Length tolerance
|
3m±1.5mm
|
|
Voltage
|
380V, 50HZ,3 phase（According to customer requirements can be adjusted）
|
|
Transmission mode
|
1.0 inch single row chain（Adjust according to the version）
|
|
Equipment form
|
slab-wall structure
|
|
Equipment color
|
blue and yellow
|
|
Equipment size
|
L*W*H— 8m*1.5m*1.2m
|
|
Date of delivery
|
80 days
|
|
Payment method
|
30% advance charge，70% pay off on delivery
|
