220v Black White Ceramic Infrared Heater Plate Sauna Heating Element

220v Black White Ceramic Infrared Heater Plate Sauna Heating Element

FOB Reference Price: Get Latest Price

≥1 Pieces

US $10

≥5 Pieces

US $9

≥10 Pieces

US $8

≥20 Pieces

US $7

Free Inquiry

Customized Request

Product Details

{{item.text}}

Quick Details

Place of Origin:: Jiangsu, China

Brand Name:: Songtai

Dimension(L*W*H):: packed

Weight:: 1 KG

Name:: ceramic infrared heater

Voltages:: 24V/48V/120V/230V/380V/180V

Power:: 125-1500w

Heating wire:: Nickle Chorme Ni80Cr20

shape:: Curve/flat/hollow

temperature:: 300°C to 700°C

radiation distance:: 100 mm to 250 mm

Useful wave length:: 2-10 microns

colour:: White/black/yellow

Quick Details

Type:: Infrared Heater

Power Source:: Electric

Voltage:: 220-240V

Place of Origin:: Jiangsu, China

Brand Name:: Songtai

Dimension(L*W*H):: packed

Weight:: 1 KG

Name:: ceramic infrared heater

Voltages:: 24V/48V/120V/230V/380V/180V

Power:: 125-1500w

Heating wire:: Nickle Chorme Ni80Cr20

shape:: Curve/flat/hollow

temperature:: 300°C to 700°C

radiation distance:: 100 mm to 250 mm

Useful wave length:: 2-10 microns

colour:: White/black/yellow

Welcome to cooperate with us based on win-win situations. Please feel free to contact us .

Products Description

ceramic infrared heater

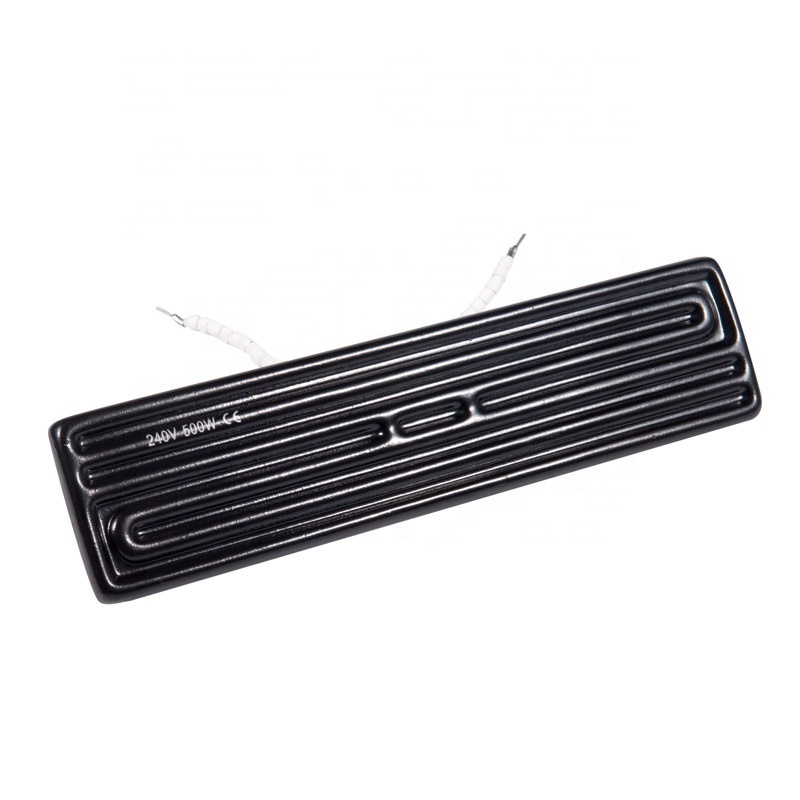

220v Black White Ceramic Infrared Heater Plate Sauna Heating Element for vacuum forming machine is efficient, robust heaters which provide long wave infrared radiation. They are used in a diverse range of industrial processes such as heaters for thermoforming, and as heaters for paint curing, printing and drying. They are also used very effectively in infrared outdoor heaters and infrared saunas.

Dimension（mm）	240 x 60, 240 x 80, 120 x 120, 120 x 60, 60 x 60 etc.
Shapes	Trough, Hollow and Flat
Insulation Material	Ceramic
Conductor Material	Nichrome Wire
Voltage	220 volts, 380 volts, 110 volts
Wattage	250 watts - 1000 watts
Lead Connection	Ceramic Bead Lead Wire 150mm
Thermocouple	Optional, K or J Type
Operating Temperature	300C - 700C
Recommended Radiation Distance	100mm - 200mm

Size:60*60mm

Type:Trough,Hollow and Flat
Vottage:120/220/230/240/480V
Wattage:125-1000W
TC:Optional K or J Type

Size:80*80mm

Type:Trough,Hollow and Flat
Vottage:120/220/230/240/480V
Wattage:125-1000W
TC:Optional K or J Type

Size:122*122mm

Type:Hollow and Flat
Vottage:120/220/230/240/480V
Wattage:125-750W
TC:Optional K or J Type

Size:122*60mm

Type:Trough,Hollow and Flat
Vottage:120/220/230/240/480V
Wattage:125-500W
TC:Optional K or J Type

Size:245*60mm

Type:Trough,Hollow and Flat
Vottage:120/220/230/240/480V
Wattage:125-1000W
TC:Optional K or J Type

Size:245*80mm

Type:Trough,Hollow and Flat
Vottage:120/220/230/240/480V
Wattage:125-1000W
TC:Optional K or J Type

When you order, pls provide above this;

1.The ceramic heater type: Trough, Hollow and Flat
2.The ceramic heater size:245*60mm,245*80mm and other can be customized.
3.Vottage :380V,240V, 220V,200V,110V and other can be customized.
4.Wattage :125W,150W,200W,250W,300W and other can be customized.

Applications

<1>.Heating in PH environment (for example: Footwear processing, tape, plywood heating).
<2>.Stove machine with major vibration or impact (for example: Vacuum forming machine , Compression Molding Machine).
<3>. Short distance heating (for example: Printing ink dryer, PCB repair station, Electric heating tables).
<4>.Heating in vertical or half round array (for example: Angle iron, Aluminum windows paint stove) .
