Quick Details
-
Place of Origin:
-
Hebei, China
-
Brand Name:
-
JY
-
Voltage:
-
220/380V/600
-
Dimension(L*W*H):
-
Customer Request
-
Core Components:
-
whole machine
-
After-sales Service Provided:
-
Engineers available to service machinery overseas, Online support
-
Name:
-
chain conveyor
-
Model number:
-
FU 150-410
-
Certification:
-
ISO, ISO
-
Usage:
-
Material Transimission
-
Application:
-
Cement
-
Color:
-
Color
-
Feature:
-
Simple Operation
-
Keyword:
-
scraper conveyor
-
Capacity:
-
10-240m3/h
Quick Details
-
Power:
-
11 KW
-
Warranty:
-
1 Year
-
Width or Diameter:
-
oem
-
Place of Origin:
-
Hebei, China
-
Brand Name:
-
JY
-
Voltage:
-
220/380V/600
-
Dimension(L*W*H):
-
Customer Request
-
Core Components:
-
whole machine
-
After-sales Service Provided:
-
Engineers available to service machinery overseas, Online support
-
Name:
-
chain conveyor
-
Model number:
-
FU 150-410
-
Certification:
-
ISO, ISO
-
Usage:
-
Material Transimission
-
Application:
-
Cement
-
Color:
-
Color
-
Feature:
-
Simple Operation
-
Keyword:
-
scraper conveyor
-
Capacity:
-
10-240m3/h

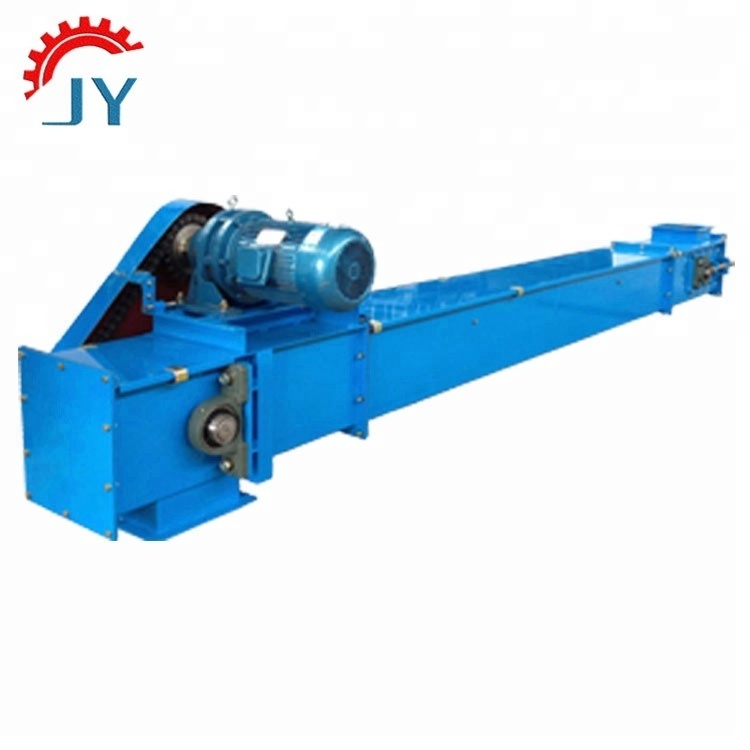

China factory high quality overhead drag chain conveyor
|
Model |
Tank Width mm |
Ideal Granularity mm |
Max Granularity mm |
Speed m/s |
0.17 |
0.21 |
0.26 |
0.36 |
040 |
0.53 |
|
FU150 |
150 |
≤4 |
≤8 |
Capacity m3/h |
8 |
10 |
15 |
20 |
25 |
|
|
FU200 |
200 |
≤5 |
≤10 |
16 |
22 |
30 |
40 |
58 |
|
|
|
FU270 |
270 |
≤7 |
≤14 |
25 |
40 |
50 |
70 |
90 |
110 |
|
|
FU350 |
350 |
≤9 |
≤18 |
|
50 |
80 |
110 |
140 |
180 |
|
|
FU410 |
410 |
≤11 |
≤21 |
|
80 |
120 |
160 |
180 |
240 |
|
Features |
|
|
1 |
Reasonable structure, novel design, advanced technology and complete series. |
|
2 |
Fully-enclosed casing, good sealing performance, safe operation, and reliable operation . |
|
3 |
The chain conveyor chain is made of alloy steel processed by advanced heat treatment methods with long service life and extremely low maintenance rate. |
|
4 |
Large conveying capacity, conveying capacity up to 11m3/h. |
|
5 |
The transmission energy consumption is low. With the help of the internal friction of the material, the material is driven to pull, saving electricity and durability. |
|
6 |
Import and export are flexible. Elevated, ground, pit, level, and climbing (≤ 15°) can be installed. The length of the conveyor can be designed according to the user. |
Composition:
The chain conveyor is mainly composed of the first section, the middle section, the optional section, the tail section and the conveyor chain, the import and export materials, and the drive. The drive is divided into two types: left and right, and the drive type is selected according to the delivery volume and the delivery length. The feed inlet is divided into three types: the upper feed inlet, the lateral feed inlet, the two feed inlets, the discharge outlet is the head outlet, and the intermediate outlet and the middle outlet are also available for users to use.
Structural Drawing:
Please click for more information
