25KG air hammer is one kind of the free forge hammer, this forge hammer is widely used for general forging works, such as
drawing-out, upsetting, chiseling ,forge, welding, bending and twisting. It is also used for forge in open forge-model, but it
can’t be used for the closed forge-model, because the force stress in closed forge-model is too strong, and it may cause the
hammer bar guide or the working cylinder damaged.
- Product Details
- {{item.text}}
Quick Details
-
Voltage:
-
220
-
Power:
-
2.2
-
Dimension(L*W*H):
-
1200/550/1250
-
Weight (KG):
-
155
-
Name:
-
Pneumatic Air Power Hammer/Forging Hammer/Blacksmith Forging Hammer
-
Product name:
-
Air Hammer
-
Falling parts weight:
-
20kg
-
Max striking capacity:
-
400KG/M
-
Dia of working cylinder:
-
165mm
-
Dia. of compression cylinder:
-
175mm
-
No. of striking per minute:
-
250Times/min
-
Surface size of upper block (L/W):
-
100/50mm
-
Max forge capacity of square steel:
-
40/40mm
-
Model:
-
Y132M-4
Quick Details
-
Place of Origin:
-
Jiangsu, China
-
Brand Name:
-
DRC
-
Machine Type:
-
Air Hammer
-
Voltage:
-
220
-
Power:
-
2.2
-
Dimension(L*W*H):
-
1200/550/1250
-
Weight (KG):
-
155
-
Name:
-
Pneumatic Air Power Hammer/Forging Hammer/Blacksmith Forging Hammer
-
Product name:
-
Air Hammer
-
Falling parts weight:
-
20kg
-
Max striking capacity:
-
400KG/M
-
Dia of working cylinder:
-
165mm
-
Dia. of compression cylinder:
-
175mm
-
No. of striking per minute:
-
250Times/min
-
Surface size of upper block (L/W):
-
100/50mm
-
Max forge capacity of square steel:
-
40/40mm
-
Model:
-
Y132M-4
Product Description
Pneumatic Air Power Hammer/Forging Hammer/Blacksmith Forging Hammer
Pneumatic Air Power Hammer/Forging Hammer/Blacksmith Forging Hammer
The main performance characteristics:
1. Powered by compressed air, meet the needs of production safety, tapping force against frequency by adjusting the air
pressure control,It is used for forging and shaping work pieces .
2.The use of the body is made of cast iron, large tonnage air hammer and anvil materials made of steel,
3.Simple mechanism ,Is not easy to damage
It is easy to operate through controlling the travel of top swage.
pressure control,It is used for forging and shaping work pieces .
2.The use of the body is made of cast iron, large tonnage air hammer and anvil materials made of steel,
3.Simple mechanism ,Is not easy to damage
It is easy to operate through controlling the travel of top swage.
Blacksmith Air Hammer Application:
Applicable to all kinds of free forging: such as extension, upsetting, punching, shearing, forging welding, torsion and bending
using a die cushion can be a variety of open die forging.
using a die cushion can be a variety of open die forging.

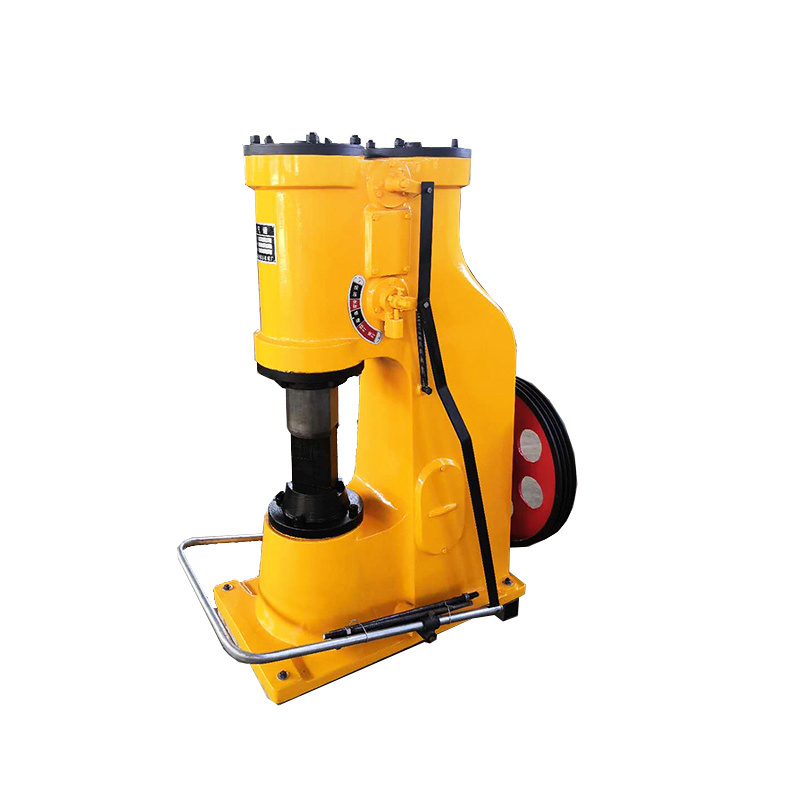

Metal Air Hammer C41-25kg power hammer
Metal Air Hammer C41-25kg power hammer
|
NAME
|
UNIT
|
SPECIFICATION
|
|
Falling parts weight
|
KG
|
20
|
|
Max striking capacity
|
KG/M
|
400
|
|
Dia of working cylinder
|
mm
|
165
|
|
Dia. of compression cylinder
|
mm
|
175
|
|
No. of striking per minute
|
Times/min
|
250
|
|
Distance between lower working block and guide lower parts
|
mm
|
240
|
|
Distance between hammer bar center to machine body
|
mm
|
200
|
|
Surface size of upper block (LXW)
|
mm
|
100X50
|
|
Surface size of lower block(LXW)
|
mm
|
100X50
|
|
Max forge capacity of round steel diameter
|
mm
|
45
|
|
Max forge capacity of square steel
|
mm
|
40X40
|
|
Overall size(LXWXH)
|
mm
|
1200X550X1250
|
|
Motor
|
|
|
|
Model
|
|
Y132M-4
|
|
Power
|
KW
|
2.2
|
|
Speed
|
Per minute
|
1440
|
