- Product Details
- {{item.text}}
Quick Details
-
Throat Depth (mm):
-
0.01 mm
-
Width of Working Table (mm):
-
400 mm
-
Dimension:
-
730*480*740 mm
-
Place of Origin:
-
China
-
Brand Name:
-
zzknown
-
Year:
-
new
-
Weight (KG):
-
260
-
Motor Power (kw):
-
3 kw
-
Warranty of core components:
-
2 years
-
Model:
-
BNT68
-
Crimping Range:
-
6-51 mm
-
Quantity Of Dies:
-
10 sets
-
3.Accuracy:
-
0.01mm
-
Output Volume Of Pump:
-
2.5L/5L/10L
-
System Pressure:
-
31.5mpa
-
Motor Power:
-
3kw/4kw
-
3kw/4kw:
-
600 t
-
Work efficiency:
-
200 pcs/h
-
Maximum Open Diameter:
-
114 mm
Quick Details
-
Machine Type:
-
Torsion Bar
-
Length of Working Table (mm):
-
2500 mm
-
Slider Stroke (mm):
-
55 mm
-
Throat Depth (mm):
-
0.01 mm
-
Width of Working Table (mm):
-
400 mm
-
Dimension:
-
730*480*740 mm
-
Place of Origin:
-
China
-
Brand Name:
-
zzknown
-
Year:
-
new
-
Weight (KG):
-
260
-
Motor Power (kw):
-
3 kw
-
Warranty of core components:
-
2 years
-
Model:
-
BNT68
-
Crimping Range:
-
6-51 mm
-
Quantity Of Dies:
-
10 sets
-
3.Accuracy:
-
0.01mm
-
Output Volume Of Pump:
-
2.5L/5L/10L
-
System Pressure:
-
31.5mpa
-
Motor Power:
-
3kw/4kw
-
3kw/4kw:
-
600 t
-
Work efficiency:
-
200 pcs/h
-
Maximum Open Diameter:
-
114 mm
Please Note
The prices on the website are machine prices and do not include shipping. The final price of transportation should be constrained according to the actual cost, please confirm with us before you place your order.
|
Technical data(2inch) |
|
|
Model |
BNT68 |
|
Crimping Range |
6-51 mm |
|
Quantity Of Dies |
10 sets |
|
3.Accuracy |
0.01mm |
|
Output Volume Of Pump |
2.5L/5L/10L |
|
System Pressure |
31.5mpa |
|
Motor Power |
3kw/4kw |
|
Voltage |
220v/240v/380v/415v(optional) |
|
Crimping Force |
600 t |
|
Work efficiency |
200 pcs/h |
|
Maximum Open Diameter |
114 mm |
|
The Max Open Tolerance |
30 ±mm |
|
Machine Dimension |
730*480*740 mm |
|
Package Dimension |
800*530*870 mm |
|
Net Weight |
245 kg |
|
Gross weight |
260 kg |
|

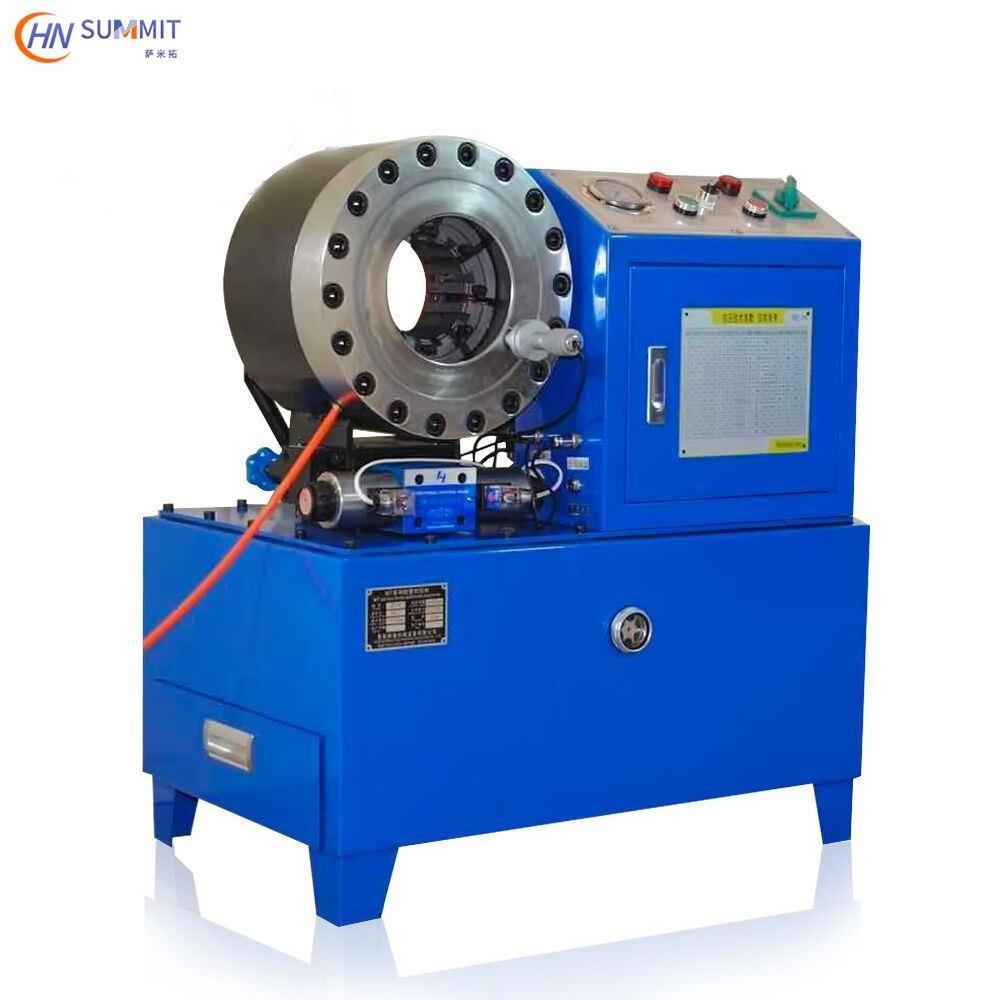

Hose Crimping Machine BNT68 Dies |
||
|
NO.(mm) |
Crimp Range(mm) |
Length(mm) |
|
15 |
15-19 |
60 |
|
19 |
19-23 |
60 |
|
23 |
23-26 |
60 |
|
26 |
26-31 |
60 |
|
31 |
31-36 |
70 |
|
36 |
36-41 |
70 |
|
41 |
41-47 |
70 |
|
47 |
47-55 |
80 |
|
55 |
55-60 |
80 |
|
60 |
60-63 |
80 |
FAQ
Q1 : Are you trading company or manufacturer ?
A1 : We are factory.
Q2 : How long is your delivery time?
A2 : Generally it is 5-10 days if the goods are in stock. or it is 15-20 days if the goods are not in stock, it is according to
quantity.
Q3 : Do you provide samples ? is it free or extra ?
A3 : Yes, we could offer the sample for free charge but do not pay the cost of freight.
Q4 : What is your terms of payment ?
A4 : Payment<=10000USD, 100% in advance. Payment>=10000USD, 30% T/T in advance ,balance before shippment.
If you have another question, pls feel free to contact us as below:
Q5 : What is our advantages?
A5 : Competitive price: We can meet your budget and best-selling business very well.
OEM Accepted: We can produce customized design.
Good Service: We treat clients as friends and provide problem solving anytime you need.
Good Quality: We have strict quality control system. Good reputation in the market.
Fast & Delivery: We have big discount from forwarder (Long-term Contract).
Door To Door Service.
Q6 : What is your loading port?
A6 : Shanghai Port, Tianjin Port, Qingdao Port,Ningbo port,Guangzhou port.
