Quick Details
-
Place of Origin:
-
Zhejiang, China
-
Brand Name:
-
RuiFeng
-
Model Number:
-
RF
-
Product type:
-
Knob Rotary Switch
-
Application:
-
General-Purpose
-
Mounting hole diameter:
-
19 mm
-
Terminal type:
-
Pin Teminal
-
Feature:
-
Water-proof
-
Operating temperature:
-
-25 ~+55
-
Operation type:
-
Turn
-
Switch combination:
-
2 position or 3 position
-
Material:
-
Brass Nickel Plated/stainless steel
-
Illuminated type:
-
LED available
-
Certification:
-
CCC
Quick Details
-
Protection Level:
-
IP65
-
Max. Current:
-
3A
-
Max. Voltage:
-
250VAC
-
Place of Origin:
-
Zhejiang, China
-
Brand Name:
-
RuiFeng
-
Model Number:
-
RF
-
Product type:
-
Knob Rotary Switch
-
Application:
-
General-Purpose
-
Mounting hole diameter:
-
19 mm
-
Terminal type:
-
Pin Teminal
-
Feature:
-
Water-proof
-
Operating temperature:
-
-25 ~+55
-
Operation type:
-
Turn
-
Switch combination:
-
2 position or 3 position
-
Material:
-
Brass Nickel Plated/stainless steel
-
Illuminated type:
-
LED available
-
Certification:
-
CCC

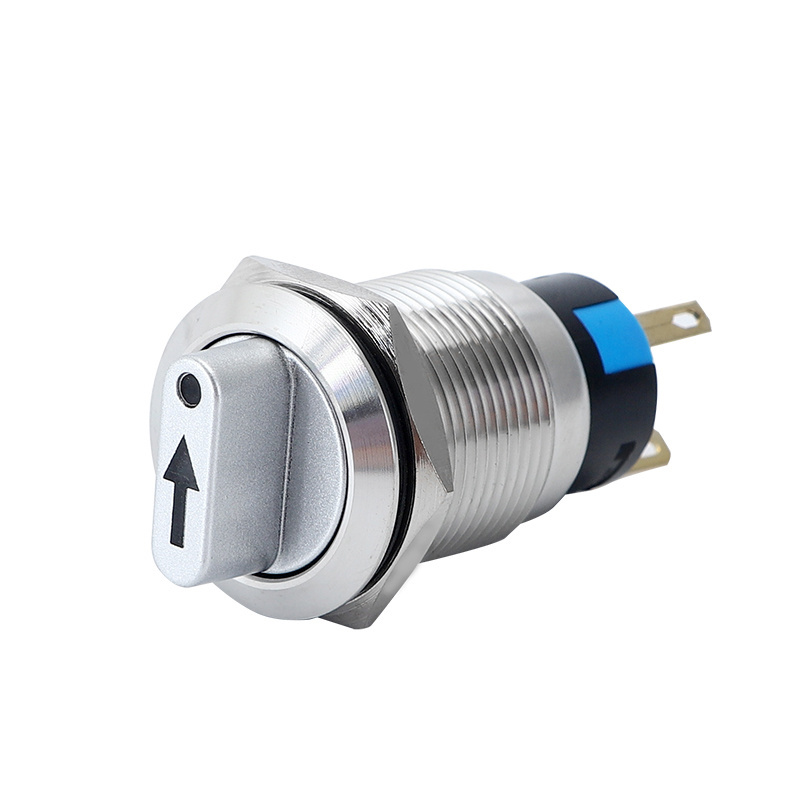

19mm 3 Position SPST DPDT Illuminated LED Mini Electrical Metal Knob Selector Rotary Switch
Diametar:
19mm
Switch rating:
3
A/250VAC
Switch combination: 1NO 1NC / 2 NO 2NC
Operation type: 2 position or 3 position
Head shape: Selector
Shell Material:
Brass Nickel Plated/stainless steel
waterproof grade:
IP67 Waterproof & IK10 Protection: Rustproof, can be used in wet or dusty environment
| Model description | |
| KW | KEWEI code |
| Mounting hole diameter |
6mm,8mm,10mm,12mm,16mm,19mm, 22mm,25mm,28mm,30mm,35mm,40mm |
| Shell material | S :Stainless Steel N : Brass plating nickel A :Aluminum oxide |
| Head shape |
P -Flat G -High Q -Domed M -mushroom J -Emergency X2 -Two bit knob X3 - Three bit knob Y2 -Two bit key Y3 -Three bit key |
| Switch Combination | 10-1NO/NC 11-1NO1NC 22:2NO2NC |
| Connection type | Y: Solder terminal J: Screw terminal |
| Operation types |
F :MOMENTARY (RESET) Z :LATCHING(MAINTAINED) |
| LED illumination types |
E :Ring LED E+DY : Ring +Power symbol LED DY : Power symbol LED D :Dot LED CL :Customized LED |
| LED Color |
Yellow Blue Red Green Orange White BI-Color,TRI-Color R G Y O B W P R G R B |
| LED Voltage | 3V/5V/6V/12V/24V/36V/48V/110V/220V |
