Quick Details
-
Place of Origin:
-
Guangdong
-
Brand Name:
-
LC
-
Dimensions(L*W*H):
-
L2950*W1160*H1865mm
-
Weight:
-
2500 KG
-
Certification:
-
CE
-
Max. Print Area:
-
diameter 100mm
-
Model:
-
LC-616CNC
-
Max printing area:
-
diameter 100mm height 280mm
-
Control System:
-
BECKHOFF
-
Main motor drive:
-
servo motor
-
Control circuit voltage:
-
24VDC
-
Max printing speed:
-
2700pcs/h
-
Total power:
-
45KW
-
Air pressure requirements:
-
5~6BAR
-
Continuous mode:
-
Yes
-
Oil return knife up and down stroke:
-
Cylinder control 20mm, adjustable screw stroke 50mm
Quick Details
-
Condition:
-
New
-
Color & Page:
-
Multicolor
-
Voltage:
-
380V
-
Place of Origin:
-
Guangdong
-
Brand Name:
-
LC
-
Dimensions(L*W*H):
-
L2950*W1160*H1865mm
-
Weight:
-
2500 KG
-
Certification:
-
CE
-
Max. Print Area:
-
diameter 100mm
-
Model:
-
LC-616CNC
-
Max printing area:
-
diameter 100mm height 280mm
-
Control System:
-
BECKHOFF
-
Main motor drive:
-
servo motor
-
Control circuit voltage:
-
24VDC
-
Max printing speed:
-
2700pcs/h
-
Total power:
-
45KW
-
Air pressure requirements:
-
5~6BAR
-
Continuous mode:
-
Yes
-
Oil return knife up and down stroke:
-
Cylinder control 20mm, adjustable screw stroke 50mm
Product Description

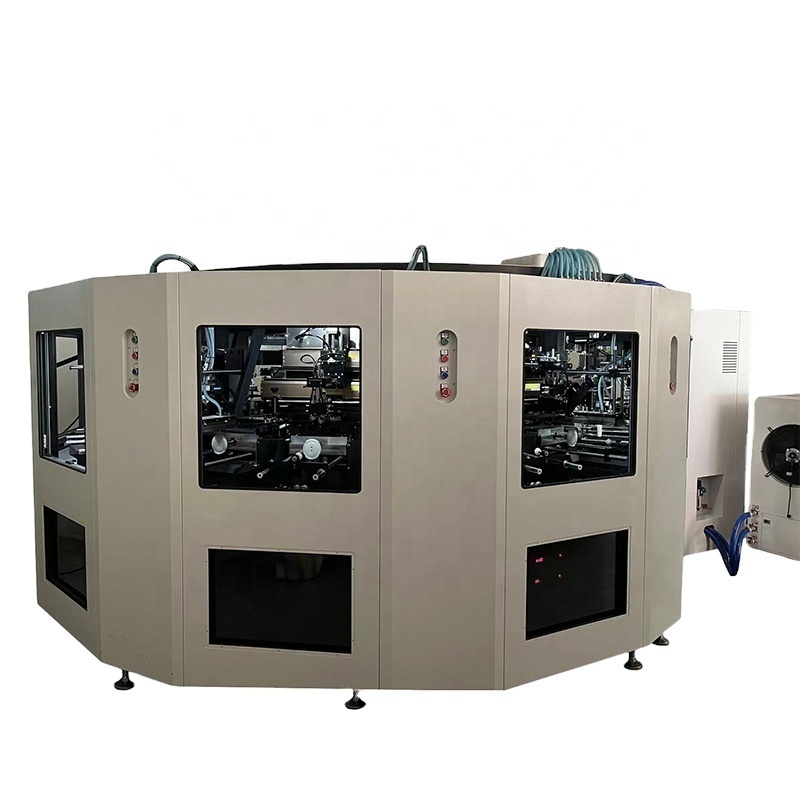

6-Color CNC Full Automatic Servo System Glass Bottle Screen Printing Machine
1.This model is a (6-color) automatic servo screen printing machine, which is suitable for cylindrical, square and special-shaped products. The printing ink can be selected from high temperature ordinary ink, UV ink and LED ink.
2.Using high-precision servo turntable, full servo control system, printing bottles of different shapes without gears. Optional visual positioning system and mechanical positioning structure, fast printing speed, stable and reliable quality, convenient and quick debugging.
This full auto screen printing machine can print 1-20 colors. We can customize the machine According to your need.
Machine details showing
Machine Details
Specification
|
item
|
value
|
|
Plate Type
|
Screen Printer
|
|
Applicable Industries
|
Restaurant, Printing Shops, Other, Advertising Company
|
|
Condition
|
New
|
|
Place of Origin
|
Guangdong
|
|
Brand Name
|
LC
|
|
Usage
|
Paper Printer, Label Printer, Tube Printer, Bill Printer
|
|
Automatic Grade
|
Automatic
|
|
Color & Page
|
Multicolor
|
|
Voltage
|
380V
|
|
Dimensions(L*W*H)
|
L2950*W1160*H1865mm
|
|
Weight
|
2500KG
|
|
Certification
|
CE
|
|
Max. Print Area
|
diameter 100mm
|
|
Warranty
|
1 Year
|
|
|
Online support, Free spare parts, Field installation, commissioning and training, Video technical support
|
|
Key Selling Points
|
High Productivity
|
|
Machinery Test Report
|
Provided
|
|
Video outgoing-inspection
|
Provided
|
|
Warranty of core components
|
1 Year
|
|
Core Components
|
Bearing, Motor, Pump, Gear, PLC, Other
|
|
Model
|
LC-616CNC
|
|
Max printing area
|
diameter 100mm height 280mm
|
|
Control System
|
BECKHOFF
|
|
Main motor drive
|
servo motor
|
|
Control circuit voltage
|
24VDC
|
|
Max printing speed
|
2700pcs/h
|
|
Total power
|
45KW
|
|
Air pressure requirements
|
5~6BAR
|
|
Continuous mode
|
Yes
|
|
Oil return knife up and down stroke
|
Cylinder control 20mm, adjustable screw stroke 50mm
|
Printing Effect
Packing & Delivery
the machine will be packaged in wooden case to ensure safety.
