Quick Details
-
Voltage:
-
380V/50HZ
-
Dimension(L*W*H):
-
different models
-
Weight:
-
150 KG
-
Marketing Type:
-
New Product 2024
-
Product name:
-
Gold Centrifugal Concentrator
-
Keywords:
-
Gold Separation Machine
-
Application:
-
Gold Mining
-
Advantage:
-
High Efficiency Low Energy
-
After sale service:
-
Engineer Overseas Service
Quick Details
-
Production Capacity:
-
98%, 98%
-
Place of Origin:
-
Henan, China
-
Brand Name:
-
Ascend
-
Voltage:
-
380V/50HZ
-
Dimension(L*W*H):
-
different models
-
Weight:
-
150 KG
-
Marketing Type:
-
New Product 2024
-
Product name:
-
Gold Centrifugal Concentrator
-
Keywords:
-
Gold Separation Machine
-
Application:
-
Gold Mining
-
Advantage:
-
High Efficiency Low Energy
-
After sale service:
-
Engineer Overseas Service
Products Description

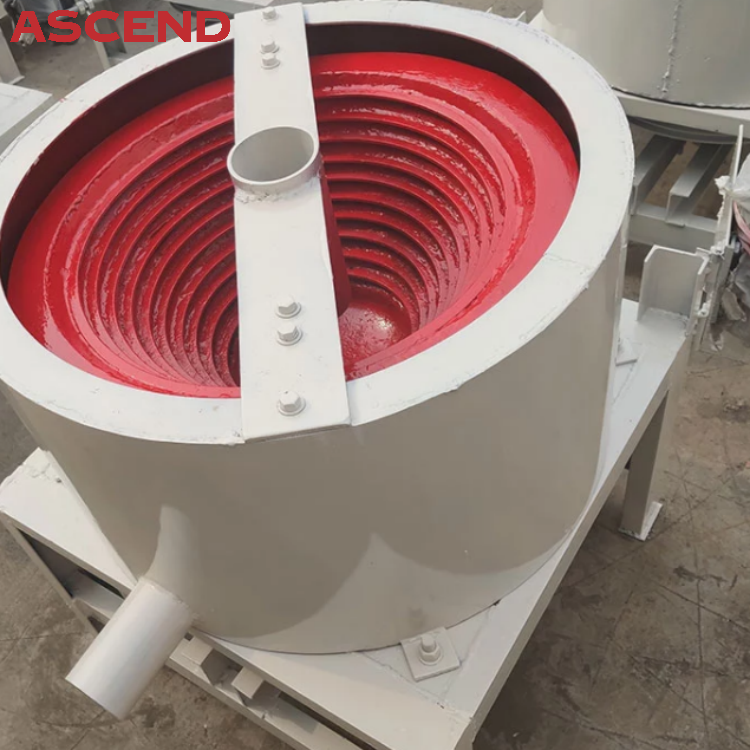

ASCEND Gold Centrifugal Concentrator High Recovery Gold
Ascend simplified gold centrifugal concentrator Gold Kacha is a type of simplified gold concentrator to collect the big particle free gold in placer gold or grinded vein gold. It is an ideal equipment to replace the expensive knelson gold concentrator. It has advantages of high efficiency and low energy,It can work perfectly with gold wet pan mill machine in gold mining.
Performance Advantages:
1)High efficiency, one ton per hour
2)High recovery ratio
3)Low energy and easy to operation
4)Low production cost and simple maintence
Detailed Pictures
Working Principle:
When the centrifuge starts working, the material is fed as a slurry of minerals and water into a rotating bowl that contains special fluidizing tanks or troughs for capturing heavy materials. Fluidization water/backwash water/backwash water is introduced through multiple fluidization holes on the inner cone to retain heavy minerals in the bed. Fluidization water/backwash water/backwash water plays an important role in the separation process.
Specifications
|
Name
|
Model
|
Power(kw)
|
Capacity(t/h)
|
Max.Feeding size(mm)
|
Water required(m³/h)
|
Max Slurry density
|
Concentrate weight per batch/KG
|
Run time per batch/Hour
|
|
Gold Kacha
|
LX80
|
1.1
|
1-1.2
|
2
|
2-3
|
30%
|
8-10
|
1
|
