Quick Details
-
Voltage:
-
220V /380V/ 50-60HZ
-
Dimension(L*W*H):
-
5832*2727*2367mm
-
Weight (KG):
-
3000 KG
-
Power (kW):
-
3.5
-
Name:
-
CNC 6 SIDES DRILLING MACHINE
-
Application:
-
Wood Drilling Furniture Making
-
Product name:
-
Panel Furniture Sides CNC Drilling Machine
-
Spindle:
-
3.5KW Air Cooling Spindle*2
-
Key words:
-
Automatic Wood Drilling Machine
-
Control system:
-
Blue Elephant Custom System
-
Driver system:
-
Absolute servo motor
-
Inverter:
-
Fuling inverter
-
Worktable:
-
Air floating worktable
-
Working voltage:
-
380V/60HZ/3PH
Quick Details
-
Motor Type:
-
Servo Motor
-
Place of Origin:
-
Shandong, China
-
Brand Name:
-
Blue Elephant
-
Voltage:
-
220V /380V/ 50-60HZ
-
Dimension(L*W*H):
-
5832*2727*2367mm
-
Weight (KG):
-
3000 KG
-
Power (kW):
-
3.5
-
Name:
-
CNC 6 SIDES DRILLING MACHINE
-
Application:
-
Wood Drilling Furniture Making
-
Product name:
-
Panel Furniture Sides CNC Drilling Machine
-
Spindle:
-
3.5KW Air Cooling Spindle*2
-
Key words:
-
Automatic Wood Drilling Machine
-
Control system:
-
Blue Elephant Custom System
-
Driver system:
-
Absolute servo motor
-
Inverter:
-
Fuling inverter
-
Worktable:
-
Air floating worktable
-
Working voltage:
-
380V/60HZ/3PH
Products Description

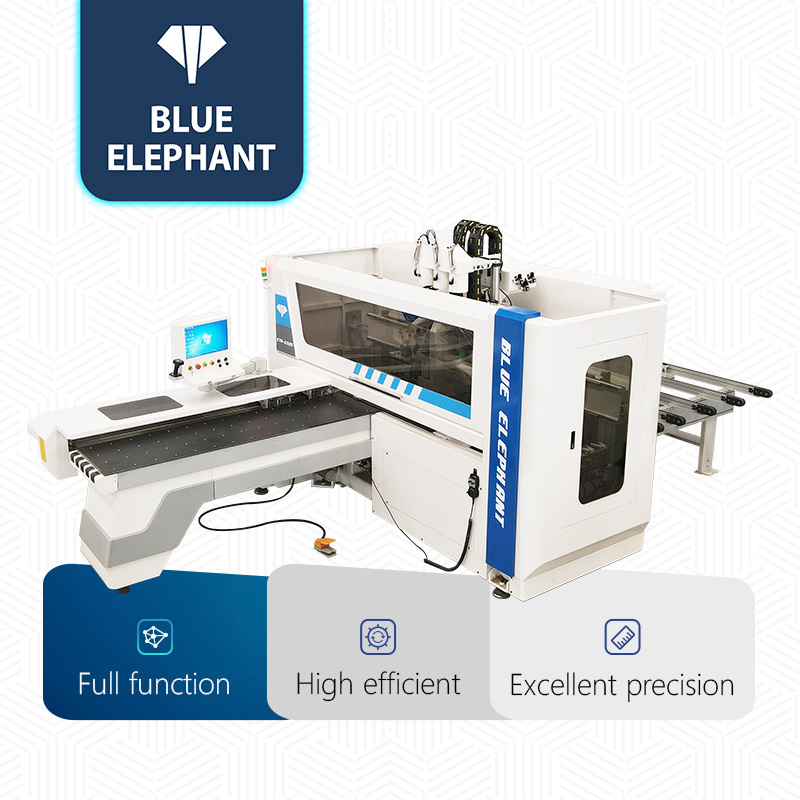

New 6 Sides CNC Boring Drilling Machine ATC CNC Automatic Tool Change Drilling Machine With Linear Tool Magazine
The latest ET6T automatic tool change six sided CNC drilling machine is equipped with a 6-tool ATC magazine, which can complete more invisible parts processing, grooving and drilling, greatly improving processing efficiency. In addition, the four direction drilling head can realize 4 sides processing of the plate. And the integrated machine bed is easy to install and operate.
Features
1. The automatic tool change six sided CNC drilling machine is upgraded with a linear ATC magazine with 6 different tools, which can realize the processing of Lamello, Muteyi, sidelight slots, pivot hinges, and 3-in-1 invisible piece.
2. With a 2.5KW Changchuan four direaction drilling head, the six sided ATC CNC drilling machine can achieve front, rear, left, and right drilling or grooving of the panels.
3. The 6-sided ATC CNC drilling machine uses the Blue Elephant customized control system, significantly increasing efficiency by 32%.
4. Equipped with an air floating worktable, the automatic tool change six sided CNC drilling machine greatly improves the plate conveying efficiency and avoids scratching.
Product Paramenters
|
Model
|
ET6T
|
|
Processing length
|
250-2800mm
|
|
Processing width
|
50-1200mm
|
|
Processing thickness
|
12-45mm
|
|
Spindle type
|
3.5KW HQD air cooling Spindle
5.5KW Changchuan ATC spindle
2.5KW Changchuan drilling spindle (optional)
|
|
Number of tools
|
12 top vertical drilling+8 horizontal drilling; 9 bottom vertical drilling
|
|
Control system
|
Blue Elephant Custom System
|
|
Driver system
|
Absolute servo motor
|
|
Inverter
|
Fuling inverter
|
|
Worktable
|
Air floating worktable
|
|
Working voltage
|
220V /380V/ 50-60HZ
|
