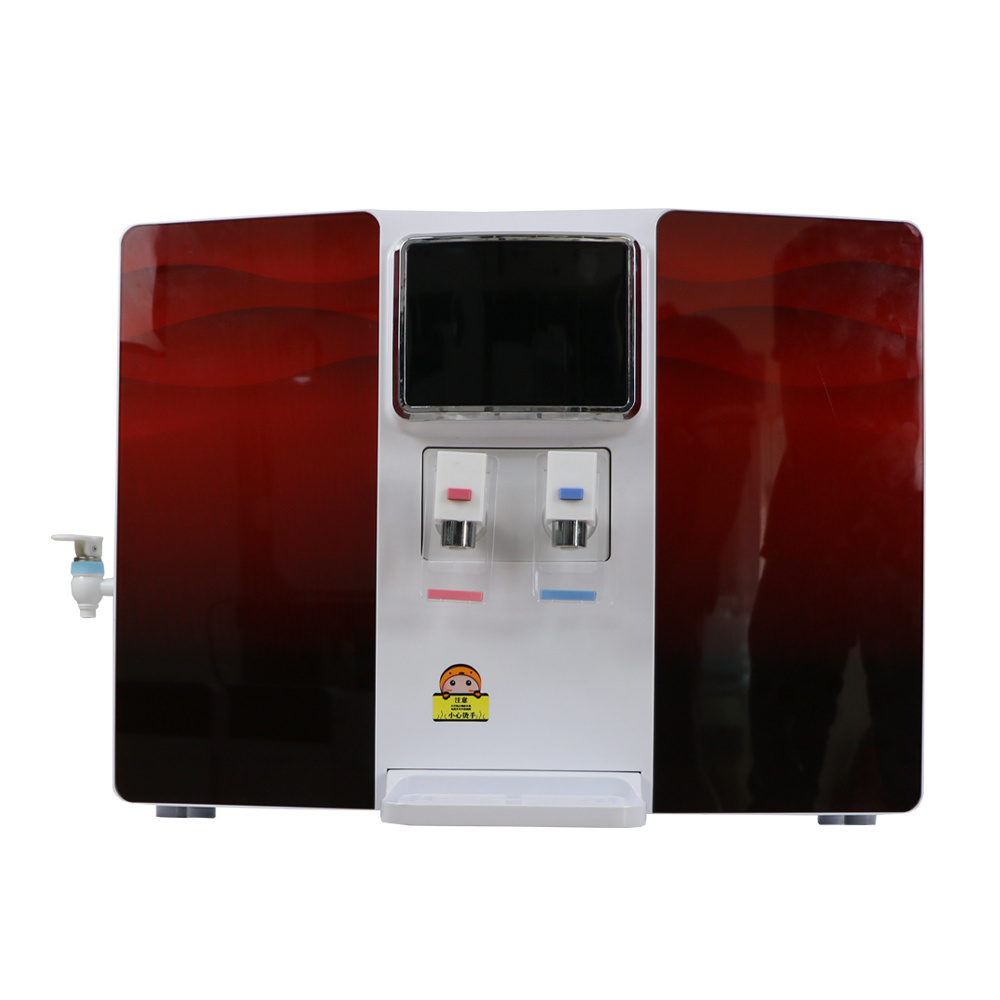

High Filtration Personal HOT & WARM ATM Alkaline Water Treatment Process Equipment Tank RO Carbonated Water Making Machine

OEM Policy

We can print your LOGO and custom packaging of our products, if you order exceeds 1000 units or above;the imprinting service and packaging will be free, otherwise it will be charge for printing and packaging at cost. The procedure is very simple;after choosing the product, you must provide us your LOGO/Packaging ARTWORK(digital format PSD,AI),and we will send you back a visual of the labeled product. If you accept the size and position, we will proceed to mass production.

Click Here For Inquiry >>>

Assembly Parts of High Filtration Personal HOT & WARM ATM Alkaline Water Treatment Process Equipment Tank RO Carbonated Water Making Machine:

1. 10’’ 5 micron PP
2. 10’’ GAC
3. 10’’ CTO
4. 50G Korea/Vontron brand RO membrane
5. 10’’ Coconut active charcoal T33
6. 3.2G pressure Tank
7. Deng yuan pump
8. fast connection fittings
9. 1/4’’ gooseneck faucet
10. 1/4’’ CCK pipe

Product Note of Ro Water Filter Equipment

1. The product should be promptly closed if there is leaking water;

2. In a timely manner, We recommend user to replace the filter according to replacement cycle;

3. When the water suddenly becomes considerably larger flow, Please do not drink the water;

4. Please do not customize repair or alter the product;

5. When moving the product, please do not pull the PE pipe to prevent leakage;

6. When the product is not used for a long time, turn off the water supply, power supply;

7. Do not use the rated voltage power that disproportionate;

8. After first time use it or a short time (within 1 month), when start to use itm, first two tanks of produced water should be drained; after long- term (over 1 month) stopped use it, when start to use again, should replacement activated carbon filter;

9. Use detergent to scrub it, please do not to use gasoline, alcohol and other solvents to scrub it.

Installation Note

1. Do not install under sunlight;

2. The product working temperature 5 to 45 degrees;

3. The product can not filter hot water, please do not connect to water heater.

4. Before use it, installation of the product should be fixed to prevent product turn down;

5. If the tap water pressue is higher than 0.4Mpa, please install the pressue limiting valve before the product;

6. Do not arbitrarily remove the parts on the product, to prevent leakage and damage to the machine;

7. PE pipe and fittings should installed in place;

8. Water tee, no seals should be wrapped with raw materials, there is a ring of raw materials can not be wrapped around the band;

9. After the installation is completed, you should turn on the water and gooseneck faucet, after 5 minutes, close gooseneck faucet , and check there leaks;

10. Pure water end and wastewater end can not be inversely connected.
