Quick Details
-
Cooling Mode:
-
Air Cooling
-
Place of Origin:
-
China
-
Brand Name:
-
PRATT
-
Weight (KG):
-
60 KG
-
Core Components:
-
laser source
Quick Details
-
Working Accuracy:
-
0.01mm
-
Graphic Format Supported:
-
AI, PLT, DXF, BMP, Dst, Dwg, LAS, DXP
-
Laser Type:
-
Fiber Laser
-
Cooling Mode:
-
Air Cooling
-
Place of Origin:
-
China
-
Brand Name:
-
PRATT
-
Weight (KG):
-
60 KG
-
Core Components:
-
laser source
Hot Selling
It can cut metal
plate and tube
, aluminum,stainless steel,iron and so on
Products Description

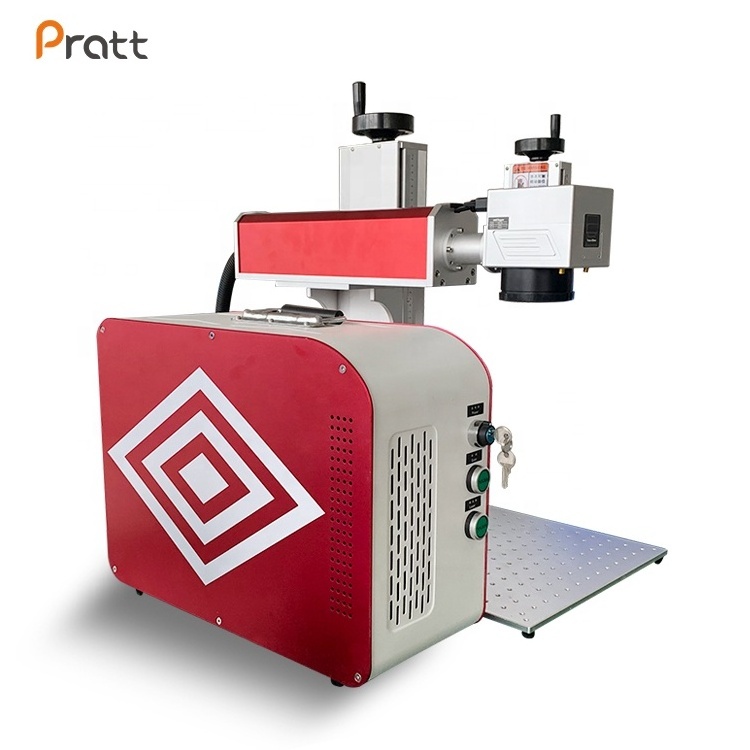

Raycus JPT MOPA 20W 30W 50W Fiber Laser Marking Machine For Metal&Nonmetal
1. The fiber laser generator is high integrated, has superior laser beam and uniform power density. Output laser power is stable.
This design highly increase the machine’s anti-reflection ability with optical isolator, be able to mark on most high reflective
materials such as aluminum, copper, gold and silver without the shadow and virtual open phenomenon.
2. Adopts advanced digital high speed scanning galvanometer, quick speed without deviation, small volume, good stability, and
performance reached the international advanced level.
3. Modular design, separate laser generator and lifter, more flexible, can mark on bigger area and complicated surface. Air-cooled
inside, small occupation, easy to install.
4. Adopt the embedded operating system, which the performance is leading domestic peers, good touch interface and powerful control
system, can meet the demand of most industry application process in market.
5. High efficiency for photoelectric conversion, simple operation, Compact in structure, support harsh working environment, no
consumables.
6. this type fiber laser marking machine is portable. Power box and laser source can be separated. Easy transport and can be
displayed separately according to user’s site space situation.
This design highly increase the machine’s anti-reflection ability with optical isolator, be able to mark on most high reflective
materials such as aluminum, copper, gold and silver without the shadow and virtual open phenomenon.
2. Adopts advanced digital high speed scanning galvanometer, quick speed without deviation, small volume, good stability, and
performance reached the international advanced level.
3. Modular design, separate laser generator and lifter, more flexible, can mark on bigger area and complicated surface. Air-cooled
inside, small occupation, easy to install.
4. Adopt the embedded operating system, which the performance is leading domestic peers, good touch interface and powerful control
system, can meet the demand of most industry application process in market.
5. High efficiency for photoelectric conversion, simple operation, Compact in structure, support harsh working environment, no
consumables.
6. this type fiber laser marking machine is portable. Power box and laser source can be separated. Easy transport and can be
displayed separately according to user’s site space situation.
Machine pictures
Product Parameter
|
Fiber laser engraving machine technical parameters
|
|
|
|
Laser Type
|
Fiber laser
|
|
|
Laser Power
|
20W 30W 50W 100W
|
|
|
Laser Wavelength
|
1064nm
|
|
|
Marking Area
|
110*110mm 150*150mm 200*200mm 300*300mm
|
|
|
Marking Depth
|
≤1.2mm
|
|
|
Marking Speed
|
≤12000mm/s
|
|
|
Repeated Precision
|
±0.003mm
|
|
|
Life-span of Fiber Laser Module
|
100000 hours
|
|
|
Cooling Mode
|
Air cooling
|
|
|
Beam Quality
|
M2<1.5
|
|
|
Operating Voltage
|
220V/50Hz
|
|
|
Working temperature
|
PLT,BMP,JPG,PNG,TIP,PCX,TGA,ICO,DXF
|
|
|
Consumption power
|
≤500W
|
|
|
Minimum Line Width
|
0.01mm
|
|
|
Option
|
Rotary table/2d 3d working table
|
|
Samples
Applicable Material:
Metal: Such as gold, silver, copper, iron, zinc, aluminum, stainless steel and so on. Hard Plastic: PE, PP, PVC, etc. also include general engineering plastics and special engineering plastics. It also can mark on some wood.
Applicable Industrial:
Electronic components, hardware tool products, electrical products, consumer goods, sensors, auto parts, 3C electronics, handicrafts, precision equipment, gift jewelry, equipment, high and low voltage electrical appliances, bathroom industry, battery industry, IT industry and other fields.
