Quick Details
-
Frame material:
-
Aluminum Alloy
-
Cover:
-
850g PVC
-
Side Wall:
-
650g PVC, ABS, glass
-
Color:
-
white, transparent,black,blue etc.
-
Connectors:
-
Strong Hot-dip Galvanized Steel
-
Ground situation:
-
grass land, mud land, concrete ground
-
Fixing Solution:
-
Ground Anchor,expandable bolt,weight plate,ect
-
Application:
-
wedding,party, event
-
Wind loading:
-
100km/h
-
Temperature resistance:
-
-30 celsius~+70 celsius
Quick Details
-
Brand Name:
-
LR TENT
-
Place of Origin:
-
Guangdong, China
-
Model Number:
-
BT20
-
Frame material:
-
Aluminum Alloy
-
Cover:
-
850g PVC
-
Side Wall:
-
650g PVC, ABS, glass
-
Color:
-
white, transparent,black,blue etc.
-
Connectors:
-
Strong Hot-dip Galvanized Steel
-
Ground situation:
-
grass land, mud land, concrete ground
-
Fixing Solution:
-
Ground Anchor,expandable bolt,weight plate,ect
-
Application:
-
wedding,party, event
-
Wind loading:
-
100km/h
-
Temperature resistance:
-
-30 celsius~+70 celsius
Langrun Tent Project Aquatic Products Expo Tent Aluminum Frame A Shape Big Outdoor Carpas Para Eventos Exhibition Tent For Sale
|
Item
|
Width
|
Eave height
|
Ridge height
|
Bay distance
|
Main profile
|
|||||
|
BT10
|
10m
|
4m（5m/6m）
|
5.5m（6.5m/7.5m）
|
5m
|
150*120*3mm
|
|||||
|
BT12
|
12m
|
4m（5m/6m）
|
5.8m（6.8m/7.8m）
|
5m
|
150*120*3mm
|
|||||
|
BT15
|
15m
|
4m（5m/6m）
|
6.2m（7.2m/8.2m）
|
5m
|
150*120*3mm
|
|||||
|
BT18
|
18m
|
4m（5m/6m）
|
6.7m（7.7m/8.7m）
|
5m
|
203*112*4mm
|
|||||
|
BT20
|
20m
|
4m（5m/6m）
|
7m（8m/9m）
|
5m
|
203*112*4mm
|
|||||
|
BT25
|
25m
|
4m（5m/6m）
|
7.8m（8.8m/9.8m）
|
5m
|
203*112*4mm
|
|||||
|
BT30
|
30m
|
4m（5m/6m）
|
9m（10m/11m）
|
5m
|
256*111*4.5mm
|
|||||
|
BT40
|
40m
|
4m（5m/6m）
|
10.6m（11.6m/12.6m）
|
5m
|
300*125*6mm
|
|||||
|
BT50
|
50m
|
4m（5m/6m）
|
12.2m（13.2m/14.2m）
|
5m
|
350*127*11mm
|
|||||
|
The length can be extended by 5m bay such as 15m, 20m, 30m, 40m... Customized size is available.
|
|
|
|
|
|
|||||
|
Main Profile
|
Material: Hard pressed extruded aluminium 6082-T6, 6061/T6
Features: Stainless |
|
|
|
|||
|
Cover
|
Material: Double PVC-coated polyester textile, 650g-850g/m²
Features: Waterproof, flame retardant to DIN4102 B1, M2, CFM, UV resistant |
|
|
|
|||
|
Eave Connection
|
Hot-dip Galvanized twin steel plate
|
|
|
|
|||
|
Wind Loading
|
100km/hour
|
|
|
|
|||
Tension Bar
Screw Rod
Explosion screw

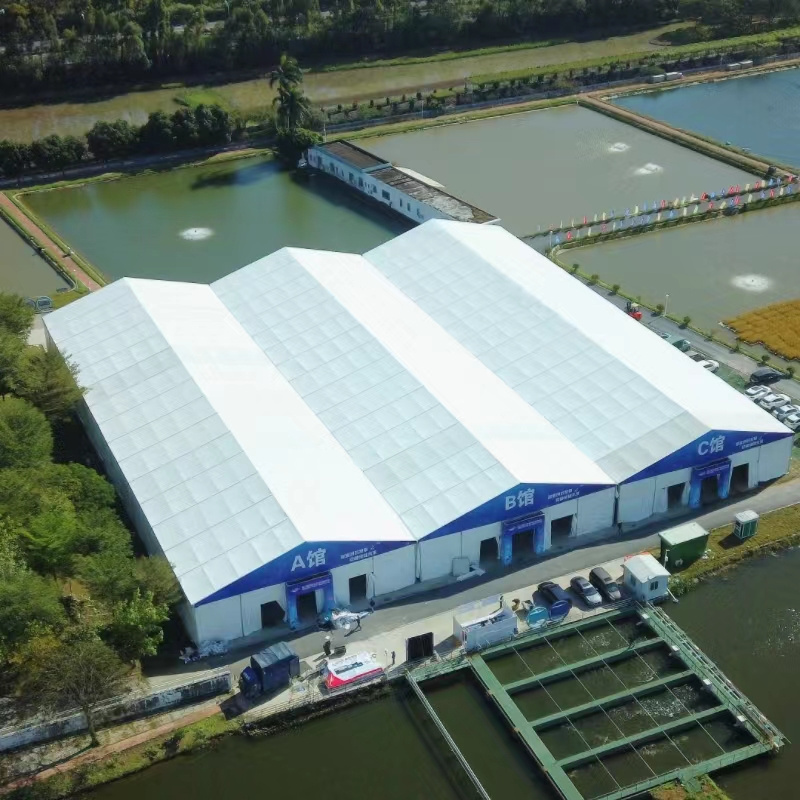

Exhibition Tent
Transparent Wedding Party Tent
Sports Tent
Warehouse Tent
Auto Show Tent
Wedding Tent
ABS Wall Glass Wall Glass Door
Transparent PVC Window
Lining and Floor Air Conditioner Tables and Chairs Light
Fixed with steel drill rod for grass land and mud land.
Fixed with explosion screws for concrete ground
Fixed base plate on the embedding ground.
Place the cement block on weight plate for unbreakable ground
