Quick Details
-
Nature:
-
IPTV Streaming Encoder H.265 H.264 HD MI IP Encoder
-
Video Inputs:
-
16*HD MI/16*HD MI+CVBS/16*SDI
-
IP Protocol ouput:
-
HLS/RTMP/RTSP/HTTP/UDP
-
Video Encoding:
-
H.265/ H.264(MPEG4/AVC)
-
Audio Encoding:
-
AAC, MP3
-
Resolution:
-
Up to 1080P Full HD
-
Application:
-
IPTV Headend Systems
-
Item:
-
hd mi iptv encoder
-
Bitrate:
-
low bitrate
-
Output:
-
dual streams
Quick Details
-
Place of Origin:
-
Zhejiang, China
-
Brand Name:
-
DIGICAST
-
Model Number:
-
DMB-8916N(HD MI)
-
Nature:
-
IPTV Streaming Encoder H.265 H.264 HD MI IP Encoder
-
Video Inputs:
-
16*HD MI/16*HD MI+CVBS/16*SDI
-
IP Protocol ouput:
-
HLS/RTMP/RTSP/HTTP/UDP
-
Video Encoding:
-
H.265/ H.264(MPEG4/AVC)
-
Audio Encoding:
-
AAC, MP3
-
Resolution:
-
Up to 1080P Full HD
-
Application:
-
IPTV Headend Systems
-
Item:
-
hd mi iptv encoder
-
Bitrate:
-
low bitrate
-
Output:
-
dual streams
OVERVIEW

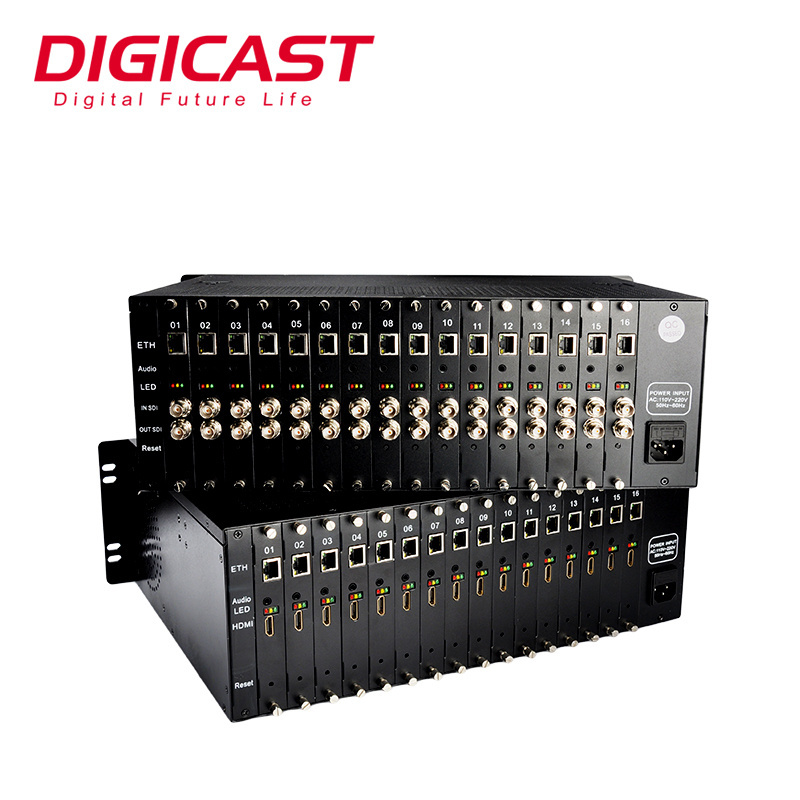

DMB-8816N/8916N Multi-Channel ProVideo Streaming Encoder with 2U` Series features high performance, low latency and ultra-low bit rate for IPTV/OTT systems, realize Video & Audio real-time transmission via internet, and adopts state-of-the-art compression technology of H.264/MPEG-4 AVC and H.265/HEVC(Option), which realizes its resolution to be up to full HD 1080P high quality image. Moreover, with powerful video pre-compression and efficient adaptive video compression algorithm, it is able to provide clear-delicate, high quality video even at lower bit rate compare with traditional broadcast Encoder. Also it is highly compatible with IPTV server like Wowza server, FMS server etc. Moreover, providing username, password matching function which required from destination server, in order to avoid the streaming which do not authorized.
It can be applied to education, health care, IPTV & OTT,conference, remote education, news interview, court, public security, banking, transportation and other industry applications.
FEATURES
◇Abundant inputs for option:SDI,HDMI,CVBS
◆Support up to 4 TS over IP stream out per module
◇Support up to H.265 Main Profile/ High Profile/ Baseline Profile and
MP3 & AAC audio compression
◆Bitrate mode: CBR / VBR
◇Capable of image parameter settings
◆Switchable of audio output mode: Left, right and Stereo
◇Configurable of Multi-rate, Multi-resolution, Multi-protocol
◆Providing RTSP / HTTP / UDP,RTMP and HLS(m3u8) protocol
◇Support HDCP protocol
◆Any iOS browsers(iphone, ipad, MacBook etc) are able to have
streams from IPTV Streaming Encoder in Anytime, Anywhere by HLS
◇Any terminal devices/decoders are able to have streams from IPTV
Streaming Encoder directly by RTMP protocol with software players(
such as VLC)
◆Support ONVIF Network Video Protocol
◇Providing user name, password matching function which required
from destination server
◆Support multiple equipments display at the same time on a computer
◇System supports WINDOWS XP / VISTA / SERVER2003 /
SERVER2008 / WIN7 32 and WIN7 64, LINUX
◆Web-based management
◇Full-duplex mode 1000M
◆Insertable of logo and Scroll Caption; Adjustable of audio gain
|
SPECIFICATIONS
|
|
|
|
VIDEO SPECIFICATIONS
|
Video compression: H.264/H.265 High Profile Level 4.0
Video inputs:HDMI,CVBS,SDI Analog video input mode: PAL, NTSC Resolution: Main stream: 1920x1080,1680x1056,1280x720,1024x576,850x480,720x576,720x540,720x480,720x404,704x576, 640x480,640x360,auto. Sub-stream: 1280x720,800X450,720x576,720x540,720x480,720x404,704x576,640x480,640x300,352X288,320X 240,320X180 auto. Bitrate: 16kbps~12Mbps,CBR / VBR Video pre-processing: Noise reduction,Sharpen,Filtering |
|
|
AUDIO SPECIFICATIONS
|
Audio compression: AAC, MP3
Sampling rate: Adaptive, selectable of re-sample. Sampling accuracy: 24-bit Bitrate: 48Kbps,64Kbps,96Kbps,128Kbp, 160Kbps,192Kbps,256Kbps Re-sample:32KHz,44.1KHz |
|
|
OUTPUTS
|
IP output
Transport protocol: TS over IP output,RTSP/ HTTP / UDP,RTMP and HLS(m3u8) protocol For HDMI / CVBS / SDI to IIP output, 4*TS over IP stream out (HTTP/RTSP/UDP or RTMP and HLS protocol) 2Channels with higher resolution(up to 1080P) for large screen application, 2channels with lower resolution(up to 720P) for small screen application. Connector: RJ45, 1000M / 100M |
|
|
GENERAL OPTIONS
|
SYSTEM
Configuration Interface: Web-based management. Upgraded: via network Connector: RJ45, 1000M / 100M Ethernet interface. PHYSICAL AND POWER Voltage: AC220V±10% 50/60 Hz Consumption: 80 W Operating temperature: -20-80°C Dimensions: 485mm(W)*330mm(D)*98mm(H) Weight: 8Kg/pc(including accessories) |
|
(DMB-8816) 1080P HD ONVIF HDCP 2 U Chassis 16CH H.265 HEVC H.264 Full HD Encoder IPTV for Online Media Streaming Server
Mostly, it depends on the Server you use. If your terminal decoding could support H.265 decoding, we recoomend you the one by H.265. Because compared to the H.264, H.265 encoder format able to transfer more programs in limited bandwidth.
2.Can this support HLS protocol?
Yes, it’s compatible with HLS(M3U8), HTTP/UDP/RTSP, RTMP, ONVIF, RTMP protocols.
3.Which input do you have?
It depends on the products. For this economic series, we have HD interface, SDI input only.
4. Can this stream to the Facebook, YouTube and so on. Is that compatible with the OBS Streaming Software?
Yes. our encoder could stream to the Facebook, YouTube, Twitch etc. And the OBS software uses RTMP protocol, so this encoder could compatible with the OBS.
5. How and where can I set up the device? Is by software?
You could set up the encoder by Web-management. It's very easy for operation. You can add a logo and subtitle. We also will send a User Manual with encoder. And our technical will to be of help.
6. How is the delay?
The delay of this device is about 200 ms. If you find the delay is more than that, could be caused by the internet or decoder.
7.I am a Cameraman, Which device is better for me?
If you need move the camera often, and will use it in the outdoor, we recommend you the one with WIFI, Battery and 4G/3G function.It’s super suitable for the Mobile Live Streaming Event, is that DMB-8900N Ultra. Please note, the WIFI and Battery function is banded, can’t be separated.
8.I never use this device before/I don’t know if the device suit our local market, Can I get a sample for test firstly.
Yes, even if we are doing wholesale business, We could fully understand the further cooperation is based on time and the goods’ quality. So one set of sample is totally welcomed.
9.How long will I receive my product?
All our products are in stock. It will take about 3-7 work days after we get the payment. Because before shipping, we need to all test the device.
|
