Quick Details
-
Work width:
-
500-700mm
-
Min ground clearance:
-
70mm
-
Working speed:
-
2km/h
-
Productivity:
-
0.1-0.2h m2/h
-
Supporting power:
-
8.82kw
-
Knife shaft rotation:
-
2200r/min
-
Remaining height:
-
20-80mm
-
Harvest lines:
-
1
-
Dimensions:
-
920*670*620mm
-
Application:
-
maize
Quick Details
-
Place of Origin:
-
Hubei, China
-
After-sales Service Provided:
-
Field installation, commissioning and training, Field maintenance and repair service, Video technical support, Online support
-
Product name:
-
Mini Corn Harvester
-
Work width:
-
500-700mm
-
Min ground clearance:
-
70mm
-
Working speed:
-
2km/h
-
Productivity:
-
0.1-0.2h m2/h
-
Supporting power:
-
8.82kw
-
Knife shaft rotation:
-
2200r/min
-
Remaining height:
-
20-80mm
-
Harvest lines:
-
1
-
Dimensions:
-
920*670*620mm
-
Application:
-
maize

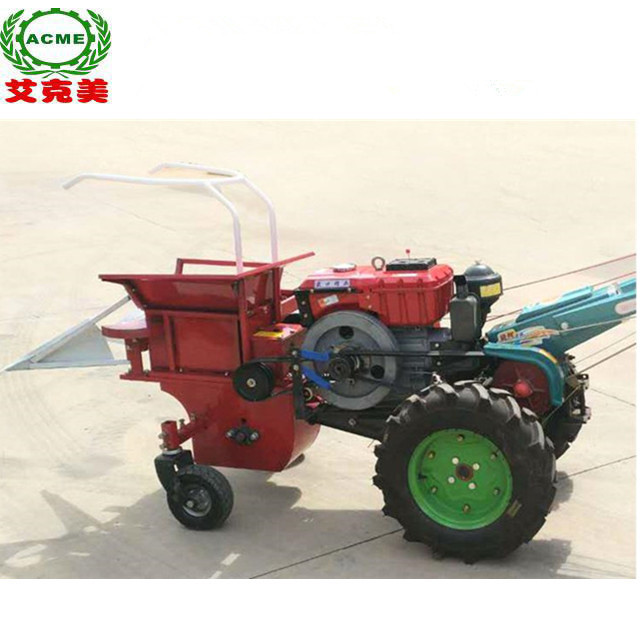

mini corn maize harvester 12HP walking tractor corn collecting machine
| Specifications for single row corn harvester | ||
| Product name | corn harvester | |
| Model | 4YD-1 | |
| Structure(Self-propelled) | picking, non-peeling, smashing | |
| Engine | model | ZH192 |
| Calibration power | ≥7.35kw | |
| Calibration rotation | 2300r/min | |
| Working rows | 1 row | |
| Work width | 500-700mm | |
| Min ground clearance | 70mm | |
| Working speed | 2km/h | |
| Productivity | 0.1-0.2h m2/h | |
| Fuel consumption | 6.5kg/h m2 | |
| Dimensions | 920*670*620mm | |
| Total Weight | 90kg | |
| Supporting power | 8.82kw | |
| Knife shaft rotation | 2200r/min | |
| Trial sentence | 500-700mm | |
| Remaining height | 20-80mm | |
| Harvest lines | 1 | |
| Number of workers | 1 | |
| Number of blades | 24 pcs | |
| Chopped length | 20-80mm | |
| Picking structure | Recumbent | |
| Picking size | L420mm H400mm | |
| Track distance | Guide wheel | 580-680mm |
| Drive wheel | 680-740mm | |
| Tire specifications | Guide wheel | 4.10/3.5-4mm |
| Drive wheel | 6.00-12mm | |
Features
1: small size, adaptability, widely used in hills and mountains and other large corn harvesters can not pass the sporadic block
2: full-featured, picking crushed straw crushed into the field, etc., and almost the same function
and large corn harvester.
3: matching power, machine delivery.
4: easy to install and disassemble, really a car more use.
5: flexible operation, cutting crop height can be adjusted, turning radius is small
