Quick Details
-
Product name:
-
suntree SUP2H-PV
-
Warranty:
-
18 Months
-
Application:
-
solar system
-
Certificate:
-
CE TUV
-
Color:
-
Orange
-
brand:
-
SUNTREE
-
Model:
-
2P 3P
-
Package:
-
carton
-
Function:
-
Lightning Protection Counter
-
Payment:
-
TT. Bank west union, paypal, Visa
Quick Details
-
Place of Origin:
-
Zhejiang, China
-
Brand Name:
-
Suntree
-
Model Number:
-
SUP2H
-
Product name:
-
suntree SUP2H-PV
-
Warranty:
-
18 Months
-
Application:
-
solar system
-
Certificate:
-
CE TUV
-
Color:
-
Orange
-
brand:
-
SUNTREE
-
Model:
-
2P 3P
-
Package:
-
carton
-
Function:
-
Lightning Protection Counter
-
Payment:
-
TT. Bank west union, paypal, Visa
Why Choose Us
Product Details
|

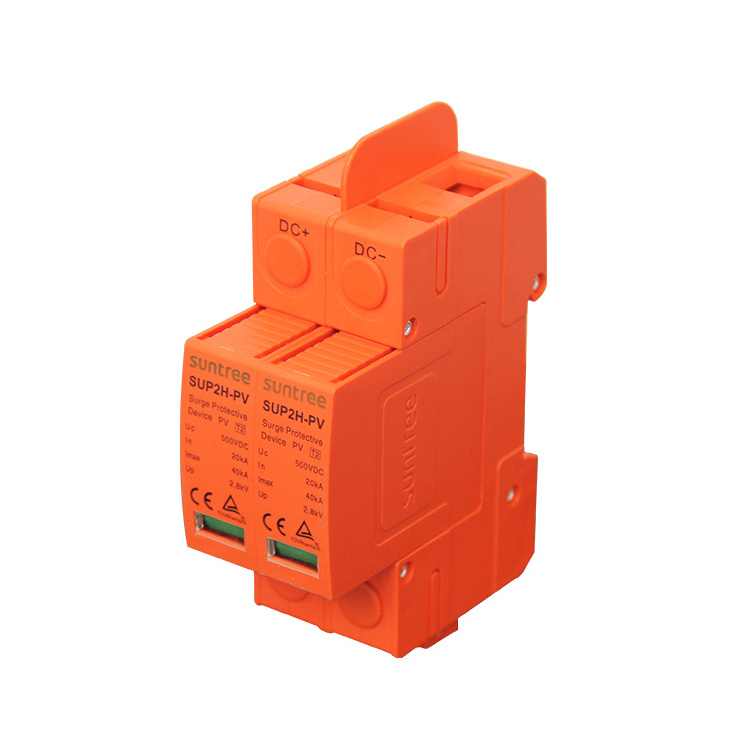

SUP2H-PV Series Surge Protector
|
|
SUP2H1-PV
|
SUP2H1-PV
|
SUP2-PV
|
|||
|
UCPV (V DC)
|
|
1000V
|
1200V
|
1500V
|
|||
|
Max System Discharge Current (8/20 μs) [Imax]
|
|
40kA
|
40kA
|
40kA
|
|||
|
Voltage Protection Level [UP]
|
|
≤4.0kV
|
≤4.5kV
|
≤4.5kV
|
|||
|
Voltage Protection Level at 5kA [UP]
|
|
≤3.6kV
|
≤4.0kV
|
≤5.0kV
|
|||
|
Integrated Fuse Breaking Capacity/Interrupting Rating
|
|
40kA/1000Vdc
|
40kA/1200Vdc
|
40kA/1500Vdc
|
|||
|
Technology
|
|
Short-Circuit Interruption (SCI) Overcurrent Protection
|
|
|
|||
|
Operating Temperature Range [TU]
|
|
-40°C to +80°C
|
|
|
|||
|
Nominal Discharge Current (8/20 μs) [(DC+/DC-) --> PE] [n]
|
|
20kA
|
|
|
|||
|
Response Time [tA]
|
|
<25ns
|
|
|
|||
|
Operating State/Fault Indication
|
|
Green (good)/Red (replace)
|
|
|
|||
|
Conductor Ratings and Cross-Sectional Area
|
Min
|
60/75°C 1.5mm2/14AWG Solid/Flexible
|
|
|
|||
|
|
Max
|
60/75°C 35mm/2AWG Stranded/25mm2/4AWG Flexible
|
|
|
|||
|
Mounting
|
|
35mm DIN Rail per EN 60715
|
|
|
|||
|
Enclosure Material
|
|
UL 94V0 Thermoplastic
|
|
|
|||
|
Degree of Protection
|
|
IP20
|
|
|
|||
|
Capacity
|
|
3 Modules, DIN 43880
|
|
|
|||
|
Standards Information
|
|
IEC 61643-31 Type 2, IEC 61643-1 Class II
|
|
|
|||
|
Product Warranty
|
|
Five Years**
|
|
|
|||
