Quick Details
-
Voltage:
-
380V/Customized
-
Power:
-
2.2KW
-
Dimension(L*W*H):
-
3*1*0.8m
-
Weight:
-
1500 kg
-
Product name:
-
Paper Cup Making Machine Automatic
-
Keyword:
-
paper cup machine
-
Usage:
-
Making Paper Plate Dish Tray
-
Finished Products:
-
Paper Cup Paper Bowl
-
Packaging Material:
-
film
-
Advantage:
-
Easy Operation
-
Capacity:
-
100-120/min
-
After Warranty Service:
-
1 Year Warrnty
-
Color:
-
White Black
Quick Details
-
Production Capacity:
-
120 pcs/min
-
Place of Origin:
-
Shandong, China
-
Brand Name:
-
rino
-
Voltage:
-
380V/Customized
-
Power:
-
2.2KW
-
Dimension(L*W*H):
-
3*1*0.8m
-
Weight:
-
1500 kg
-
Product name:
-
Paper Cup Making Machine Automatic
-
Keyword:
-
paper cup machine
-
Usage:
-
Making Paper Plate Dish Tray
-
Finished Products:
-
Paper Cup Paper Bowl
-
Packaging Material:
-
film
-
Advantage:
-
Easy Operation
-
Capacity:
-
100-120/min
-
After Warranty Service:
-
1 Year Warrnty
-
Color:
-
White Black
Product Description

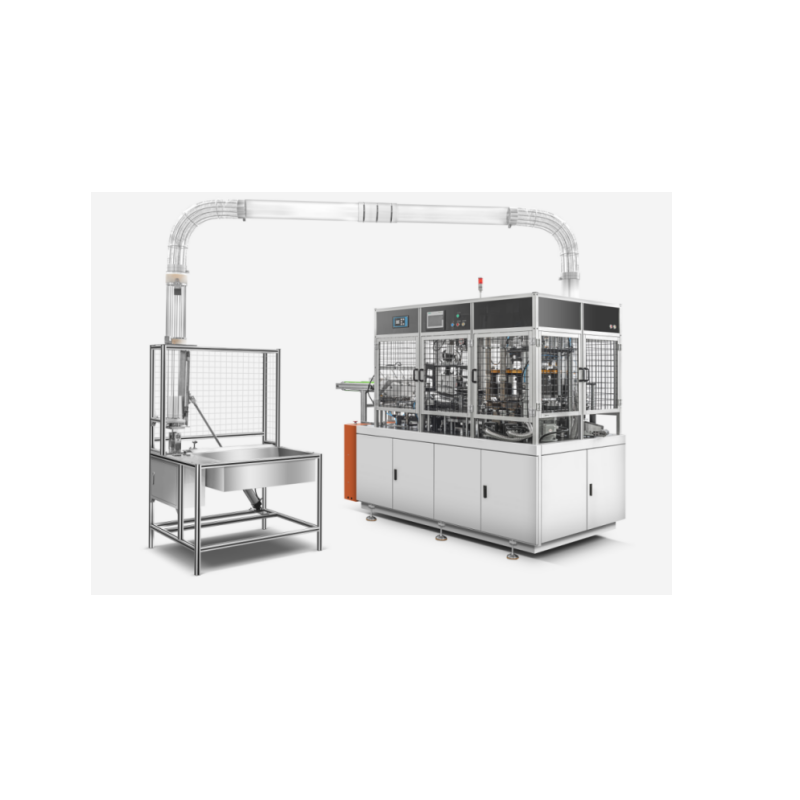

Our newly designed KBM paper cup /bowl forming machine is a fully automatic paper cup forming machine, which can produce different sizes of paper cups with a series of continuous process, including automatic paper feeding, paper anti-withdrawal device (to ensure accurate positioning), ultrasonic welding, transferring paper fan by robot hand, silicone oil lubricating, bottom punching, bottom folding, bottom pre-heating, bottom knurling, cup discharging. The machine, researched and developed by our company, is improved steadily after comprehensive technical improvements.
Specifications
|
Item Name: |
Paper Cup Machine |
Paper Bowl Machine |
|
Model: |
K CM |
KBM |
|
Size Range: |
4-32 oz (Top: 60-120mm, Height: 50-115mm) |
20-35 oz (Top: 95-143mm, Height: 50-115mm) |
|
Production Capacity: |
120-140 pcs/min |
100-120pcs/min |
|
Sealing Method: |
Ultrasonic Sealing |
|
|
Paper Thickness: |
170~350g PE Coated Paper |
|
|
Power Requirement: |
380V ,3-phase, 50Hz *Please inform us in advance if need customize |
|
|
Total Power: |
15KW |
15KW |
|
Machine Weight: |
2900KG |
2900KG |
|
Packing Dimension: |
2650 x 1300 x 2100 mm |
2700 x 1350 x 2300 mm |
|
Working Pressure: |
0.5-0.8MPa, 0.35m3/min * Please use it with an air compressor (purchased by customer) |
|
Company show
FAQ
1.Q:What is the machine warranty?
A:one year.
2.Q:Does your machine with CE certificate?
A:Yes, issued by Italian organization
3.Q:What is the production time while placing order?
A:About 40 days
4.Q:What is the delivery time?
A:45-60days after get the payment.
5.Q:Can your company handle shipping for customers?
A:Yes, just give us destination sea port or container yard
