Quick Details
-
Input:
-
SDI(audio bulid-in)+Stereo Audio(3.5mm jack)
-
Output:
-
1000M Ethernet Port(RJ45) or SDI Loop Out
-
Streaming Protocol:
-
SRT, HTTP, RTSP, RTMP, RTMPS, UDP, RTP, ON VIF, HLS(M3U8), Multicast
-
Video encoding:
-
MPEG-4 /H.264 AVC
-
Audio encoding:
-
AAC, MP3, MP2, G.711
-
Video Stream:
-
2 Video Streams Output Simultaneously
-
Code Rate Control:
-
16kbit /s to 12mbit /s Adjustable
-
Support Resolution:
-
Max 1920x1080P /60fps Input and Output
-
Firmware Update:
-
Firmware is Upgradeable
-
Warranty:
-
5-year Warranty and Free Lifetime Technical Support
Quick Details
-
Place of Origin:
-
Guangdong, China
-
Brand Name:
-
URay
-
Model Number:
-
USE264-1L
-
Input:
-
SDI(audio bulid-in)+Stereo Audio(3.5mm jack)
-
Output:
-
1000M Ethernet Port(RJ45) or SDI Loop Out
-
Streaming Protocol:
-
SRT, HTTP, RTSP, RTMP, RTMPS, UDP, RTP, ON VIF, HLS(M3U8), Multicast
-
Video encoding:
-
MPEG-4 /H.264 AVC
-
Audio encoding:
-
AAC, MP3, MP2, G.711
-
Video Stream:
-
2 Video Streams Output Simultaneously
-
Code Rate Control:
-
16kbit /s to 12mbit /s Adjustable
-
Support Resolution:
-
Max 1920x1080P /60fps Input and Output
-
Firmware Update:
-
Firmware is Upgradeable
-
Warranty:
-
5-year Warranty and Free Lifetime Technical Support
• You may like WIFI model(Click here to see product details)
Overview

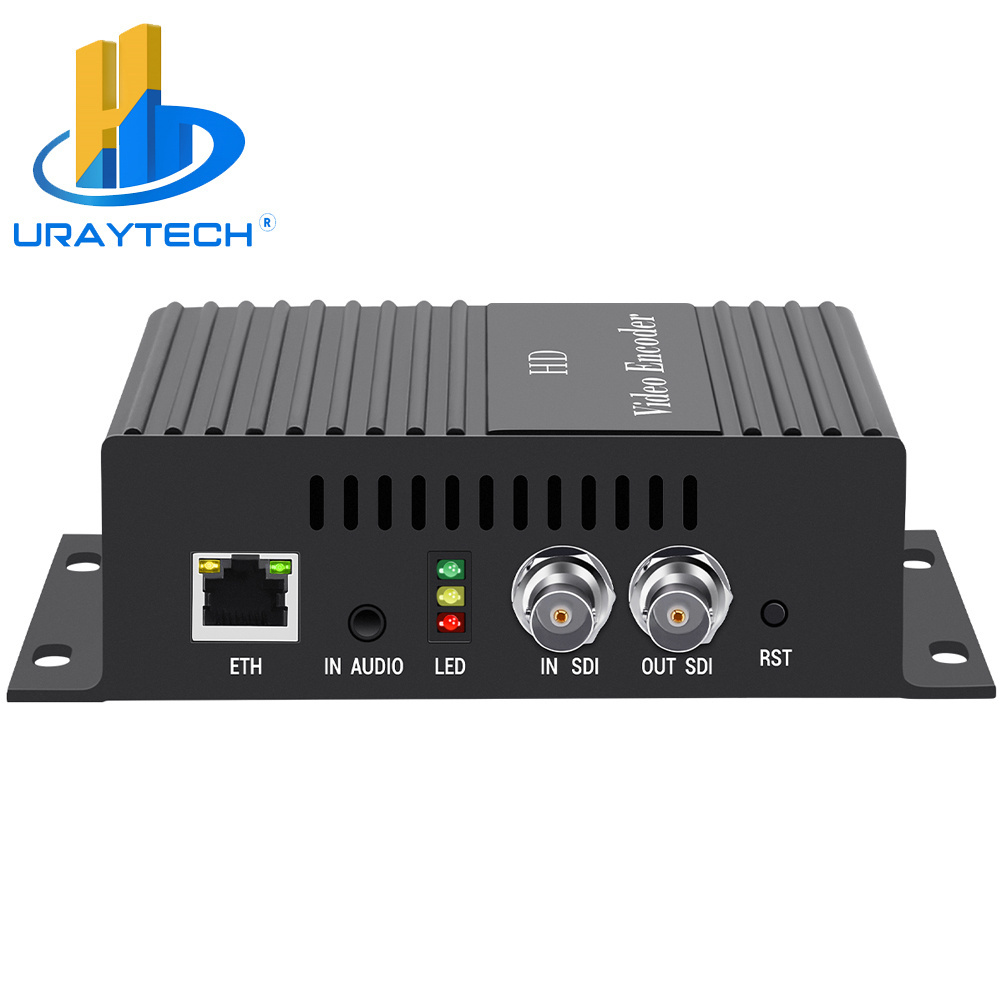

URaytech video encoder(Model No. USE264-1L) is a HD audio and video encoding device with powerful functionality. It supports SDI(audio build-in) and external stereo audio(3.5mm jack) input, H.264 video encoding and AAC /MP3 /MP2 /G.711 audio encoding, 2 video streams output simultaneously. It supports SRT, HTTP, RTSP, UDP, RTP, Multicast, Unitcast, RTMP, ONVIF, HLS(M3U8), FLV, RTMPS etc streaming protocol. Its high integration and cost-effective design make this device widely used in variety of field such as CATV digital head-end, hotel IPTV system, live streaming broadcast, streaming media server etc. Also the encoder works with online live broadcast platforms, such as YouTube Live, Ustream, Twitch, Facebook Live etc.
If you input external audio, you can choose SDI embedded audio or external audio as output audio.
We produce multi-channel video encoder decoder which is packed by 1U rack or 3U rack. For 3U rack, support up to 16 encoder cards to be installed.
All URayTech video encoders and video decoders include a five-year manufacturer warranty and free lifetime technical support. Also we provide SDK and API and CGI control protocol for secondary development. Meanwhile, we can provide many free service such as logo printing, language customization, firmware development etc.
Typical Connection
1). For Live Broadcast Online Connection
2). For Multi-purpose Connection
3). For IPTV Project Connection
The Feature
• Embedded HiLinux system, stable and effective
• Support wide area network remote management(via port forwarding)
• Support MPEG-4 /H.264 AVC video encoding
• Support AAC, MP3, MP2, G.711 audio encoding for selection
• The bitrate of output video stream is adjustable from 16kbit/s to 12mbit/s(CBR or VBR bitrate controlling mode)
• Support HTTP, SRT, UDP, RTP, RTSP, RTMP, RTMPS, HLS(M3U8), FLV, ONVIF, Unitcast, Multicast etc streaming protocol
• Support insert image, logo, text on the output video stream
• Support output displayed video resolution and frame rate setting(max 1920x1080P@60fps)
• Support different protocol transmission for the 2 output video streams
• Support choose SDI embedded audio or external audio as output audio
• Support 1 channel SDI local loop out
• Support upgrade device by upgrading new firmware
• Provide SDK and API and CGI for secondary development
• Network interface full-duplex mode with 1000M speed
• English webpage operating interface, language is customizable
• A click to restore the default configuration
• Stable and effective, support 7 x 24h working time
• Support multichannel 1U rack or 3U rack structure, up to 16 encoder cards can be installed in 3U rack
• Provide many kinds of customization(logo print, language customization, firmware or function customization etc)
• Multi platforms live streaming
This SDI encoder is easy to be operated. Turn your SDI-equipped camera /device into a video source, and live broadcast on any streaming platform. It is compatible with most of live broadcast platforms, such as Ustream, Livestream, Facebook Live, and YouTube Live or even build your own using streaming media server, such as Wowza or Xtream codes. It supports multi-stream output, 2 video streams output simultaneously. You can push multi video stream to multi-platform at the same time.
• Multi type video stream URL play
Not only pushing video streams to online platforms, you can also use video software or APP such as VLC or Vmix etc to play video stream URL. With these video stream URL, you can play video at anywhere, at any time. Meanwhile, you can add logo or text or time to displayed video.
The Specification
| Model No. | USE264-1L |
| Video | |
| Input | SD /HD /3G SDI |
| Input Resolution | Max 1080P or 1080i resolution, Max 60fps frame rate |
| Encoding Type | MPEG-4 /H.264 AVC |
| Encoding Levels | H.264 high /main /baseline profile |
| Video Bitrate | Adjustable from 16kbit /s to 12mbit /s |
| Bitrate Control | CBR or VBR selection |
| Output Resolution | It is adjustable, max 1920x1080P /60fps |
| Video Pre-processing | De-interlacing, noise reducing and sharpening |
| Audio | |
| Input | SDI embedded audio or external audio(3.5mm jack) |
| Audio Encoding | AAC, MP3, MP2, G.711 |
| Sampling Rate | 44.1KHz, 48KHz |
| Bitrate Control | Adjustable from 48000~320000 |
| Sampling Accuracy | 24bit |
| ONVIF | G.711 |
| Network | |
| Interface | Ethernet port(1000 BASE-T) |
| Streaming Protocol | HTTP, SRT, UDP, RTSP, RTMP, HLS(M3U8), Multicast, ONVIF, RTP, Unitcast, RTMPS etc |
| Control Panel | Webpage control panel(language customizable) |
| Firmware Upgrade | Firmware is upgradeable |
| General | |
|
Dimension (W x L x H) |
150 x 120 x 40 /mm |
| Net Weight | 0.3kg |
| Temperature | 0 to 45(For working), -20 to 80(For storing) |
| Input Voltage | DC 12V /2A |
| Power Consumption | 5w |
Control Panel
1. Status Display
2. Preview
3. Network Setting
4. Video Stream Setting
5. Audio Setting
6. OSD Setting
7. Color Setting
8.Image Setting
9. Smart Encoder Setting
10. ONVIF Setting
11.Firmware Upgrade
