Quick Details
-
Place of Origin:
-
Zhejiang, China
-
Brand Name:
-
CDOE
-
Model Number:
-
HBDGQ30F-22D/J/S
-
Mounting hole size:
-
30mm
-
Head shape:
-
Dome
-
Operation type:
-
Momentary
-
Material:
-
stainless steel
-
Contact configuration:
-
2NO2NC
-
Terminal type:
-
Pin terminal
-
Rating value:
-
5A/250V AC
-
Protection class:
-
IP65,IK08
-
Certificate:
-
TUV,CE,ROHS,CCC
-
Certification:
-
ce
Quick Details
-
Protection Level:
-
IP65
-
Max. Current:
-
5A
-
Max. Voltage:
-
250VAC
-
Place of Origin:
-
Zhejiang, China
-
Brand Name:
-
CDOE
-
Model Number:
-
HBDGQ30F-22D/J/S
-
Mounting hole size:
-
30mm
-
Head shape:
-
Dome
-
Operation type:
-
Momentary
-
Material:
-
stainless steel
-
Contact configuration:
-
2NO2NC
-
Terminal type:
-
Pin terminal
-
Rating value:
-
5A/250V AC
-
Protection class:
-
IP65,IK08
-
Certificate:
-
TUV,CE,ROHS,CCC
-
Certification:
-
ce
Products Description

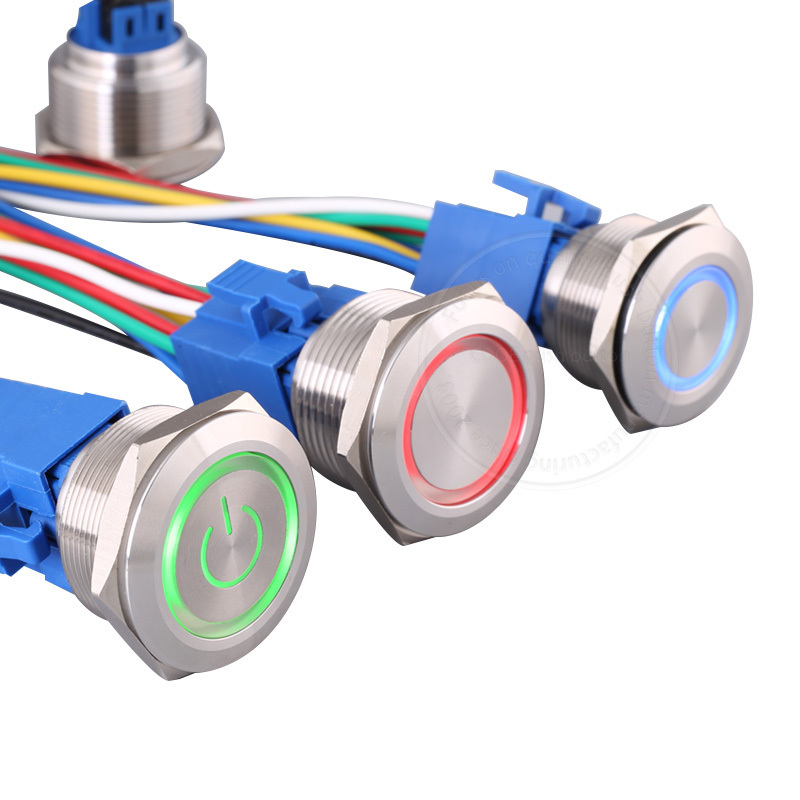

DPDT 30mm metal led lights illuminated waterproof momentary steel 2no 2nc push button switch
|
Mounting hole size :
|
|
|
30mm
|
|
||||
|
|
|
|
|
|
||||
|
|
|
|
|
|
||||
|
Switch value:
|
|
|
5A/250V AC
|
|
||||
|
Operation type:
|
|
|
Momentary
|
|
||||
|
Contact configuration:
|
|
|
2NO2NC
|
|
||||
|
Head shape：
|
|
|
Flat
|
|
||||
|
Crust material:
|
|
|
Stainless Steel
|
|
||||
|
Terminal type:
|
|
|
Pin terminal
|
|
||||
|
Electrical life :
|
|
|
≥50,000 times
|
|
||||
|
Mechanical life:
|
|
|
≥1，000,000 times
|
|
||||
|
Operation temperature:
|
|
|
-40℃~+80℃
|
|
||||
|
Contact Resistance:
|
|
|
≤50mΩ
|
|
||||
|
Insulation Resistance:
|
|
|
≥1000mΩ
|
|
||||
|
Protection grade :
|
|
|
IP65
|
|
||||
|
Contact material:
|
|
|
Silver alloy
|
|
||||
|
Illumination type:
|
|
|
Dot illuminated
|
|
||||
|
Led color:
|
|
|
R G B O W Y (One led)
|
|
||||
|
|
|
|
Red/Green,Red/Blue,Red/White bi-color led
|
|
||||
|
|
|
|
Red-Green-Blue tri-color led
|
|
||||
|
Led voltage:
|
|
|
2V(3V),5V(6V),12V,24V,36V,110V,220V
|
|
||||
|
Led life:
|
|
|
50,000 hours
|
|
||||
|
Certificates:
|
|
|
ISO 9001, UL,CE, SGS, ROSH,CCC,
|
|
||||
|
Why should you choose us?
|
|
|
|
|
||||
|
*
Founded in 2003 and experienced in the field of pushbutton switches for
more than 20 years
.
* We have a complete production line, advanced production equipment, experimental equipment and testing instruments, in strict accordance with the requirements of IS09001 quality assurance system. * And the world's top 500 enterprises have cooperation.
*
Multiple regional offices:Italy, South Korea, Shenzhen, Czech, Spain, South Africa and so on.
*
Participated in several exhibitions:
Munich, Germany, Korea Electronics Show, Shenzhen Hi-tech Fair, Japan, India, the United States and other international exhibitions
* A number of technical patents: CCC, UL, Rohs, TUV, UL, etc. * Main production buttons: A nti-vandal metal push button switches (which are waterproof), plastic push button switches, high current switches for equipment control and panel mounting, micro travel switches (which can be used in elevator),touch switch ,20a high current switch, signal lamp（indicator）, buzzers and push button accessories. * Large quantity can enjoy a certain discount. |
|
|
|
|
||||
Product details
Product packaging
Product packing method.
We pack
10 pieces
diameter
30 mm metal push button
into 1 foam box to protect them.
We supply 10 pieces rubber rings
.Then we packed this foam box into a plastic bag,it will packed into a small box with 3 layers corrugated .Finally ,we packed 20 boxes / 25 boxes into a 5 layers corrugated export carton.
Shipping:Title goes here.
1. DHL,TNT, FEDEX, UPS and other international express.
2. By air or by sea.
2. By air or by sea.
