Quick Details
-
Max. Turned Length (mm):
-
2000 mm
-
Spindle Motor Power(kW):
-
5.5kw
-
Year:
-
Latest Date
-
Place of Origin:
-
Shandong, China
-
Brand Name:
-
TAIHE
-
Model Number:
-
CA6240 CA6250
-
Voltage:
-
220V/380V
-
Dimension(L*W*H):
-
2700x1140x1750MM
-
Weight (KG):
-
2230 KG
-
Marketing Type:
-
Hot sales
-
Name:
-

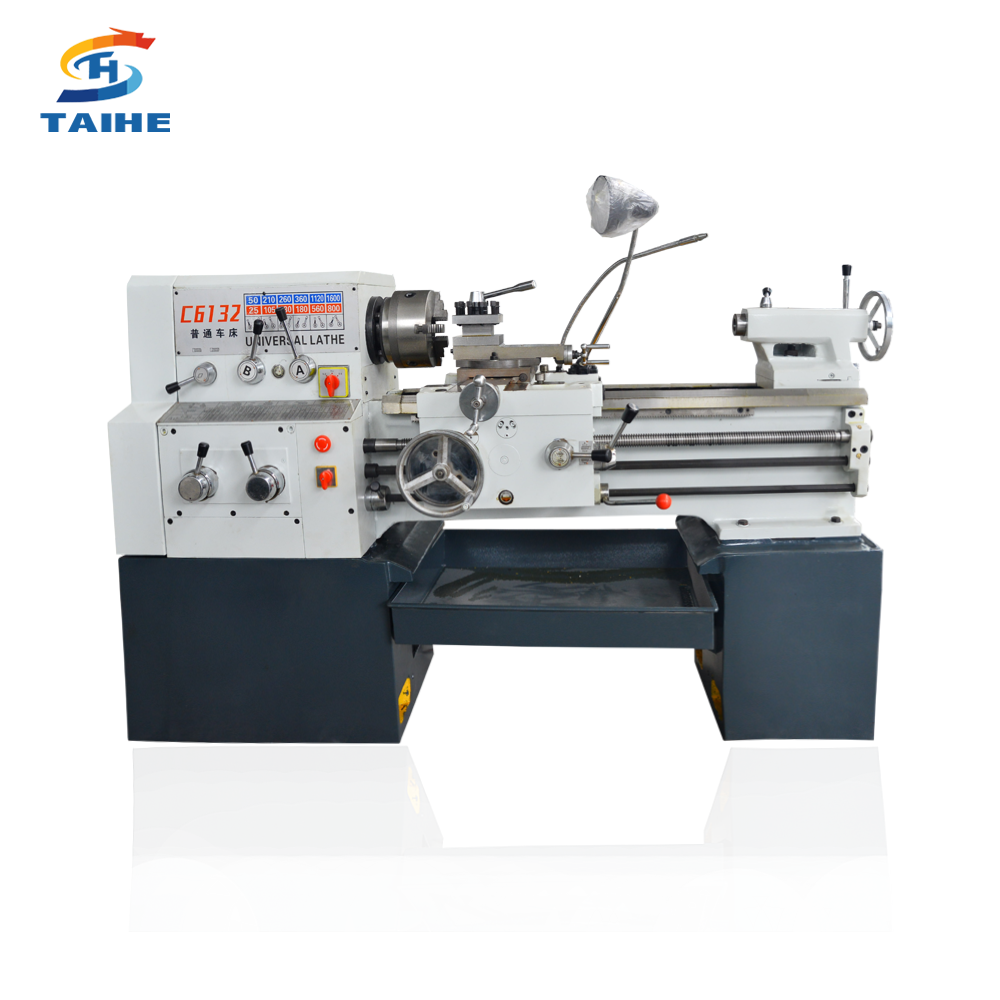

Manual Lathe Machine
-
Keyword:
-
universal milling machine
-
Machine Type:
-
lathe
-
Power (kW):
-
5.5kw
-
Certification:
-
CE ISO
-
Distance between centers:
-
750/1000/2200/3000/4000mm
-
Max. Saiving over bed:
-
800mm
-
After sales service provided:
-
Provide overseas third-party support
-
Application:
-
Manufacturing of General Machined Parts
-
Core components:
-
Bearings, motors, pumps, gears,engines, gearboxes
Quick Details
-
Max. Length of Workpiece (mm):
-
2000
-
Machining Capacity:
-
Medium Duty
-
Spindle Bore(mm):
-
80mm
-
Max. Turned Length (mm):
-
2000 mm
-
Spindle Motor Power(kW):
-
5.5kw
-
Year:
-
Latest Date
-
Place of Origin:
-
Shandong, China
-
Brand Name:
-
TAIHE
-
Model Number:
-
CA6240 CA6250
-
Voltage:
-
220V/380V
-
Dimension(L*W*H):
-
2700x1140x1750MM
-
Weight (KG):
-
2230 KG
-
Marketing Type:
-
Hot sales
-
Name:
-
Manual Lathe Machine
-
Keyword:
-
universal milling machine
-
Machine Type:
-
lathe
-
Power (kW):
-
5.5kw
-
Certification:
-
CE ISO
-
Distance between centers:
-
750/1000/2200/3000/4000mm
-
Max. Saiving over bed:
-
800mm
-
After sales service provided:
-
Provide overseas third-party support
-
Application:
-
Manufacturing of General Machined Parts
-
Core components:
-
Bearings, motors, pumps, gears,engines, gearboxes
Video Pescription
Product Description
Main technical parameters of the product:
|
Specifications
|
|
CA6261 CA6261B CA6261C
|
|
|
Max. Swing over bed
|
|
610mm
|
|
|
Max. Swing over carriage
|
|
370mm
|
|
|
Max. swing in gap
|
|
830mm
|
|
|
Effective gap length
|
|
210mm
|
|
|
Max. length of work piece
|
|
750mm/1000mm/1500mm/2000mm/2200mm/3000mm/4000mm
|
|
|
Width of bed
|
|
400mm
|
|
|
Section of turning tool
|
|
25x25mm
|
|
|
Spindle
|
Spindle speeds
|
10-1400rpm/16-1400rpm（24steps）
|
|
|
|
Hole through spindle
|
52mm. （80mm）. [105mm]
|
|
|
|
Spindle taper
|
NO.6（MT6）（Φ90 1：20）[Φ113 1：20]
|
|
|
Feed
|
Number of feeds
|
64 kinds（for each）
|
|
|
|
Range of metric threads（kinds）
|
（1-96mm）44 kinds
|
|
|
|
Range of inch threads（kinds）
|
（2-24tpi）21 kinds
|
|
|
|
Range of module threads（kinds）
|
0.25-48 (Moduie39kinds)
|
|
|
|
Range of pitch threads（kinds）
|
1-96DP（37kinds）
|
|
|
Tailstock
|
Max. tail stock spindle travel
|
150mm
|
|
|
|
Tail stock spindle diameter
|
75mm
|
|
|
|
Taper of tail stock spindle center hole
|
NO.5(MT5)
|
|
|
Main motor
|
|
7.5kw
|
|
|
Packing dimensions (L*W*Hmm)
|
Overall dimensions for750mm
|
2550x1140x1750
|
|
|
|
Overall dimensions for1000mm
|
2700x1140x1750
|
|
|
|
Overall dimensions for1500mm
|
3200x1140x1750
|
|
|
|
Overall dimensions for2000mm
|
3700x1140x1750
|
|
|
|
Overall dimensions for2200mm
|
4030x1140x1750
|
|
|
|
Overall dimensions for3000mm
|
4850x1140x1750
|
|
|
|
Overall dimensions for4000mm
|
5800x1140x1750
|
|
|
Weight (kg)
|
Length
|
G.W N.W.
|
|
|
|
Weight for 750mm
|
2300 2180
|
|
|
|
Weight for 1000mm
|
2380 2250
|
|
|
|
Weight for 1500mm
|
2577 2437
|
|
|
|
Weight for 2000mm
|
2940 2787
|
|
|
|
Weight for 2200mm
|
3120 2970
|
|
|
|
Weight for 3000mm
|
3600 3450
|
|
|
|
Weight for 4000mm
|
3950 3800
|
|
