Quick Details
-
Max. Loading Capacity:
-
1000L
-
Weight (KG):
-
580 KG
-
Place of Origin:
-
Shandong, China
-
Brand Name:
-
YUANYANG
-
Voltage:
-
380v
-
Dimension(L*W*H):
-
1.7 *0.6 *1.75 M (L * W *H )
-
Power (kW):
-
15 kW
-
Name:
-
15KW high speed disperser
-
Model:
-
FS-15
-
Motor power:
-
15KW
-
Processing capacity:
-
500-1000L
-
Rotate speed:
-
0-1450 rpm
-
Application scope:
-
Paint , Vanish, Printing ink, Coating, Color paste
-
Shaft lifting:
-
hydraulic lift
-
Lifting distance:
-
1.1m
-
Control:
-
by electric cabinet
Quick Details
-
Barrel Volume (L):
-
1000 L
-
Max. Loading Volume (L):
-
1000 L
-
Range of Spindle Speed(r.p.m):
-
1 - 1450 r.p.m
-
Max. Loading Capacity:
-
1000L
-
Weight (KG):
-
580 KG
-
Place of Origin:
-
Shandong, China
-
Brand Name:
-
YUANYANG
-
Voltage:
-
380v
-
Dimension(L*W*H):
-
1.7 *0.6 *1.75 M (L * W *H )
-
Power (kW):
-
15 kW
-
Name:
-
15KW high speed disperser
-
Model:
-
FS-15
-
Motor power:
-
15KW
-
Processing capacity:
-
500-1000L
-
Rotate speed:
-
0-1450 rpm
-
Application scope:
-
Paint , Vanish, Printing ink, Coating, Color paste
-
Shaft lifting:
-
hydraulic lift
-
Lifting distance:
-
1.1m
-
Control:
-
by electric cabinet
Product Description

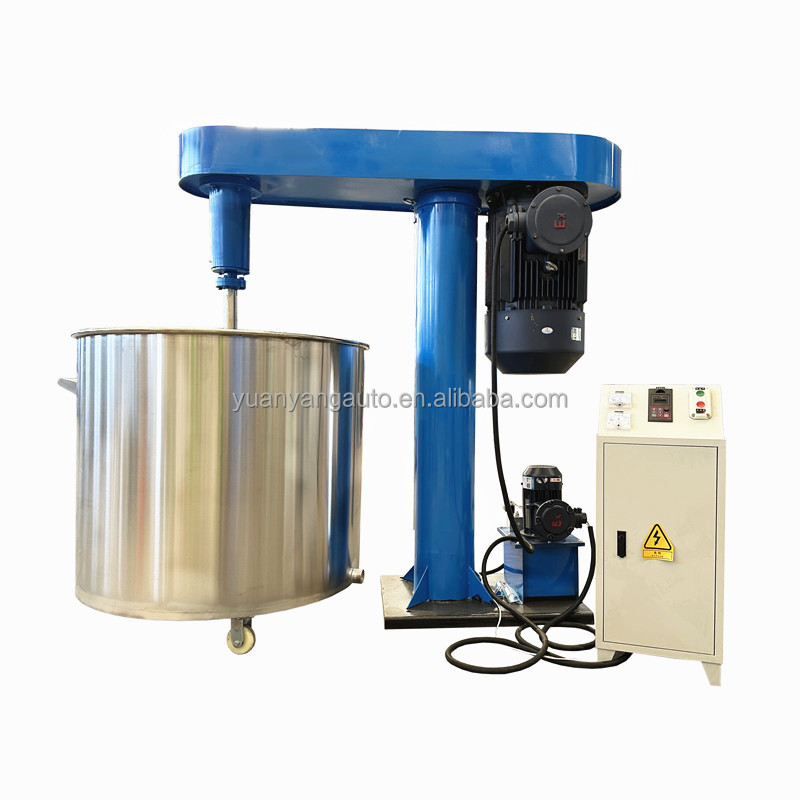

15KW High speed Disperser
Model:
15KW
Type : hydraulic lifting
Rotate speed : 0-1450 RPM
Structure : Mainly composed of five parts: Mixing part, Frame part, Hydraulic system, Driving system and Electric control system.
Application : Paint, Printing ink, Coating, Color paste, Cosmetic, Pesticide etc.
Type : hydraulic lifting
Rotate speed : 0-1450 RPM
Structure : Mainly composed of five parts: Mixing part, Frame part, Hydraulic system, Driving system and Electric control system.
Application : Paint, Printing ink, Coating, Color paste, Cosmetic, Pesticide etc.
SPECIFICATION
|
Model
|
FS-15
|
|
Working capacity
|
500-1000L
|
|
Motor
|
15KW explosion proof
|
|
Speed
|
0-1450 RPM adjustable
|
|
Lifting
|
hydraulic lift
|
|
Lifting height
|
1.1 m
|
|
Shaft rotating angle
|
360°
|
|
Dimension
|
1700 * 600 * 1750 mm
|
|
Net weight
|
about 500 kgs
|
