Quick Details
-
Place of Origin:
-
Shanghai, China
-
Brand Name:
-
EAST
-
After-sales Service Provided:
-
Remote online service provided
-
Type:
-
HFF-101 and HFF-102
-
Operating Pressure/Tem:
-
Max 10.0bar/120 Deg C
-
Material of Construction:
-
SS304,SS316
-
Surface Finish:
-
Glass Bead Blasted etc.
-
Flow rate:
-
20m3/h,40m3/h
-
Certificates:
-
CE ISO9001
-
Usage:
-
Liquid Filter
-
Structure:
-
Vertical opening
-
OEM:
-
YES
Quick Details
-
Weight (KG):
-
10
-
Marketing Type:
-
Hot Product 2023
-
Core Components:
-
O type seal ring, Filter cartridge
-
Place of Origin:
-
Shanghai, China
-
Brand Name:
-
EAST
-
After-sales Service Provided:
-
Remote online service provided
-
Type:
-
HFF-101 and HFF-102
-
Operating Pressure/Tem:
-
Max 10.0bar/120 Deg C
-
Material of Construction:
-
SS304,SS316
-
Surface Finish:
-
Glass Bead Blasted etc.
-
Flow rate:
-
20m3/h,40m3/h
-
Certificates:
-
CE ISO9001
-
Usage:
-
Liquid Filter
-
Structure:
-
Vertical opening
-
OEM:
-
YES

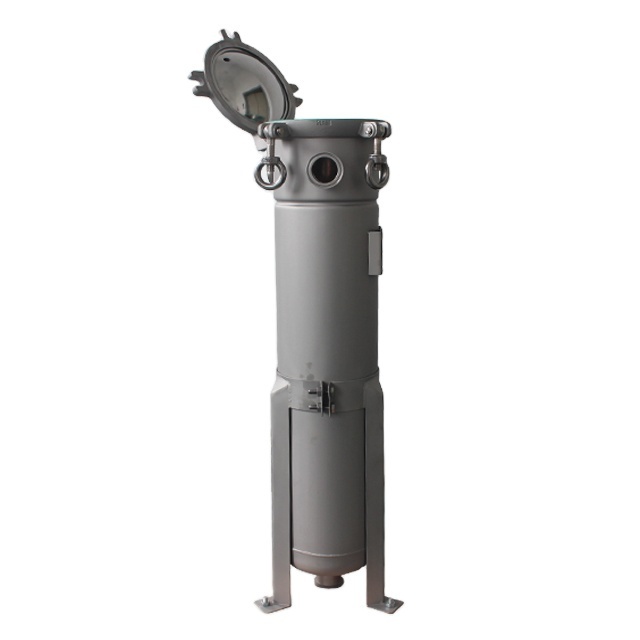

EAST Factory #2 Bag Filter Housing ,Stainless steel Filter Stainer
EAST Factory Stainless Steel Water Bag Filter Housing For Refinery
Our single/durable bag filter designs to give you the convenience in handling your filtration process, easy opening mechanism and bag filter fixing ring to ensure good sealing.
It is suitable for general filtration requirement in all the industrial applications with liquid of low to medium viscosity.
|
Type |
HFF-B101-050G |
HFF-B102-050G |
|
|
Size |
Size 01 |
Size 02 |
|
|
Filter Area |
0.25m 2 |
0.50m 2 |
|
|
Theoretical Flow Rate |
20m³ /hour |
40 m³ /hour |
|
|
Maximum Operating Pressure |
10.0bar |
10.0bar |
|
|
Maximum Operating Temperature |
120 Deg C |
120 Deg C |
|
|
Material of Construction -- Cylinder, the part against liquid, Restrainer Basket |
Type 304 or 316L stainless steel |
||
|
Seal Material |
Buna, EPDM, Viton, PTFE, |
||
|
Standard Inlet/Outlet |
2” flange or BSP 2” socket |
||
|
Surface Finish |
Glass Bead Blasted (standard) |
||
|
Filter Volume |
15.5 litres |
27.0 litres |
|
|
Housing Weight |
15kg (approx.) |
20kg (approx.) |
|
|
Installation Height |
98cm (approx.) |
181cm (approx.) |
|
|
Installation Space |
50cm x 50cm (approx.) |
50cm x 50cm (approx.) |
|
EAST Factory Stainless Steel Water Bag Filter Housing For Refinery
1. Versatile design, easy operation
2. Swing eyebolt
3. Unique& reliable seal designs
4. Can be equipped with all standard bags.
5. Inner and outer surface of the cylinder using sandblasting, easy to clean
6. Reference to the ASME standard of design
7. Operating pressure: 10 bar / 160 ° C
EAST Factory Stainless Steel Water Bag Filter Housing For Refinery
·Foot -stool or pothook to fix the filter
·Floating ball makes bag changing easy
·Magnetic bar adsorb metallic particle
·Mesh basket can replace the filter bag
·Duplex filters for double flow also available
|
HFF1 |
A1- |
10- |
020A |
|
1 - Single
Bag filter
2 - Double
Bag Filter |
A - SS304
S - SS316
SL - SS316L
1 - #01
2 - #02 |
10 Bar
16 Bar |
B – BSP Socket
N – NPT Socket
A - ANSI Flange
J - JIS Flange
D - DIN Flange
2" – 020 2.5”– 025 3”– 030 |
- Chemical
·Pharmaceutical
·Food & Beverage
·Paint
·Automotive Coating
·Oil Refinery
·Marine
·Water Treatment
