Quick Details
-
Model Number:
-
CR1000-I
-
Product name:
-
CR1000
-
Function:
-
Test Common Rail Injector
-
Warranty:
-
1 Year
-
Weight:
-
6
-
Color:
-
Green,Blue,White
-
Usage:
-
Grafting equipment required
-
Type:
-
Small, convenient and flexible
Quick Details
-
Power:
-
Electronic
-
Place of Origin:
-
China
-
Brand Name:
-
Dongtai
-
Model Number:
-
CR1000-I
-
Product name:
-
CR1000
-
Function:
-
Test Common Rail Injector
-
Warranty:
-
1 Year
-
Weight:
-
6
-
Color:
-
Green,Blue,White
-
Usage:
-
Grafting equipment required
-
Type:
-
Small, convenient and flexible

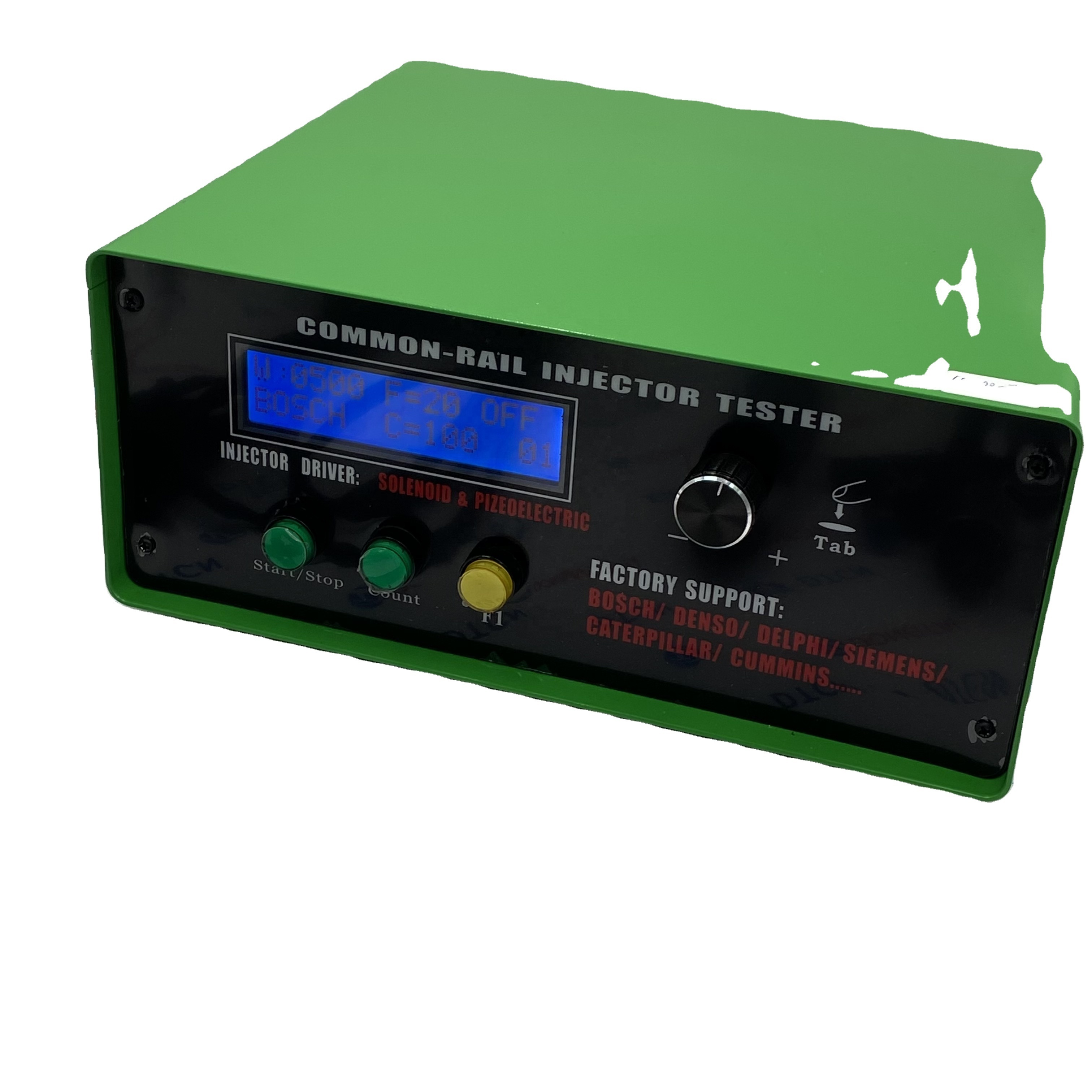

tester can test nozzle spray pattern and injector back leakage,
to check the CR injector with either solenoid or piezo technol CR1000 , the repair tester to simulate
the engine Control Unit (ECU) driving signals for a common rail injector of either solenoid
technology or piezo technology, made by Bosch, Delphi, Denso and Siemens. The user is able to
set the control parameters of fuel injection drive signals.
By combining of a CR1000 tester and a high pressure fuel source, which may be a mechanical manual pump, or an electrical motor driven pump, or a pneumatic driven pressure booster,
to feed the CR injector, the user is able to fulfill the tasks, such as nozzle spray pattern and injector back leakage, to check the CR injector with either solenoid or piezo technology.
Design Features
1. Modulated driving signal to ensure the safety of the solenoids of the injectors
2. Injector driving signal Adjustable frequency and pulse width
3. Short circuit protection for solenoid driving signals
4. Rich accessories, ready to test Bosch, Denso and Delphi injectors
Main parameter
|
Maximum pressure |
40MPa |
|
Overall dismensions |
320*300*500 |
|
Net weight |
6kg |
|
Pressure guage range |
0-60 Mpa |
| company name | Dongtai |
| place of origin | China |
| quality | high |
