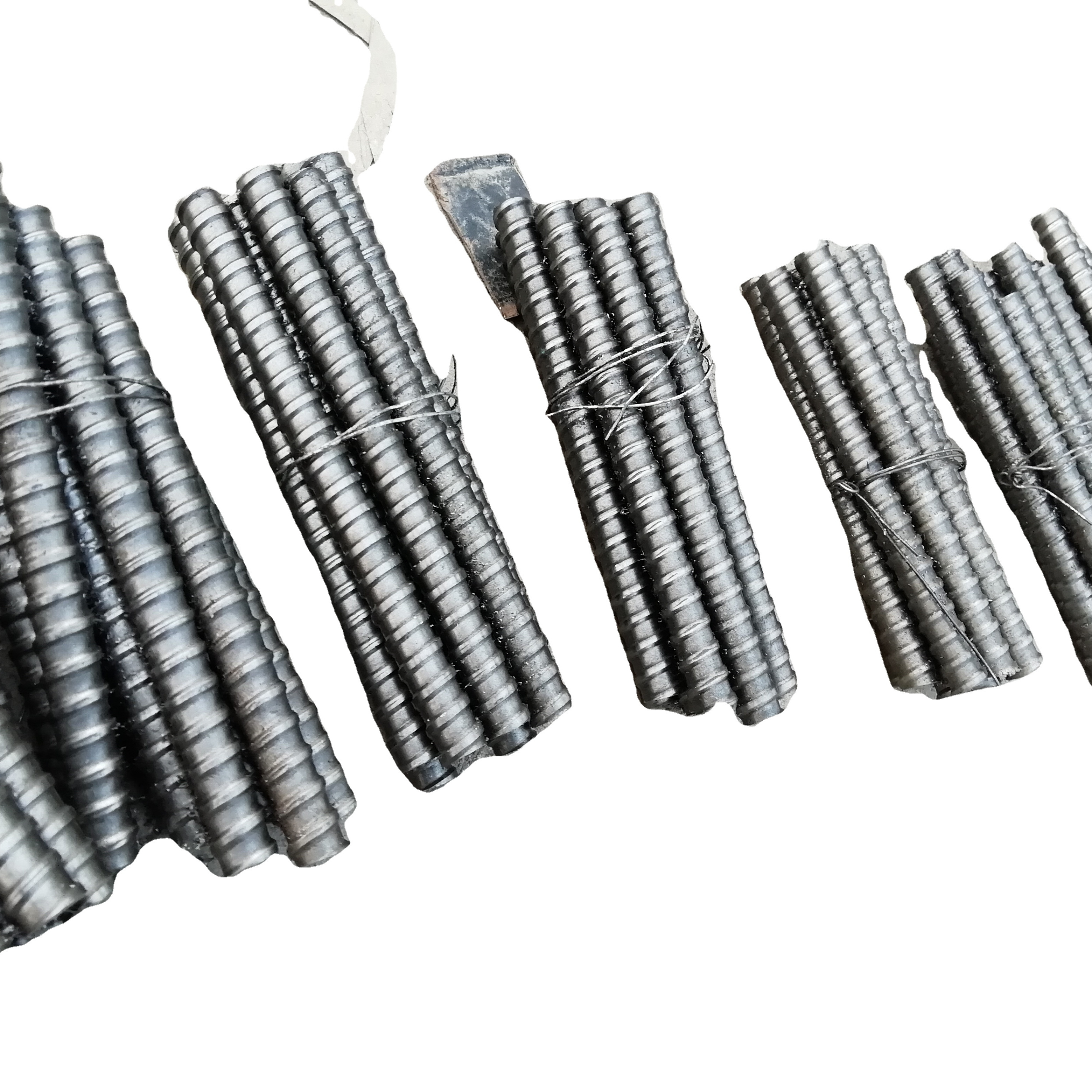

formwork accessories hot rolled thread tie rod for construction

formwork accessories hot rolled thread tie rod for construction

FOB Reference Price: Get Latest Price

≥500 Pieces

US $0.5

≥5000 Pieces

US $0.49

≥10000 Pieces

US $0.48

Free Inquiry

Customized Request

Product Details

{{item.text}}

Quick Details

Application:: Office Building

Design Style:: Traditional

Type:: cast iron

Place of Origin:: Hebei, China

Brand Name:: x

Model Number:: 400--680g

Product name:: Casted iron Formwork tie rod wing nut

Surface finish:: Hot Dip Galvanized

samples:: free

Packing:: bag

Material:: Casting steel/iron

Length:: customized

Accessories:: wing nut

size:: 15/17

process:: casting

Quick Details

Warranty:: 1 Year

After-sale Service:: Online technical support, Onsite Installation, Onsite Inspection

Project Solution Capability:: graphic design

Application:: Office Building

Design Style:: Traditional

Type:: cast iron

Place of Origin:: Hebei, China

Brand Name:: x

Model Number:: 400--680g

Product name:: Casted iron Formwork tie rod wing nut

Surface finish:: Hot Dip Galvanized

samples:: free

Packing:: bag

Material:: Casting steel/iron

Length:: customized

Accessories:: wing nut

size:: 15/17

process:: casting

Product Description

Formwork tie nut Ø 15/17, in galvanized cast iron, with 2 or 3 wings. Available with Base 80/100 mm

Tie rod types	17mm tie rod	12mm tie rod	20mm tie rod	hot rolling tie rod
Material (mm)	15/17	10/12	20/22,21/23,18.8/21	15/17
Pitch(mm)	10/6.35	4	10	10
Length(m/pc)	1-6	1-6	1-6	1-6
Weight(Kg/m)	1.5	0.72	2.5	1.47
Surface	Natural,EG	Natural,EG	Natural,EG	Natural,EG
Colour	Original color, silver,golden	Original color, silver,golden	Original color, silver,golden	Original color, silver,golden
Craft	cold rolled	cold rolled	cold rolled	hot rolled
Pull(KN)	45# Steel,140-150;Q235 Steel,90-100	50-65	230-245	180-190

tie nut types	tie nut 2legs	tie nut 3 legs	combined nut	wing nut
material	cast iron/steel	cast iron/steel	cast iron	cast iron
weight	400g,420g,450g,500g,530g,550g,580g,650g	400g,420g,450g,500g,530g,550g,580g,650g	1.05kg	300g
surface	galvanized	galvanized	galvanized	galvanized
Craft	cast	cast	cast	cast
colour	silver/yellow	silver/yellow	sliver/yellow	sliver/yellow

Formwork tie-rod Wing Nut
It is high quality construction formwork fastner and used in many large construction projects,Such as High rise building,
Bridge,Tunnel, Nuclear power projects.
Features:
1. High tensile strength material
2. High process precision, precise thread.
3. Surface treatment: electroplated or hot dip galvanized.

Name:Formwork tie rod wing nut

Material:Casting steel

Size:Dia 15mm

Type: two wing

Process:Casting

weight:0.4kgs

Logo:Customized logo are
available

Title goes here.

Q: What's your MOQ(minimum order quantity)?
A: 10 tons at least.
2. Q: What's your packing methods?
A: Usual packed into woven bag + steel pallets or as your requirement
3. Q: What's your payment terms?
A: 30% advanced payment and balanced against copy of BL or 100% L/C at sight, or negotiate according to the order status.
4. Q: What's your delivery time?
A: About 20 days after received the advance payment or L/C.
5. Q: Are you manufacturer or trader?
A: We are the manufacturer of SCAFFOLDINGS&FORMWORK SYSTEM for many years.

Wing nuts and Tie rods as a whole facility are used widely in formwork construction. There are single wing nut, butterfly wing
nut, two anchor wing nut, three anchor wing nut, combination wing Nut. Because of this structure, wing nuts can be easily
tightened and loosened by hand without any tools. Wing nuts have casting and forging types by processing technology , common
thread size is 17mm/20mmon thread size is 17mm/20mm.
Material usually use Q235 carbon steel, 45# steel, surface finished as galvanized, zinc-plated and natural color. Any
specifications’ nuts can be produced according to your requirements.
