Quick Details
-
Warranty:
-
1 year
-
Brand Name:
-
Master Eagle or OEM
-
Model Number:
-
DP-70B
-
Place of Origin:
-
Fujian, China
-
Cable Length:
-
20cm
-
Outlet Size:
-
0
-
Usage:
-
Spraying/Disinfection/Garden/Greenhouse
-
Adapater Voltage:
-
24 DC
-
Max Pressure:
-
70PSi
-
Current:
-
9A
-
Flow rate:
-
19 LPM/ 5.0 GPM
-
Type of pump:
-
Diaphragm Pump
-
Certification:
-
ce
Quick Details
-
Application:
-
Automotive Industry, Drinking water treatment, Industrial Utilities, Irrigation and Agriculture, Machining, Washing and Cleaning, Water Distribution, Water Treatment Solutions
-
Pressure:
-
60Psi
-
Voltage:
-
24v DC
-
Warranty:
-
1 year
-
Brand Name:
-
Master Eagle or OEM
-
Model Number:
-
DP-70B
-
Place of Origin:
-
Fujian, China
-
Cable Length:
-
20cm
-
Outlet Size:
-
0
-
Usage:
-
Spraying/Disinfection/Garden/Greenhouse
-
Adapater Voltage:
-
24 DC
-
Max Pressure:
-
70PSi
-
Current:
-
9A
-
Flow rate:
-
19 LPM/ 5.0 GPM
-
Type of pump:
-
Diaphragm Pump
-
Certification:
-
ce

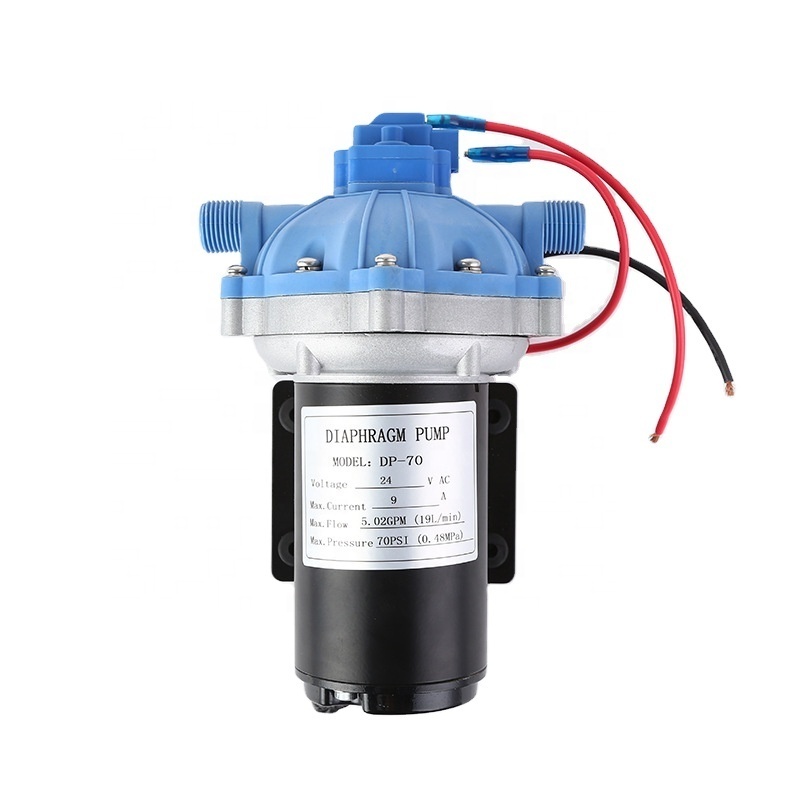

DC24V 5.0 GPM Diaphragm Pump High Pressure Water Delivery Application Pump For Agricultural Spraying De-icing Mobile Washing system
1. DP-70A 70psi 19LPM small dc diaphragm pump 24volt water pump is applied to convey water and chemical, medium temperature can reach 60 °C(140°F).
2. It is low noise, corrosion resistance, high pressure, excellent self-priming 5 m(16.4ft) and easy dismantling.
3. Safe low voltage, ensures personal safety.
4. Built-in pressure switch to protect pump running from being damaged and built-in relief valve control the normal operation of the pump.
5. Widely used in household water booster and car wash, sea water desalination for ship, also for water purification system, filter, spray equipment, general industrial equipment, chemical metering, hygienic, pollution control, printing.
Model: DP-70B
Max. Capacity: 19. 0L/min(5.02US.GPM)
Max. Pressure: 70psi(4.8Bar)
Max. Suction: 5m(16.4ft)
Max.medium temperature: 60°C(140°F)
Casing parts material: Nylon, Glass Fiber Reinforce, Aluminium Alloy
(Standard) Diaphragm material: EPDM (can select NBR, FKM, Need to extend delivery time)
Current: 9A
Voltage: DC 24V (12v option)
Speed: 1800RPM
