Quick Details
-
Place of Origin:
-
Shandong, China
-
Brand Name:
-
KLO POWER
-
Model Number:
-
KLO-500A-12V
-
Output Frequency:
-
20KHZ
-
Output Current:
-
0-500A
-
Application:
-
electroplating
-
Type:
-
High Frequency Switch mode Rectifier
-
Efficiency:
-
90%
-
Product Name:
-

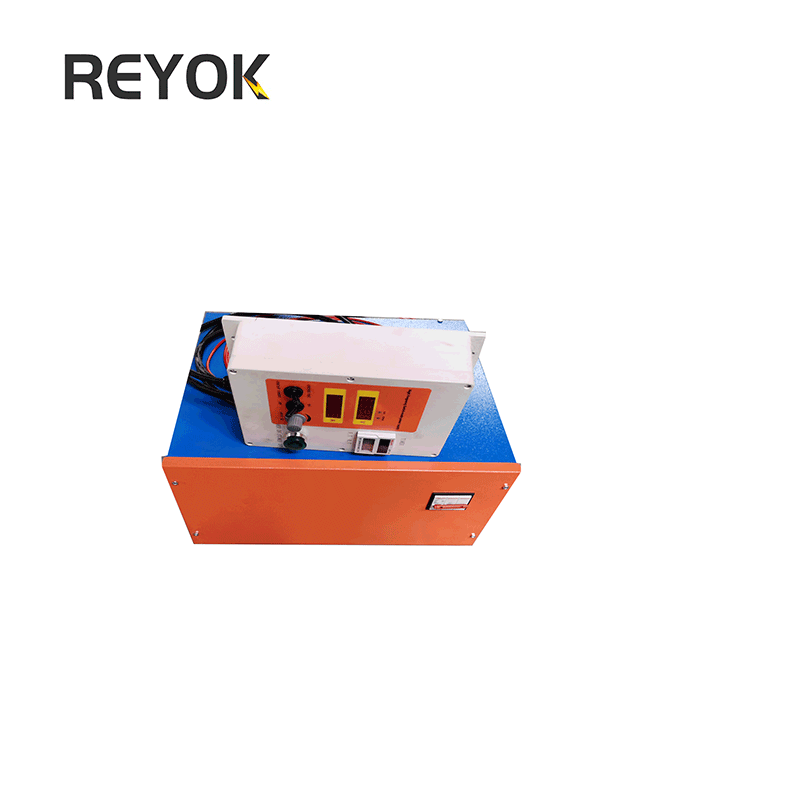

12 volt 500 amp with ampere hour meter electroplating rectifier
-
Color:
-
OEM
-
Plating rectifier:
-
High Frequency Rectifier
Quick Details
-
Output Power:
-
6KW
-
Input Voltage:
-
380V/400V/415V/440V/480V
-
Output Voltage:
-
0-12V
-
Place of Origin:
-
Shandong, China
-
Brand Name:
-
KLO POWER
-
Model Number:
-
KLO-500A-12V
-
Output Frequency:
-
20KHZ
-
Output Current:
-
0-500A
-
Application:
-
electroplating
-
Type:
-
High Frequency Switch mode Rectifier
-
Efficiency:
-
90%
-
Product Name:
-
12 volt 500 amp with ampere hour meter electroplating rectifier
-
Color:
-
OEM
-
Plating rectifier:
-
High Frequency Rectifier
We are professional and creative manufacturer. Our reliable quality of rectifiers will definitely satisfy your requirements.
1000a 10v rectifier
Advantage:
1) Small, light and high efficiency
2) High frequency pulse current output
3) Flexible use, simple operation
4) Complete protection function
5)extra function:0-5v,4-20ma,0-10v,rs485,PLC interface,timer,ampere hour meter,slow start,touch screen
Follow ISO 9001 quality standard,CE certificate
| 12V 500a electroplating rectifier with ampere hour meter | |
| input voltage |
3 phase 380VAC,OR OEM 415V,440V,480V,600VAC |
| output voltage | 0-12v dc adjustable |
| output current | 0-500a adjustable |
| output power | 6KW |
|
Adjustment range |
From 0-100 % continuously adjustable voltage and current |
|
Output conditioning method |
Switching mode, PWM Pulse control |
|
Machine efficiency |
≥9 0 % |
|
Constant voltage control accuracy |
Within 1.0%of rated output voltage |
|
Constant current control accuracy |
Within 1.0%of rated output current |
|
Insulation resistance |
5MΩ or more |
|
Cooling system |
Forced air cooling water cooled can be choosed |
|
Operating temperature |
-15-45℃(overheating self-protect) |
|
Ambient temperature |
-30-65℃ |
|
Relative humidity |
30-85% |
|
protection |
Over heating,over current,over voltage,lack phase,over load,input over/low voltage |
|
Control mode |
6 meter cables Remote control box ,front panel control,PLC interface,touch screen can be OEM made |
