Quick Details
-
Coil Number:
-
AUTOTRANSFORMER
-
Place of Origin:
-
Hubei, China
-
Brand Name:
-
Hance
-
Model Number:
-
HL
-
Accuracy class:
-
0.01(s),0.02(s),0.05(s)
-
Weight:
-
30kg
-
Shape dimension(mm):
-
380(L)*240(W)*460(H)
-
Power factor:
-
COS =0.8,1.0
-
Color:
-
white and yellow
-
Certificate:
-
CNAS
-
Frequency:
-
50/60Hz
-
Rated Voltage:
-
500V
-
Output:
-
5A / 1A
-
Warranty:
-
1 Year
Quick Details
-
Use:
-
current
-
Phase:
-
Single
-
Coil Structure:
-
TOROIDAL
-
Coil Number:
-
AUTOTRANSFORMER
-
Place of Origin:
-
Hubei, China
-
Brand Name:
-
Hance
-
Model Number:
-
HL
-
Accuracy class:
-
0.01(s),0.02(s),0.05(s)
-
Weight:
-
30kg
-
Shape dimension(mm):
-
380(L)*240(W)*460(H)
-
Power factor:
-
COS =0.8,1.0
-
Color:
-
white and yellow
-
Certificate:
-
CNAS
-
Frequency:
-
50/60Hz
-
Rated Voltage:
-
500V
-
Output:
-
5A / 1A
-
Warranty:
-
1 Year

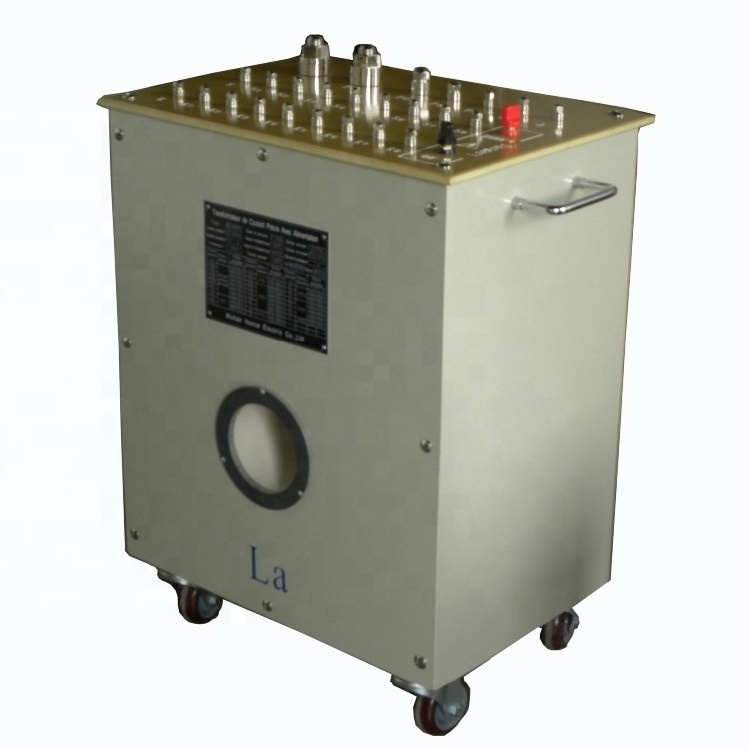

Products overview: This standard current transformer used for calibration of current transformer which below 0.05 level , this precise current transformer is composed by a windings and secondary windings.
Technical indicators:
|
Environmental conditions |
Temperature: -5°C~40°C Relative humidity: <80% |
|
capacity |
5VA 1VA |
|
Power factor |
COS =0.8,1.0 Allow long-term work on the rated current, through the core above 150A. |
|
Standard current ratio |
5A-1000A |
|
Accuracy level |
0.01S |
|
Shape dimension(mm) |
380(L)*240(W)*460(H) |
|
Weight (kg) |
30 |
Product features:
The user could calibrate as the standard current ratio indicated on the nameplate
Could do 5/5 or 1/1 current ratio indicated
This instrument with casters where,which easy to be carried
