- Product Details
- {{item.text}}
Quick Details
-
Weight (KG):
-
800 KG
-
Power (kW):
-
11kw
-
After-sales Service Provided:
-
Engineers available to service machinery overseas
-
Application:
-
full automatic Wood Process
-
Blade diameter:
-
305mm
-
power of saw motor:
-
3kw
-
marking motor:
-
1.1kw
-
spindle speed:
-
6000r/min
-
max working width:
-
510mm
-
max working thickness:
-
150mm
-
Weight:
-
650KG
-
Overall dimensions::
-
2400*1500*1500mm
Quick Details
-
Place of Origin:
-
Guangdong, China
-
Brand Name:
-
WELLMAX
-
Machine Type:
-
Wood copy shapper
-
Weight (KG):
-
800 KG
-
Power (kW):
-
11kw
-
After-sales Service Provided:
-
Engineers available to service machinery overseas
-
Application:
-
full automatic Wood Process
-
Blade diameter:
-
305mm
-
power of saw motor:
-
3kw
-
marking motor:
-
1.1kw
-
spindle speed:
-
6000r/min
-
max working width:
-
510mm
-
max working thickness:
-
150mm
-
Weight:
-
650KG
-
Overall dimensions::
-
2400*1500*1500mm

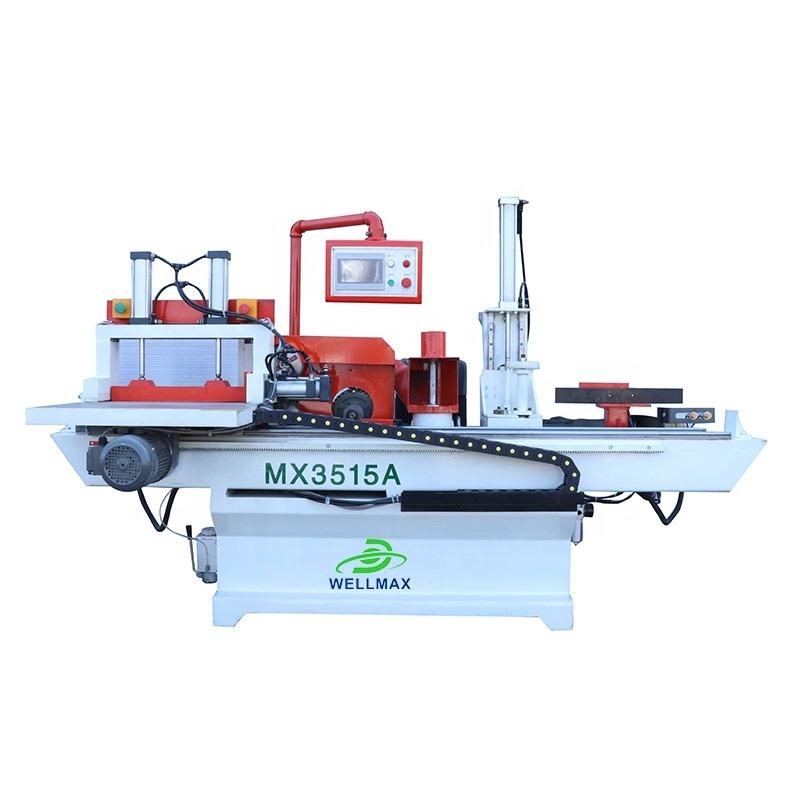

MX3515A full automatic wood finger joint shaper machine with glue applicator
Introduction :
Finger joint cutting machine is a mechanical processing equipment to improve the utilization rate of wood and the performance of wood.It is widely used in wood processing industry.
1.Working table with high strength and no deformation.
2.The push cylinder has a heavy load and high precision, also machine is more accurate when used.
3.The machine uses high-quality dedicated motor and strong power.
4.Imported PPT rails, precision bearings, light operation.
Technical Parameters:
| Model | MX3515A |
| max working width | 510mm |
| max working thickness | 150mm |
| cutting diameter | 160mm |
| max diameter of saw blade | 305mm |
| Main motor power | 11kw |
| Power of saw motor | 3kw |
| Marking motor | 1.1kw |
| Power of variable frequency | 0.75kw |
| Spindle speed | 6000r/min |
| Weight | 800kg |
| Dimension | 2400x1500x1500mm |
Wood finger joint shaper machine details pictures :
Packing & Shipping:
Our Service
FAQ
1. Can I visit your company?
Warmly welcome to visit our factory, please contact us to make an appointment before coming.
2. How many days the machine can be delivered?
If machine in stock we can deliver it within 3 days,if no stock available the standard delivery time is 15 days.
3. What is your price term and payment term?
Price term: EXW,FOB,CIF ect.
Payment term: T/T, ect.
4. Whats the shipping cost?
This is decided by your import port and machine quantity,different size,different quantity,different port the shipping cost will be different.
5. Whats your company warranty policy?
The machine have standard one year warranty,during warranty period if machine meet quality issue we will send spare parts to replace or sending engineer to fix it.
6.How to install and operate the machine?
We will provide installation and operating manual book,you can follow the manual book to install and operate,also we can provide video for you to follow with.
