Quick Details
-
Place of Origin:
-
China
-
Brand Name:
-
Hezhi
-
Year:
-
2022
-
Voltage:
-
customized
-
Weight (T):
-
2 T
-
Motor Power (kw):
-
33 kw
-
Applicable Industries:
-
Other
-
Marketing Type:
-
Other
-
Machine Material:
-
Iron Steel
-
Processing Diameter:
-
customized , no limited
-
Drive Method:
-
Hydraulic drive
-
Function:
-
Making Sealing Head
-
Color:
-
Blue / Green /as your request
-
After Warranty Service:
-
Online support , Video technical support
-
Certification:
-
CE / ISO
Quick Details
-
Machine Type:
-
Four Column type
-
Slide Stroke (mm):
-
customized
-
Return Force (kN):
-
2500 kN
-
Place of Origin:
-
China
-
Brand Name:
-
Hezhi
-
Year:
-
2022
-
Voltage:
-
customized
-
Weight (T):
-
2 T
-
Motor Power (kw):
-
33 kw
-
Applicable Industries:
-
Other
-
Marketing Type:
-
Other
-
Machine Material:
-
Iron Steel
-
Processing Diameter:
-
customized , no limited
-
Drive Method:
-
Hydraulic drive
-
Function:
-
Making Sealing Head
-
Color:
-
Blue / Green /as your request
-
After Warranty Service:
-
Online support , Video technical support
-
Certification:
-
CE / ISO
The Sealing h

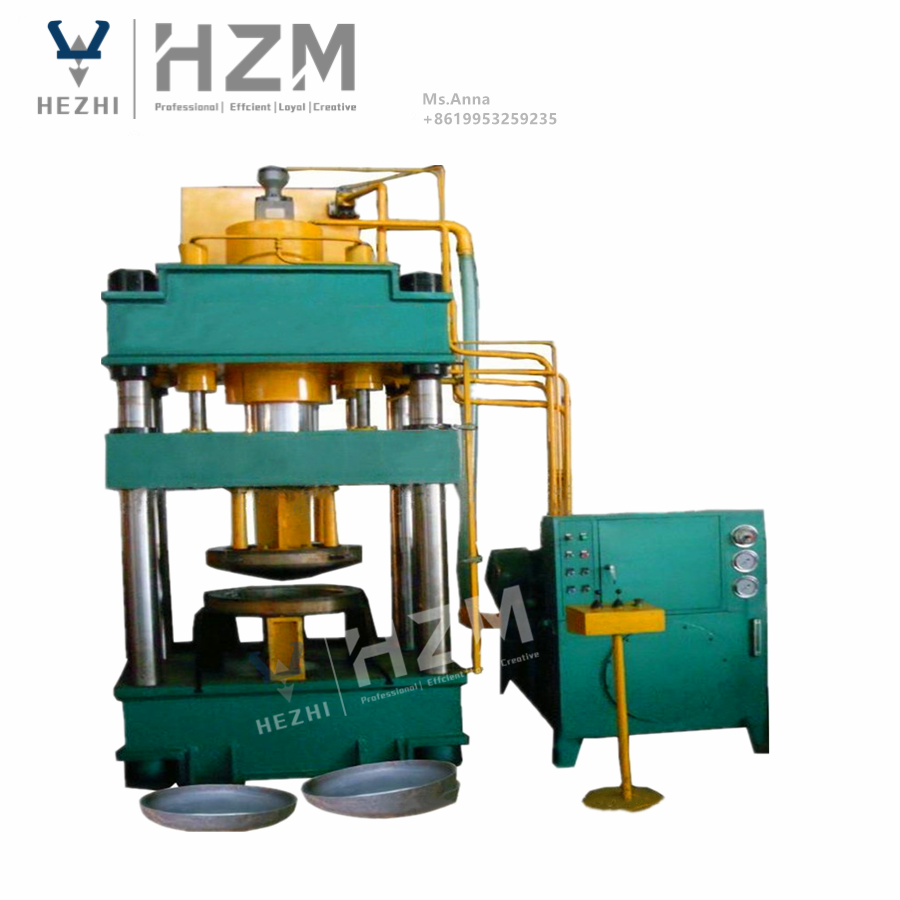

ead stretching and forming machine, basically a four-column hydraulic press, suitable for the production of all kinds of pressure vessel heads/end caps, also can be used for all kinds of thin and thick steel plate drumming, folding, leveling work, with the function of stretching, pressing, forming, can be cold pressed once formed, can also be hot pressed into shape, head production speed, high output, low scrap rate, can produce various sizes of heads, servo numerical control system, adjustable speed, pressure servo-controlled system, adjustable speed, adjustable pressure, low noise, energy-saving and power-saving, and smooth operation of the whole equipment. It is the ideal equipment for head manufacturers.
Support Customized !
Sealing Head is the end cap of pressure vessel and the main pressure-bearing part, which can be divided into spherical head, ellipsoidal head, butterfly head, dome head, conical shell head, flat cap and so on, used for storage tank, heat exchanger, reactor, boiler, separation equipment and so on.
|
Model
|
Nominal Force
|
Return Force
|
Ejection Force
|
Working Pressure
|
Slider Stroke
|
Power
|
|
HZ32-315T
|
3150
|
630
|
630
|
25
|
800
|
18.5
|
|
HZ32-500T
|
500
|
5000
|
1000
|
25
|
800
|
37
|
|
HZ32-630T
|
6300
|
1200
|
1600
|
25
|
900
|
37
|
|
HZ32-800T
|
8000
|
1200
|
2000
|
25
|
900
|
37
|
|
HZ32-1250T
|
12500
|
1200
|
3150
|
25
|
800
|
74
|
|
HZ32-2000t
|
20000
|
4000
|
3150
|
25
|
800
|
90
|
Main Features of the Four Columns Hydraulic press machine for sealing head molding :
1. Structure:
consists of an upper beam, a slide block, a workbench, an upright post, a main cylinder, hydraulic system and electrical system components. The column uses the high quality 45# forging steel and the surface hardness can reach HRC38-42.The main oil cylinder seals use imported materials to ensure reliable sealing.
2. Hydraulic System:
The hydraulic system device is arranged on the right side of the press, with cartridge integrated system, flexible action, reliable work, good sealing performance. The hydraulic pump comprises an oil tank, a high-pressure pump, motor, cartridge valves and other components.
3. Electrical Control System:
an independent electric cabinet and a centralized control panel.
4. Operation:
Two working modes as inches and semi-automatic strokes.
5. Security:
The emergency stop button can stop the machine immediately. The slide has Limit Switch on both up and down of the work table. Hydraulic support safety circuit is arranged in the cylinder piston inside of the hydro-cylinder.
Qingdao Hezhi is a manufacturer for Foundry Machinery & Shot Blasting Machine since 2005.
Products cover Moulding Equipment,Sand Reclamation Equipment, Sand Mixer, Dust Collector and full-line Shot Blasting Machines.
Products cover Moulding Equipment,Sand Reclamation Equipment, Sand Mixer, Dust Collector and full-line Shot Blasting Machines.
We owned 3600m2 work shop area for production with 2x10 cranes.
Another 2600m2 space is planned for extension.
ISO9001 is achieved. Full set of production ,QC(3 staff) and after-sales (3 staff) guarantee none-defective products.
3D Solidworks is used in designing. R&D staff with over 20 years expertise experience meet your customized requirements.
Our philosophy: Professional, Efficienct, Loyal,
Our mission: To creat core vlaue for our customer, our staff and our company.
Choose Hezhi,Get factory price and reliable Foundry Machinery!
Another 2600m2 space is planned for extension.
ISO9001 is achieved. Full set of production ,QC(3 staff) and after-sales (3 staff) guarantee none-defective products.
3D Solidworks is used in designing. R&D staff with over 20 years expertise experience meet your customized requirements.
Our philosophy: Professional, Efficienct, Loyal,
Our mission: To creat core vlaue for our customer, our staff and our company.
Choose Hezhi,Get factory price and reliable Foundry Machinery!
A: Normally 15-25 days. Larger model machine or production line needs 35 days around
Q: How to control your quality ?
A: First of all, we have professional technical team to design the machine. And we have strict production system, the quality inspection department will check the quality regularly.
For the smaller machine we will install the machine at our workshop to make sure it can work well.
For the bigger machine, we will install the machine for our customers until it can work well
Q: What's your machine quality guarantee?
A: Usually it's one year. We will choose the world famous brand components to keep our machine in perfect working condition.
Q: Can you instal the machine overseas?How long will it take?
A: YES, we have rich-experienced install team to instal the machine for our customers worldwide.
Q: What's your machine quality guarantee?
A: Usually it's one year. We will choose the world famous brand components to keep our machine in perfect working condition.
Q: Can you instal the machine overseas?How long will it take?
A: YES, we have rich-experienced install team to instal the machine for our customers worldwide.
