Quick Details
-
Positioning Accuracy (mm):
-
0.01 mm
-
Travel (X Axis)(mm):
-
2000 mm
-
Travel (Y Axis)(mm):
-
4000 mm
-
Repeatability (X/Y/Z) (mm):
-
0.01 mm
-
Spindle Motor Power(kW):
-
15kw
-
Place of Origin:
-
Shandong, China
-
Brand Name:
-
MVIPCNC
-
Voltage:
-
220/380/440
-
Dimension(L*W*H):
-
5000*3000*2900mm
-
Power (kW):
-
22
-
Weight (KG):
-
13000
-
Product name:
-
Large size cnc 5 axis router 3d
-
Function:
-
Cutting Engraving Carving Milling
-
Working area:
-
2000*4000mm
-
Spindle:
-
15KW
-
Control system:
-
Taiwan Syntec Controller
-
Motor and driver:
-
Japan Yaskawa Sevor Motor
-
Transmission:
-
Helical Rack Pinion
-
Table Surface:
-
T-slot Working Table
-
Guide rail:
-
HIWIN Square Guide Rail(option PMT. CSK
-
Controller:
-
Synthec Control System
Quick Details
-
Working Table Size(mm):
-
2000×4000
-
Machine Type:
-
CNC Router
-
Range of Spindle Speed(r.p.m):
-
12000 - 24000 rpm
-
Positioning Accuracy (mm):
-
0.01 mm
-
Travel (X Axis)(mm):
-
2000 mm
-
Travel (Y Axis)(mm):
-
4000 mm
-
Repeatability (X/Y/Z) (mm):
-
0.01 mm
-
Spindle Motor Power(kW):
-
15kw
-
Place of Origin:
-
Shandong, China
-
Brand Name:
-
MVIPCNC
-
Voltage:
-
220/380/440
-
Dimension(L*W*H):
-
5000*3000*2900mm
-
Power (kW):
-
22
-
Weight (KG):
-
13000
-
Product name:
-
Large size cnc 5 axis router 3d
-
Function:
-
Cutting Engraving Carving Milling
-
Working area:
-
2000*4000mm
-
Spindle:
-
15KW
-
Control system:
-
Taiwan Syntec Controller
-
Motor and driver:
-
Japan Yaskawa Sevor Motor
-
Transmission:
-
Helical Rack Pinion
-
Table Surface:
-
T-slot Working Table
-
Guide rail:
-
HIWIN Square Guide Rail(option PMT. CSK
-
Controller:
-
Synthec Control System

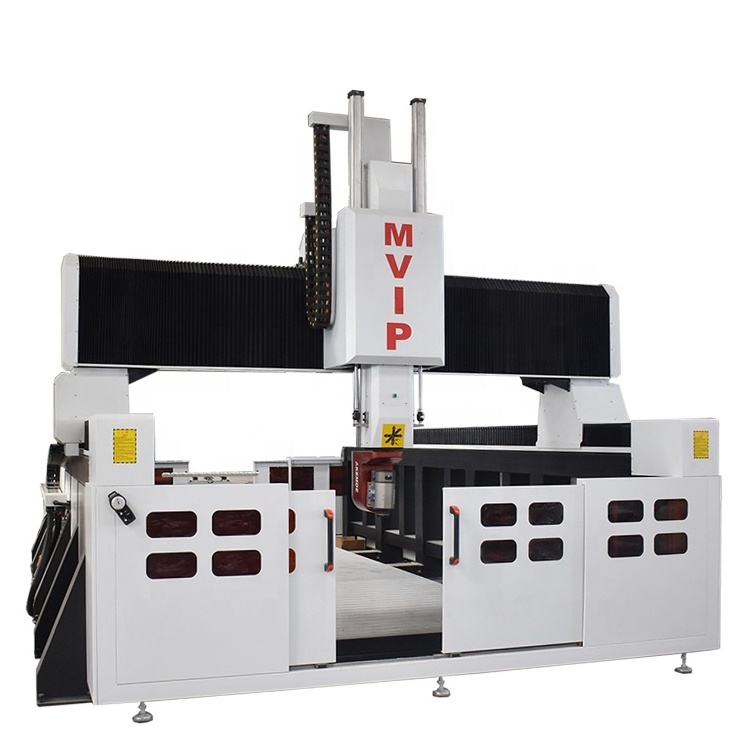

Large size cnc 5 axis router 3d wood foam styrofoam sculpture boat car surfboard carving machine
1. X Y Z B C axis working 5-axis cnc machining center for carving engraving ans milling
2. HITECO or Other brand 5 axis heads are optional parts. Rotating 300 degrees and 120 degrees .
3. Spindle 10kw 11kw and 15kw . Big power and water cooling .
4. Taiwan high accuracy HIWIN guide rails and sliders --dust-proof , good sealing, and small clearance.
5. Working size can be 6000*8000mm, 3000*6000mm, 2000*4000mm etc Z axis 2500mm, 2000mm, and 1200mm .
6. Cast iron or cast steel table , which make the whole machine working more stable .
7. Automatically oil lubrication system on the machine .
8. Yaskawa or Panasonic servo motors on X Y Z B and C axis .
9. X Y axis installed with high accuracy grinding rack and gear . Z axis moving with Ball screw.
10. Taiwan Syntec controller
five axis simultaneously control-Support various types of five-axis compensation-Rotation tool center point feature (RTCP) for high precision processing on surface.
11. Linear tool magazine with 12-16 tools changing automatically.
Rail parallelism measurement
X Y Z axis installed with Taiwan Hiwin guide rails.
The guide rails must be kept parallel, and the error should be kept within 0.01mm.
Five-axis head precision detection rod
B and C axis rotating 110 or 200 degrees.
Every rotation accuracy must be strictly measured.
C axis precision detection
The C axis rotates +-220 degrees or 300 degrees in the horizontal direction. Each rotation angle error is less than 0.03mm
B axis precision detection
B axis rotates+- 110 degrees .
The B-axis must maintain a vertical angle of 90 degrees with the platform.
X Y axis flatness detection
Professional marble testing platform. Detect whether the guide rails of the X and Y axes are running vertically
RTCP detection
Five-axis compensation-Rotation tool center point feature (RTCP) for high precision processing on surface
|
Item -5-axis
|
Specification
|
Parameters
|
|
Working Size
|
X axis working
|
2500mm
|
|
|
Y axis working
|
6000mm
|
|
|
Z axis working
|
1200mm
|
|
|
A axis
|
± 185°
|
|
|
C axis
|
±320°
|
|
Travel Speed
|
X axis
|
45m/min
|
|
|
Y axis
|
45m/min
|
|
|
Z axis
|
15m/min
|
|
|
A axis
|
7000°/min
|
|
|
C axis
|
7000°/min
|
|
Working Speed
|
X axis
|
15-25m／min
|
|
|
Y axis
|
15-25m／min
|
|
|
Z axis
|
3-5 m／min
|
|
|
A axis
|
4000°/min
|
|
|
C axis
|
4000°/min
|
|
Positioning Precision
|
Positioning precision
|
0. 06/300mm
|
|
|
Re- positioning precision
|
0.05/300mm
|
|
Servo Motor
|
X axis
|
850W/1.3KW/1.8KW
|
|
|
Y axis
|
850W/1.3KW/1.8KW
|
|
|
Z axis
|
2.4KW/1.3KW/1.8KW
|
|
|
B axis
|
450W/750W
|
|
|
C axis
|
450W/750W
|
Full-cover with front and back door
Clean environment during working
Strong machine frame for stable working on all materials
Dust proof cover on X Y axis . Guide rails and rack will be longer service life
5-axis working head with HITECO spindle . Low noise and big power
High speed working servo motors from Yaskawa /Panasonic
Scientific and reasonable wiring box, industrial air conditioning cooling and heat dissipation
The machine is equipped with an air storage pressure tank to balance the cylinder pressure and reduce the load on the Z-axis motor
Linear type tool magazine on the back side of the machine. 12-20 pieces of tools can be optional.
Rotation tool center point feature (RTCP) for high precision processing on surface
Wireless handle wheel for machine operation in any place near the machine within 3 meters
Industrial air conditioners provide timely heat dissipation for chassis electrical components, extending the service life of electrical components.
Big power servo motors with Good motor reducer
Optional part of the machine
SPINDLE
CHINA brand 15kw water cooling spidle
5 AXIS HEAD
H type 5 axis head for ligh metal working
Processing of wood, non-ferrous metals, composite materials, epoxy and polyurethane resins, carbon fiber for the manufacture of model kit parts.
