Quick Details
-
Print Dimension:
-
1.8m & 3.2m
-
Place of Origin:
-
Guangdong, China
-
Brand Name:
-
Garros
-
Dimensions(L*W*H):
-
3200 mm x 900mm x 1350 mm
-
Weight:
-
298kgs
-
Ink Type:
-
eco solvent inks
-
Type:
-
Digital Printer
-
Product name:
-

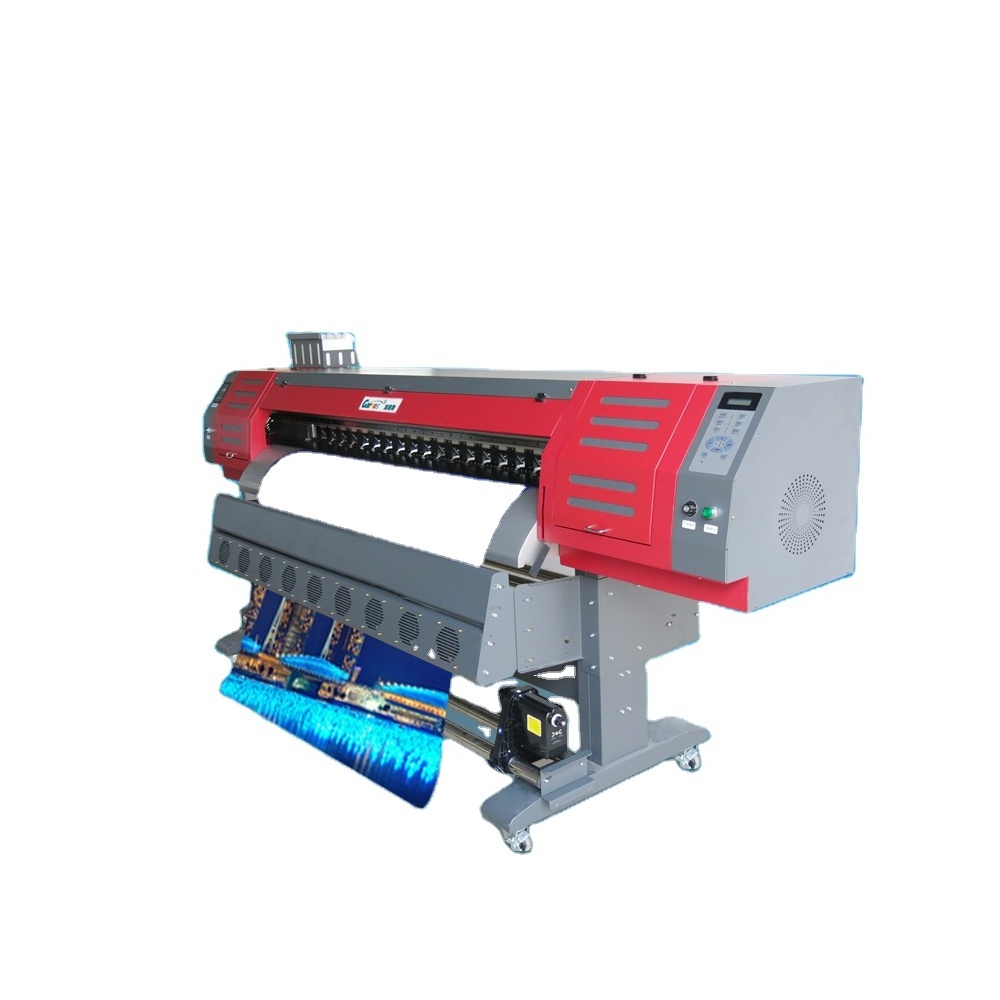

Garros 1.8m eco solvent printer
-
Number of printhead:
-
1pcs/2pcs DX5 / Dx7 print head
-
printing width:
-
1800mm
-
Resolution/Ink droplet size:
-
1440dpi (Max)/1.5 - 27 pl
-
Maximum Print speed:
-
32㎡/h
-
Printing Color:
-
eco solvent/Sublimation Ink, 4colors : Cyan, Magenta, Yellow, Black
-
Application:
-
Flex,vinyl, wallpaper, sticker,mesh,canvas,polyester etc
-
Operating System:
-
Windows XP, Win7; best dx7/dx5 head eco solvent printer
-
Power:
-
AC_110V/ 220V, 50/ 60Hz
-
Certification:
-
CE , S G S
Quick Details
-
Plate Type:
-
roll to roll inkjet printer,vinyl cutter
-
Color & Page:
-
Multicolor
-
Voltage:
-
220V 50 Hz, 220AC(±10%)
-
Print Dimension:
-
1.8m & 3.2m
-
Place of Origin:
-
Guangdong, China
-
Brand Name:
-
Garros
-
Dimensions(L*W*H):
-
3200 mm x 900mm x 1350 mm
-
Weight:
-
298kgs
-
Ink Type:
-
eco solvent inks
-
Type:
-
Digital Printer
-
Product name:
-
Garros 1.8m eco solvent printer
-
Number of printhead:
-
1pcs/2pcs DX5 / Dx7 print head
-
printing width:
-
1800mm
-
Resolution/Ink droplet size:
-
1440dpi (Max)/1.5 - 27 pl
-
Maximum Print speed:
-
32㎡/h
-
Printing Color:
-
eco solvent/Sublimation Ink, 4colors : Cyan, Magenta, Yellow, Black
-
Application:
-
Flex,vinyl, wallpaper, sticker,mesh,canvas,polyester etc
-
Operating System:
-
Windows XP, Win7; best dx7/dx5 head eco solvent printer
-
Power:
-
AC_110V/ 220V, 50/ 60Hz
-
Certification:
-
CE , S G S
promotion eco solvent plotter dx7/plotter flyer oil-based inkjet printer machine
promotion eco solvent plotter dx7/plotter flyer oil-based inkjet printer machine
|
Product Model |
RT-180 1 |
RT-180 2 |
RT -320 2 |
||
|
Number of printhead |
1 pcs DX 5 |
2 pcs DX 5 |
2 pcs DX 5 |
||
|
Printing width |
1800mm |
3200mm |
|||
|
Speed |
3Pass |
1 5 m2/ hour |
3 0 m2/ hour |
37m2/hour |
|
|
4Pass |
1 2 m2/ hour |
21 m2/ hour |
29.5m2/hour |
||
|
6Pass |
8 m2/ hour |
15 m2/ hour |
29m2/hour |
||
|
Printer Head height |
Adjustable 2~5mm |
||||
|
Resolution/Ink droplet size |
1440dpi (Max)/ 1.5-27 pl |
||||
|
Heating System |
The heaters for front and center platform separately. PID temperature control |
||||
|
Temperature |
Temperature range: room temperature~80℃ |
||||
|
Drying system |
External fan |
||||
|
Media
|
Width: 1820mm |
Width: 3220mm |
|||
|
Media feeding mode: Automatic feeder |
|||||
|
Automatic take up |
|||||
|
Flex Banner, Knife Coated substrate, Double side printing banner PVC, Vinyl, One way vision, Mesh, tarpaulin,Reflective Banner, Reflective Vinyl, Eco Solvent Media |
|||||
|
Ink |
Eco Solvent Ink, Sublimation ink,Water based dye,Pigment,UV |
||||
|
RIP software |
Maintop Rip Software .Photoprint,Wasatch |
||||
|
Control Software |
Control Software MT Control Software (Cn/En) |
||||
|
Interface |
USB 3.0 |
||||
|
Voltage |
AC 220-240V 50/60HZ or AC 110-120V 50/60HZ |
||||
|
Working Environment
|
Ambient temperature: 20-25℃ |
||||
|
Humidity: 40~70 % Non-condensing |
|||||
|
Dimension/Weight |
3200*900*1350mm(l*w*h)/298kg |
4576*970*1500mm(l*w*h)/800k
|
|||
|
Packing size |
3330*760*1020mm(l*w*h)/350kg |
4800*1100*1700mm(l*w*h)/830kg
|
|||
About Amazing Feature:
1. The selection of imported THK rails and double original Leadshine Motors.
a) The choice of the 3.2 m width of the machine will be used achieve high-speed silent 20mm imports THK rails,dual slider,more accurate,long life,lower noise;
b) Using two original Leadshine Motor control,more stable quality,better efficiency
2. Lower aluminum frame
Frame is widened so that the printing process is not the slightest shaking,protect the ink droplet accuracy.
3. High resolution
With six or more variable droplet printing technology,up to 2880dpi.
4. Standard double printing configurations(with Original Import DX5/DX7 Print Head)
It meets higher print resolution and faster print speed of more demand.
5. High technolohy
Using the VSDT variable droplet technology,the smallest drop 3.5PL,Maximum 27PL,embodies the perfect print quality.
6. Wide roller
It is widen to 65mm,for large-format print providesa reliable go material accuracy,whether before or after,left or right.both are about no less.
7. High print speed
The maximum speed of up to 32, and will not break the use of bio-fiber,glass fiber.
8. Cassette type large ink supply system
External continuous ink supply large programs can be maintained longer work with no need frequently add ink.
9. All-aluminum dual power take up system
It ensure the entire volume of material bearing mind.
10. The machine can be upgraded to support on demand LED UV roll-to-roll printing equipment
About Wide Application:
1) For advertisement:
a. Outdoor / Indoor Advertising PVC flex banner
b. Outdoor / indoor Car sticker
c. Adhesive vinyl
d. One way vision vinyl
e. Reflective film
f. Wall paper
g. Mesh / Canvas
h. Transparent films
i. Ceiling Mantle
j. Poster Paper/ PP/Photo papers
2) For fabrics:
a. 100% polyester
Fabrics ( polyester canvas, polyester bags, polyester bed sheets etc).
b. Fashion apparel, clothing accessories(scarves,ties etc)
c. Sportswear and swimwear fabrics, Home Textile Fabrics(curtains, bed sheets, towels, table cloths and furniture cloth)
d. T-shirts and specialty textiles; wall decoration; umbrellas, bags, shoes, hats, toys, ribbon, etc; everything else in textiles for the carrier to show a pattern of items .
About Easy Operation:
How to print?
Easy operation,no need to fix color and other complicative process
for fabric textile
.
Everyone can make it.surely our professional technicians give you free training and techinical support through the internet or video.
For outdoor&indoor advertising materials
1) Prepare the picture and put it on the computer connected with printer.
2) Directly print outdoor &indoor advertising materials with eco solvent printer.
3) Then you have finished.The beautiful picture is shown on your materials.
For fabric textile
1) Prepare the picture and put it on the computer connected with the printer.
2) Directly print the sublimation paper,then tranfer to the fabric textile by using hot pressing machine (it takes only 30 seconds for this process)
3) Finally,it puts out the image and you will see your beautiful picture on your fabric textile.
