Quick Details
-
Input:
-
SD input
-
Stream output:
-
IPTV
-
Resolution:
-
24-bit
-
Output:
-
IP AND ASI OUTPUT
-
Bit-rate:
-
1Mbps~5Mbps each channel
-
Rate Control:
-
CBR/VBR
-
GOP Structure:
-
IPP (P frame is adjustable)
-
Aspect Ratio:
-
4:3; 16:9
-
encoding:
-
MPEG-4 H.264
-
Sampling rate:
-
48KHz
Quick Details
-
Place of Origin:
-
Shandong, China
-
Brand Name:
-
yatai
-
Model Number:
-
YT3226SA
-
Input:
-
SD input
-
Stream output:
-
IPTV
-
Resolution:
-
24-bit
-
Output:
-
IP AND ASI OUTPUT
-
Bit-rate:
-
1Mbps~5Mbps each channel
-
Rate Control:
-
CBR/VBR
-
GOP Structure:
-
IPP (P frame is adjustable)
-
Aspect Ratio:
-
4:3; 16:9
-
encoding:
-
MPEG-4 H.264
-
Sampling rate:
-
48KHz
Key features

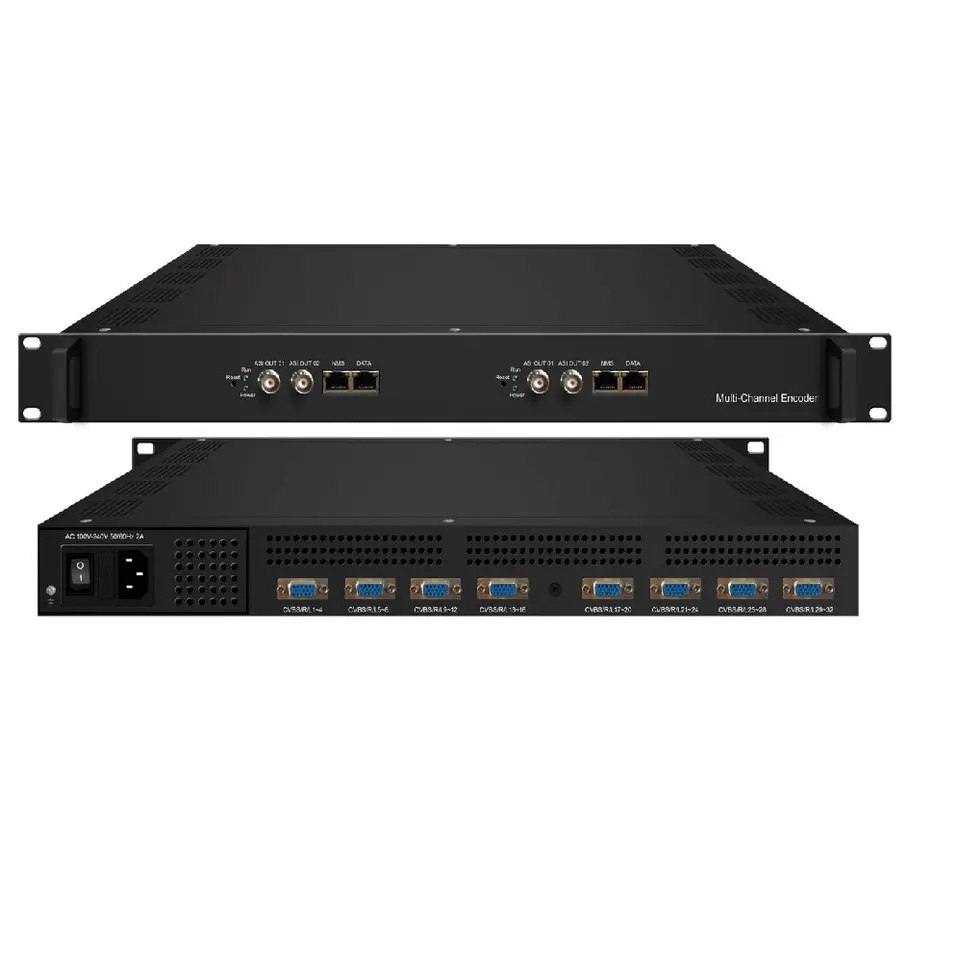

16/32 ×CVBS video inputs with MPEG4 AVC/H.264 Video encoding
Supports PAL (PAL-B,D,G,H,I) and NTSC (NTSC-M,J) SD video formats
S upport MPEG1 Layer II Audio encoding and support audio gain adjustment
Support 1 MPTS out through 2 ASI output ports
Support IP output over UDP and RTP
Support Null PKT Filter (only for MPTS, SPTS output without Null PKT)
Support Logo, Caption, QRcode insertion (Language Supported: English, for more languages please consult us …)
Real-time effective encoding output bit-rate monitoring
Control via web management, and easy u pdates via web
Modular design, 1U chassis support up to 2 modules
Specifications
|
Input |
16/ 32 CVBS inputs , DB15-To-RCA interface |
||
|
Video |
Resolution |
720×576i (PAL-B,D,G,H,I) , 720×480i (NTSC-M,J) |
|
|
|
Encoding |
MPEG4 AVC/H.264(HP/MP/BP) |
|
|
|
Bit-rate |
1 Mbps~ 5 Mbps each channel |
|
|
|
Rate Control |
CBR /VBR |
|
|
|
GOP Structure |
I PP (P frame is adjustable) |
|
|
|
Aspect Ratio |
4:3; 16:9 |
|
|
Audio |
Encoding |
MPEG-1 Layer 2 |
|
|
|
Sampling rate |
48KHz |
|
|
|
Resolution |
24-bit |
|
|
|
Audio Gain |
0-255 adjustable |
|
|
|
Bit-rate |
64/ 128/192 / 224 / 256 / 320 / 384 Kbps each channel |
|
|
Stream output |
IP (1*MPTS and 16/32 *SPTS) output over UDP and RTP, 1000 Base-T Ethernet interface (Multicast and unicast) |
||
|
|
1 MPTS output through 2 ASI output ports (one for back up), BNC interface |
||
|
System function |
N etwork management (WEB) |
||
|
|
English language |
||
|
|
Ethernet software upgrade |
||
|
Miscellaneous |
Dimension(W×L×H) |
4 82 mm× 328 mm×44mm |
|
|
|
Environment |
0~45 ℃ (work) ; -20~80 ℃ ( Storage ) |
|
|
|
Power requirements |
AC 110V± 10%, 50/60Hz, AC 220 ± 10%, 50/60Hz |
|
