Quick Details
-
Row Distance(mm):
-
500 - 600 mm
-
Place of Origin:
-
Shandong, China, Shandong of China
-
Brand Name:
-
Gold Dafeng
-
Dimension(L*W*H):
-
7120*2930*3400mm
-
Weight:
-
9120 KG
-
Model:
-
4YZP-4
-
Function:
-
Corn harvesting
-
Productivity:
-
0.4-0.7 hm²/h
-
Power:
-
240HP
-
Certification:
-
CE,ISO9001
-
Grain tank:
-
2.8m³
-
Ground clearance:
-
260mm
Quick Details
-
Number of Rows:
-
4
-
Working Width(mm):
-
2550 mm
-
Tractor Power(HP):
-
240 - 260 HP
-
Row Distance(mm):
-
500 - 600 mm
-
Place of Origin:
-
Shandong, China, Shandong of China
-
Brand Name:
-
Gold Dafeng
-
Dimension(L*W*H):
-
7120*2930*3400mm
-
Weight:
-
9120 KG
-
Model:
-
4YZP-4
-
Function:
-
Corn harvesting
-
Productivity:
-
0.4-0.7 hm²/h
-
Power:
-
240HP
-
Certification:
-
CE,ISO9001
-
Grain tank:
-
2.8m³
-
Ground clearance:
-
260mm

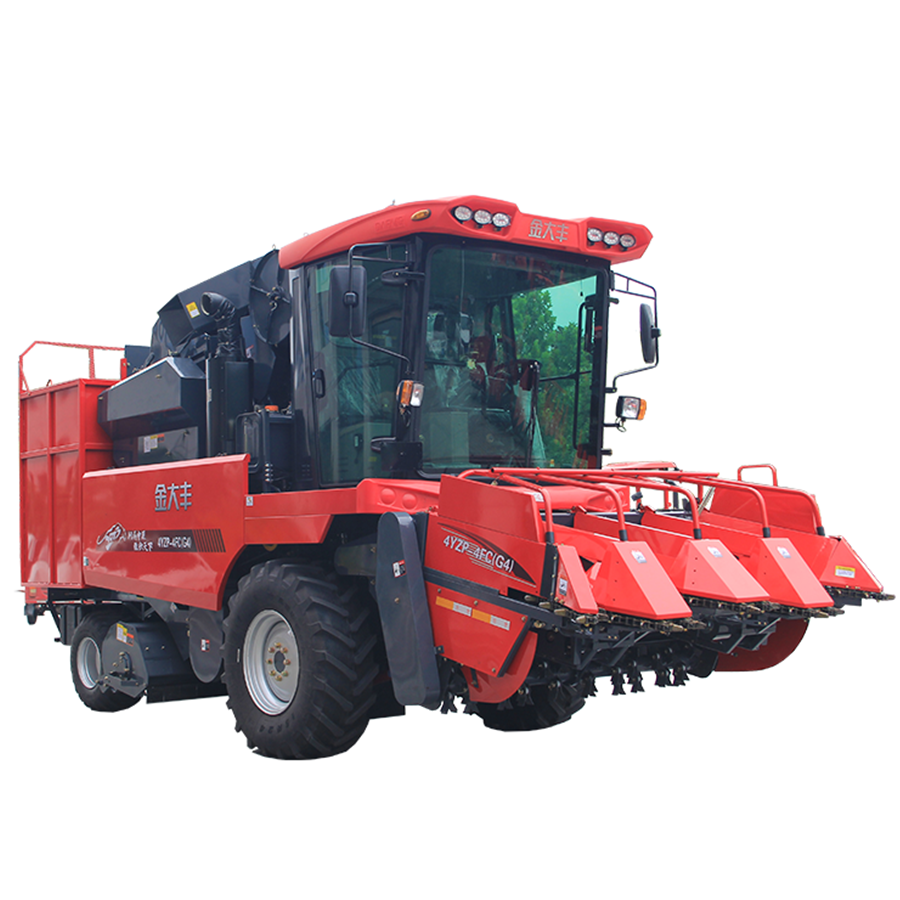

"Gold Dafeng"4YZP-4 type self-propelled corn harvester, the entire machine structure is compact, the turning radius is small; hydraulic driving, one-button operation, flexible and mobile turning and transferring fields. The new non-row roller header is suitable for different maturities of corn, and the adaptability is wide.
|
Model
|
4YZP-3
|
4YZP-4
|
4YZP-5
|
|
Power(HP)
|
Yuchai 175
|
Commins 240
|
Weichai 220
|
|
Drive type
|
2WD(Hydraulic)
|
2WD(Hydraulic)
|
4WD(Mechanical+
Hydraumatic)
|
|
Header type
|
Roller type
|
Roller type
|
Plate type
|
|
Unloading type
|
Hydraulic
|
Hydraulic
|
Hydraulic
|
|
Rows
|
3
|
4
|
5
|
|
Row distance(mm)
|
600
|
550/600
|
560/650
|
|
Available row distance(mm)
|
550-650
|
500-600/550-650
|
510-610/600-700
|
|
Working Width(mm)
|
1900±50
|
2550
|
3340±50
|
|
Max unloading height(mm)
|
2350
|
2800
|
3100
|
|
Mini clearance(mm)
|
260
|
260
|
390
|
|
Straw returning width(mm)
|
1800
|
2300/2500
|
2800/3100
|
|
Peeling roller Qty(unit)
|
4
|
5
|
6
|
|
Grain tank(m³)
|
2.5
|
2.8
|
6
|
|
Fuel tank capacity(L)
|
220
|
280
|
350
|
|
Productivity(hm²/h)
|
0.3-0.6
|
0.4-0.7
|
0.5-0.8
|
|
Weight(kg)
|
7110
|
9120
|
12120
|
|
Dimensions(L×W×H)(mm)
|
6600*2350*3400
|
7120*2930*3400
|
9700*3400*3750
|
1.Strong power:
The 240-horsepower Cummins engine,advanced American technology, is economic and durable. The engine has a tight cylinder clearance, small vibration, and low noise. The 260-horsepower Yuchai high-efficiency power is optional;
2.Comfortable operation:
one pump+one motor hydraulic driving, original built-in air conditioning. Multifunctional electric control handle, pillar-type vehicle instrument, display vehicle data, convenient for drivers to read. Reversing gear automatically opens the reclamation machine, making driving safer;
3.Strong chassis:
The frame uses 16Mn alloyed material, triangular support beam structure, anti-shock, and impact-resistant. The drive wheels use belt tires with stronger grip. The wide-guide wheel has good anti-sink effect;
4.High-efficiency operation:
The header row spacing is 600mm, the bilateral chain transmission, the side row angle can be adjusted, and the application range is wide; The 81Omm wide corn elevator, the stronger corn lifting capacity, and the 20-roller high-efficiency peeling machine, with high peeling rate;
5.Convenient maintenance:
The transmission chain uses an automatic lubrication device, and the peeling machine and fan bearings use a centralized oiling method, saving time and effort;
6.Intelligent technology:
After scanning and registering the mobile APP, you can communicate with the harvester through mobile Bluetooth to perform intelligent operation and fault diagnosis.
1.How do we ensure quality?
Using world-renowned engines and components ensures a long service life, and all structural parts are produced by ourselves. Each machine is carefully tested before being sent to customers.
2. What about our after-sales service?
We have a 1-year long-term warranty for core components and a 24-hour after-sales service team. Our technicians can go to your place to provide service for you.
3.What can you buy from us?
New tractors, harvesters, all machine accessories and all machine parts, second-hand agricultural machinery.
4. What services can we provide?
We can provide OEM customization, producing machines based on the drawings you provide. If you visit our factory, we can provide a good reception. If you come to China for procurement, we can act as your guide.If you need agricultural machinery accessories, we can help you procure them.
